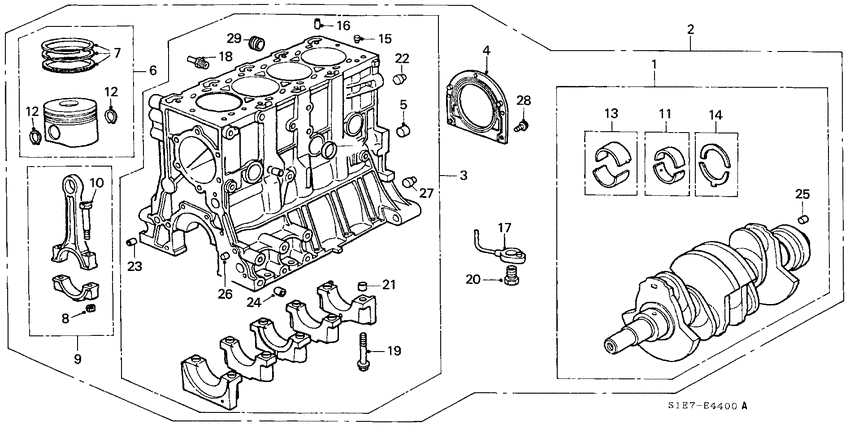

| 06133-P5T-G01 |
Crankshaft kit |
Cylinder block/piston (DIESEL) |
| 10002-P5T-G00 |
General assy. - CYLINDER BLOCK |
Cylinder block/piston (DIESEL) |
| 11000-P5T-G00 |
Block assy - CYLINDER |
Cylinder block/piston (DIESEL) |
| 11300-P5T-G00 |
Cover assy. - R. SIDE |
Cylinder block/piston (DIESEL) |
| 11301-P5T-G01 |
Plug - OIL PRESSURE |
Cylinder block/piston (DIESEL) |
| 13000-P5T-G00 |
Piston assy. |
Cylinder block/piston (DIESEL) |
| 13011-P5T-G00 |
Ring set - PISTON |
Cylinder block/piston (DIESEL) |
| 13205-P5T-G00 |
Nut - CONNECTING ROD |
Cylinder block/piston (DIESEL) |
| 13210-P5T-G01 |
Rod comp - CONNECTING |
Cylinder block/piston (DIESEL) |
| 13213-P5T-G01 |
Bolt - CONNECTING ROD |
Cylinder block/piston (DIESEL) |
| 13220-P5T-G01 |
Bearing set - CONNECTING ROD |
Cylinder block/piston (DIESEL) |
| 13312-P5T-G00 |
Circlip - PISTON |
Cylinder block/piston (DIESEL) |
| 13320-P5T-G00 |
Bearing set - MAIN |
Cylinder block/piston (DIESEL) |
| 13330-P5T-G00 |
Bearing set - THRUST |
Cylinder block/piston (DIESEL) |
| 15140-P5T-G00 |
Orifice assy - OIL CONTROL |
Cylinder block/piston (DIESEL) |
| 15141-P5T-G00 |
Orifice assy - OIL CONTROL |
Cylinder block/piston (DIESEL) |
| 15280-P5T-G00 |
Jet assy - OIL |
Cylinder block/piston (DIESEL) |
| 19517-P5T-G01 |
Joint - TUBE |
Cylinder block/piston (DIESEL) |
| 90001-P5T-G00 |
Bolt |
Cylinder block/piston (DIESEL) |
| 90001-PDD-X00 |
Plug - COOLANT DRAIN |
Cylinder block/piston (DIESEL) |
| 90004-P5T-G00 |
Bolt |
Cylinder block/piston (DIESEL) |
| 90701-P5T-G00 |
Dowel pin |
Cylinder block/piston (DIESEL) |
| 90702-P5T-G00 |
Dowel pin |
Cylinder block/piston (DIESEL) |
| 90703-P5T-G00 |
Dowel pin |
Cylinder block/piston (DIESEL) |
| 90704-P5T-G00 |
Dowel pin |
Cylinder block/piston (DIESEL) |
| 90705-P5T-G00 |
Dowel pin |
Cylinder block/piston (DIESEL) |
| 90707-P5T-G00 |
Ring - DOWEL |
Cylinder block/piston (DIESEL) |
| 90801-P5T-G00 |
Plug - CORE WATER |
Cylinder block/piston (DIESEL) |
