| 01550-06303-000 |
Bolt (6x30) - Bolt, head cover l:30 |

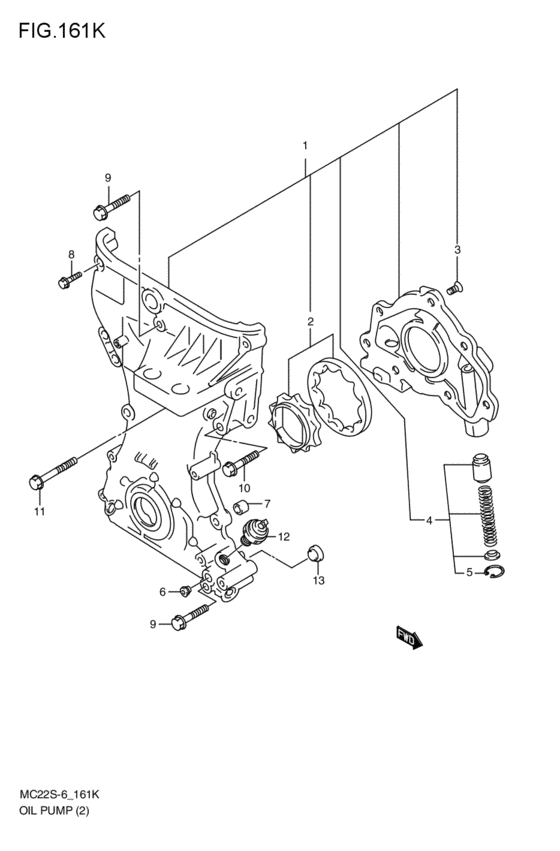

Oil pump (TURBO; 2003-04-01~2003-08-01) |
| 01550-0630A-000 |
Bolt |
Oil pump (TURBO; 2003-04-01~2003-08-01) |
| 01550-06503-000 |
Bolt |
Oil pump (TURBO; 2003-04-01~2003-08-01) |
| 01550-0650A-000 |
Bolt - Bolt (6x50) |
Oil pump (TURBO; 2003-04-01~2003-08-01) |
| 01550-0650B-000 |
Bolt |
Oil pump (TURBO; 2003-04-01~2003-08-01) |
| 01550-08403-000 |
Bolt |
Oil pump (TURBO; 2003-04-01~2003-08-01) |
| 01550-0840A-000 |
Bolt |
Oil pump (TURBO; 2003-04-01~2003-08-01) |
| 01550-0840B-000 |
Bolt |
Oil pump (TURBO; 2003-04-01~2003-08-01) |
| 02122-06163-000 |
Screw |
Oil pump (TURBO; 2003-04-01~2003-08-01) |
| 02122-0616A-000 |
SCREW |
Oil pump (TURBO; 2003-04-01~2003-08-01) |
| 02122-0616B-000 |
SCREW - Screw, intake pipe |
Oil pump (TURBO; 2003-04-01~2003-08-01) |
| 04211-09109-000 |
PIN - Knock pin |
Oil pump (TURBO; 2003-04-01~2003-08-01) |
| 08331-41156-000 |
Circlip |
Oil pump (TURBO; 2003-04-01~2003-08-01) |
| 08331-4115A-000 |
CIRCLIP |
Oil pump (TURBO; 2003-04-01~2003-08-01) |
| 09103-08388-000 |
BOLT(8X40) - Bolt, rr final gr case |
Oil pump (TURBO; 2003-04-01~2003-08-01) |
| 09246-05006-000 |
PLUG(1/8PT,H:5.5) |
Oil pump (TURBO; 2003-04-01~2003-08-01) |
| 16100-78G02-000 |
Pump assy,oil |
Oil pump (TURBO; 2003-04-01~2003-08-01) |
| 16100-78G03-000 |
PUMP ASSY,OIL |
Oil pump (TURBO; 2003-04-01~2003-08-01) |
| 16130-70B01-000 |
ROTOR SET,OIL PUMP - Rotor set, oil pump |
Oil pump (TURBO; 2003-04-01~2003-08-01) |
| 16150-60A10-000 |
Valve set, oil pump relief |
Oil pump (TURBO; 2003-04-01~2003-08-01) |
| 16150-60A20-000 |
VALVE SET,OIL PUMP RELIEF |
Oil pump (TURBO; 2003-04-01~2003-08-01) |
| 16210-73H00-000 |
フィルタ,オイルギャラリ |
Oil pump (TURBO; 2003-04-01~2003-08-01) |
| 16210-73H01-000 |
FILTER,OIL GALLERY |
Oil pump (TURBO; 2003-04-01~2003-08-01) |
| 37820-82001-000 |
Switch assy, oil pressure |
Oil pump (TURBO; 2003-04-01~2003-08-01) |
| 37820-820P0-000 |
SWITCH ASSY,OIL PRESSURE |
Oil pump (TURBO; 2003-04-01~2003-08-01) |
