Search › Model › MC22S

MC22S

Suzuki WAGON-R-PLUS-SOLIO-WIDE · 2000 · 2,594 parts · 129 categories

2,594 items

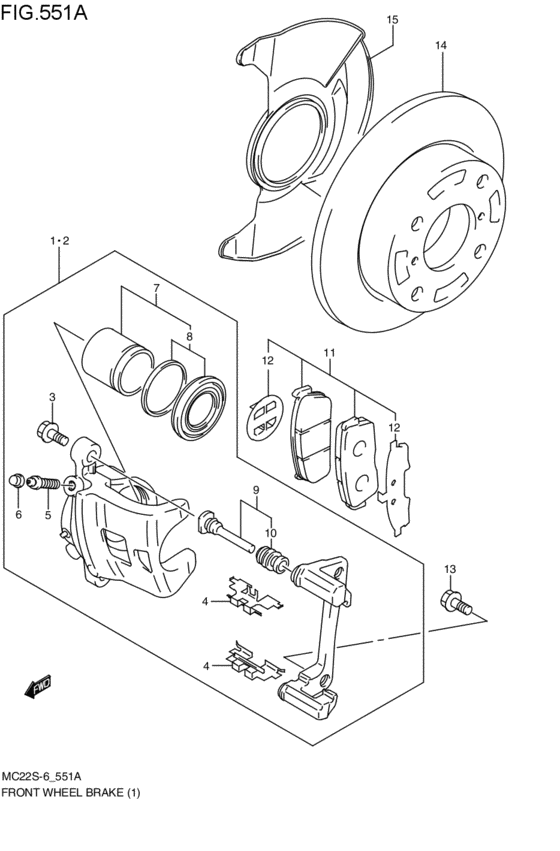

front wheel brakes (4V; 2003-04-01~2003-08-01) 24

#	OEM	Part name
1	55101-73H01-999	キャリパ,フロントブレーキ,ライト
1	55101-72M00-999	CALIPER,FR BRAKE,R
2	55102-73H01-999	キャリパ,フロントブレーキ,レフト
2	55102-72M00-999	CALIPER,FR BRAKE,L
3	55206-78451-000	Bolt, pin
3	55206-78452-000	BOLT,PIN
4	55234-76G00-000	SPRING,PAD
5	55473-82030-000	Plug, bleeder - Plug, bleeder (m10x1.0)
5	55151-78451-000	PLUG,BLEEDER
6	55156-66310-000	CAP,BLEEDER PLUG - Cap, bleeder plug
7	55840-76G00-000	PISTON / SEAL SET
7	55840-76G01-000	PISTON / SEAL SET
8	55830-76G00-000	SEAL SET,PISTON
8	55830-76G01-000	SEAL SET,PISTON
9	55850-76G00-000	PIN / BOOT SET
9	55850-76G01-000	PIN / BOOT SET
10	55201-60A00-000	BOOT,PIN
11	55810-76G03-000	Pad set,disc brake
11	55810-76G20-000	PAD SET,DISC BRAKE
12	55820-76G01-000	SHIM SET,ANTI NOISE
13	09117-12006-000	BOLT(12X27)
14	55311-67H10-000	ディスク,フロントブレーキ
14	55311-67H11-000	DISC,FR BRAKE
15	55321-76G10-000	COVER,FR BRAKE DISC DUST

OEM	Part name	Category
09117-12006-000	BOLT(12X27)	front wheel brakes (4V; 2003-04-01~2003-08-01)
55101-72M00-999	CALIPER,FR BRAKE,R	front wheel brakes (4V; 2003-04-01~2003-08-01)
55101-73H01-999	キャリパ,フロントブレーキ,ライト	front wheel brakes (4V; 2003-04-01~2003-08-01)
55102-72M00-999	CALIPER,FR BRAKE,L	front wheel brakes (4V; 2003-04-01~2003-08-01)
55102-73H01-999	キャリパ,フロントブレーキ,レフト	front wheel brakes (4V; 2003-04-01~2003-08-01)
55151-78451-000	PLUG,BLEEDER	front wheel brakes (4V; 2003-04-01~2003-08-01)
55156-66310-000	CAP,BLEEDER PLUG - Cap, bleeder plug	front wheel brakes (4V; 2003-04-01~2003-08-01)
55201-60A00-000	BOOT,PIN	front wheel brakes (4V; 2003-04-01~2003-08-01)
55206-78451-000	Bolt, pin	front wheel brakes (4V; 2003-04-01~2003-08-01)
55206-78452-000	BOLT,PIN	front wheel brakes (4V; 2003-04-01~2003-08-01)
55234-76G00-000	SPRING,PAD	front wheel brakes (4V; 2003-04-01~2003-08-01)
55311-67H10-000	ディスク,フロントブレーキ	front wheel brakes (4V; 2003-04-01~2003-08-01)
55311-67H11-000	DISC,FR BRAKE	front wheel brakes (4V; 2003-04-01~2003-08-01)
55321-76G10-000	COVER,FR BRAKE DISC DUST	front wheel brakes (4V; 2003-04-01~2003-08-01)
55473-82030-000	Plug, bleeder - Plug, bleeder (m10x1.0)	front wheel brakes (4V; 2003-04-01~2003-08-01)
55810-76G03-000	Pad set,disc brake	front wheel brakes (4V; 2003-04-01~2003-08-01)
55810-76G20-000	PAD SET,DISC BRAKE	front wheel brakes (4V; 2003-04-01~2003-08-01)
55820-76G01-000	SHIM SET,ANTI NOISE	front wheel brakes (4V; 2003-04-01~2003-08-01)
55830-76G00-000	SEAL SET,PISTON	front wheel brakes (4V; 2003-04-01~2003-08-01)
55830-76G01-000	SEAL SET,PISTON	front wheel brakes (4V; 2003-04-01~2003-08-01)
55840-76G00-000	PISTON / SEAL SET	front wheel brakes (4V; 2003-04-01~2003-08-01)
55840-76G01-000	PISTON / SEAL SET	front wheel brakes (4V; 2003-04-01~2003-08-01)
55850-76G00-000	PIN / BOOT SET	front wheel brakes (4V; 2003-04-01~2003-08-01)
55850-76G01-000	PIN / BOOT SET	front wheel brakes (4V; 2003-04-01~2003-08-01)
