MC22S

Suzuki WAGON-R-PLUS-SOLIO-WIDE · 2000 · 2,594 parts · 129 categories

2,594 items

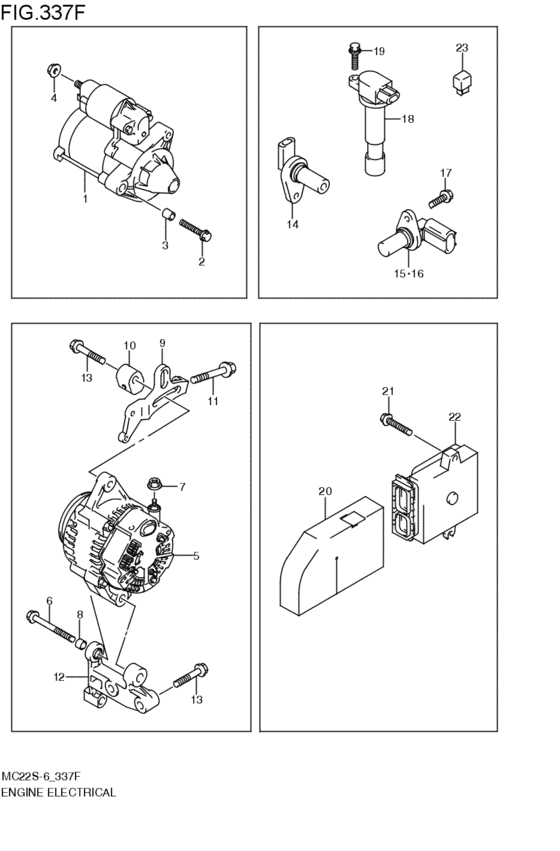

engine electrical (2003-04-01~2003-08-01) 52

#	OEM	Part name
1	31100-70B22-000	Motor assy, starting
1	31100-76G10-000	MOTOR ASSY,STARTING
2	01550-08403-000	Bolt
2	01550-0840B-000	Bolt
2	01550-0840A-000	Bolt
3	04211-11129-000	PIN
4	08316-10083-000	Nut
4	08316-1008B-000	NUT
5	31400-73H00-000	ジェネレータアッシ
5	31400-73H02-000	GENERATOR ASSY
5	31400-75F02-000	Generator assy
5	31400-75F03-000	GENERATOR ASSY
6	01550-10853-000	Bolt
6	01550-1085A-000	Bolt
7	08316-10063-000	Nut
7	08316-1006B-000	NUT
8	11555-60G00-000	Bush, generator
8	11555-60G01-000	BUSH
9	11561-84H00-000	Arm,gen belt adjusting
9	11561-84H01-000	ARM,GENERATOR BELT ADJUST
10	11562-84H00-000	ADJUSTER,GENERATOR
11	11563-85K00-000	BOLT,GEN BELT ADJUSTING
12	11565-84H00-000	BRACKET,GENERATOR LOWER
14	33220-76G30-000	SENSOR ASSY,CAM POSITION
15	33220-76G02-000	SENSOR ASSY,CAM POSITION - Sensor, cam position
17	01550-06163-000	Bolt
17	01550-0616B-000	Bolt
17	01550-0616A-000	Bolt
18	33400-76G01-000	コイルアッシ,イグニツシヨン(DENSO)
18	33400-85K10-000	COIL ASSY,IGNITION DE
18	33400-76G11-000	Coil assy, ignition
19	09135-06024-000	BOLT(6X23)
20	33925-76F00-000	COVER,EPI CONT
21	02162-06253-000	Bolt
21	02162-0625A-000	SCREW
22	33920-83HF0-000	コントローラアッシ,インジェクション/AT/エアコン
22	33920-84FJ2-000	コントローラアッシ,インジェクション/AT/エアコン
22	33920-83HA0-000	コントローラアッシ,インジェクション/AT/エアコン
22	33920-83HA1-000	コントローラアッシ,インジェクション/エアコン
22	33920-83H10-000	コントローラアッシ,インジェクション/AT/エアコン
23	33926-76GA0-000	RESISTOR,IGT NO.10
23	33926-76GB0-000	RESISTOR,IGT NO.11
23	33926-76G01-000	RESISTOR,IGT NO.N
23	33926-76G10-000	RESISTOR,IGT NO.1
23	33926-76G20-000	RESISTOR,IGT NO.2
23	33926-76G30-000	RESISTOR,IGT NO.3
23	33926-76G40-000	RESISTOR,IGT NO.4
23	33926-76G50-000	RESISTOR,IGT NO.5
23	33926-76G60-000	RESISTOR,IGT NO.6
23	33926-76G70-000	RESISTOR,IGT NO.7
23	33926-76G80-000	RESISTOR,IGT NO.8
23	33926-76G90-000	RESISTOR,IGT NO.9

OEM	Part name	Category
01550-06163-000	Bolt	engine electrical (2003-04-01~2003-08-01)
01550-0616A-000	Bolt	engine electrical (2003-04-01~2003-08-01)
01550-0616B-000	Bolt	engine electrical (2003-04-01~2003-08-01)
01550-08403-000	Bolt	engine electrical (2003-04-01~2003-08-01)
01550-0840A-000	Bolt	engine electrical (2003-04-01~2003-08-01)
01550-0840B-000	Bolt	engine electrical (2003-04-01~2003-08-01)
01550-10853-000	Bolt	engine electrical (2003-04-01~2003-08-01)
01550-1085A-000	Bolt	engine electrical (2003-04-01~2003-08-01)
02162-06253-000	Bolt	engine electrical (2003-04-01~2003-08-01)
02162-0625A-000	SCREW	engine electrical (2003-04-01~2003-08-01)
04211-11129-000	PIN	engine electrical (2003-04-01~2003-08-01)
08316-10063-000	Nut	engine electrical (2003-04-01~2003-08-01)
08316-1006B-000	NUT	engine electrical (2003-04-01~2003-08-01)
08316-10083-000	Nut	engine electrical (2003-04-01~2003-08-01)
08316-1008B-000	NUT	engine electrical (2003-04-01~2003-08-01)
09135-06024-000	BOLT(6X23)	engine electrical (2003-04-01~2003-08-01)
11555-60G00-000	Bush, generator	engine electrical (2003-04-01~2003-08-01)
11555-60G01-000	BUSH	engine electrical (2003-04-01~2003-08-01)
11561-84H00-000	Arm,gen belt adjusting	engine electrical (2003-04-01~2003-08-01)
11561-84H01-000	ARM,GENERATOR BELT ADJUST	engine electrical (2003-04-01~2003-08-01)
11562-84H00-000	ADJUSTER,GENERATOR	engine electrical (2003-04-01~2003-08-01)
11563-85K00-000	BOLT,GEN BELT ADJUSTING	engine electrical (2003-04-01~2003-08-01)
11565-84H00-000	BRACKET,GENERATOR LOWER	engine electrical (2003-04-01~2003-08-01)
31100-70B22-000	Motor assy, starting	engine electrical (2003-04-01~2003-08-01)
31100-76G10-000	MOTOR ASSY,STARTING	engine electrical (2003-04-01~2003-08-01)
31400-73H00-000	ジェネレータアッシ	engine electrical (2003-04-01~2003-08-01)
31400-73H02-000	GENERATOR ASSY	engine electrical (2003-04-01~2003-08-01)
31400-75F02-000	Generator assy	engine electrical (2003-04-01~2003-08-01)
31400-75F03-000	GENERATOR ASSY	engine electrical (2003-04-01~2003-08-01)
33220-76G02-000	SENSOR ASSY,CAM POSITION - Sensor, cam position	engine electrical (2003-04-01~2003-08-01)
33220-76G30-000	SENSOR ASSY,CAM POSITION	engine electrical (2003-04-01~2003-08-01)
33400-76G01-000	コイルアッシ,イグニツシヨン(DENSO)	engine electrical (2003-04-01~2003-08-01)
33400-76G11-000	Coil assy, ignition	engine electrical (2003-04-01~2003-08-01)
33400-85K10-000	COIL ASSY,IGNITION DE	engine electrical (2003-04-01~2003-08-01)
33920-83H10-000	コントローラアッシ,インジェクション/AT/エアコン	engine electrical (2003-04-01~2003-08-01)
33920-83HA0-000	コントローラアッシ,インジェクション/AT/エアコン	engine electrical (2003-04-01~2003-08-01)
33920-83HA1-000	コントローラアッシ,インジェクション/エアコン	engine electrical (2003-04-01~2003-08-01)
33920-83HF0-000	コントローラアッシ,インジェクション/AT/エアコン	engine electrical (2003-04-01~2003-08-01)
33920-84FJ2-000	コントローラアッシ,インジェクション/AT/エアコン	engine electrical (2003-04-01~2003-08-01)
33925-76F00-000	COVER,EPI CONT	engine electrical (2003-04-01~2003-08-01)
33926-76G01-000	RESISTOR,IGT NO.N	engine electrical (2003-04-01~2003-08-01)
33926-76G10-000	RESISTOR,IGT NO.1	engine electrical (2003-04-01~2003-08-01)
33926-76G20-000	RESISTOR,IGT NO.2	engine electrical (2003-04-01~2003-08-01)
33926-76G30-000	RESISTOR,IGT NO.3	engine electrical (2003-04-01~2003-08-01)
33926-76G40-000	RESISTOR,IGT NO.4	engine electrical (2003-04-01~2003-08-01)
33926-76G50-000	RESISTOR,IGT NO.5	engine electrical (2003-04-01~2003-08-01)
33926-76G60-000	RESISTOR,IGT NO.6	engine electrical (2003-04-01~2003-08-01)
33926-76G70-000	RESISTOR,IGT NO.7	engine electrical (2003-04-01~2003-08-01)
33926-76G80-000	RESISTOR,IGT NO.8	engine electrical (2003-04-01~2003-08-01)
33926-76G90-000	RESISTOR,IGT NO.9	engine electrical (2003-04-01~2003-08-01)
33926-76GA0-000	RESISTOR,IGT NO.10	engine electrical (2003-04-01~2003-08-01)
33926-76GB0-000	RESISTOR,IGT NO.11	engine electrical (2003-04-01~2003-08-01)
