| 01550-08163-000 |
Bolt, holder |

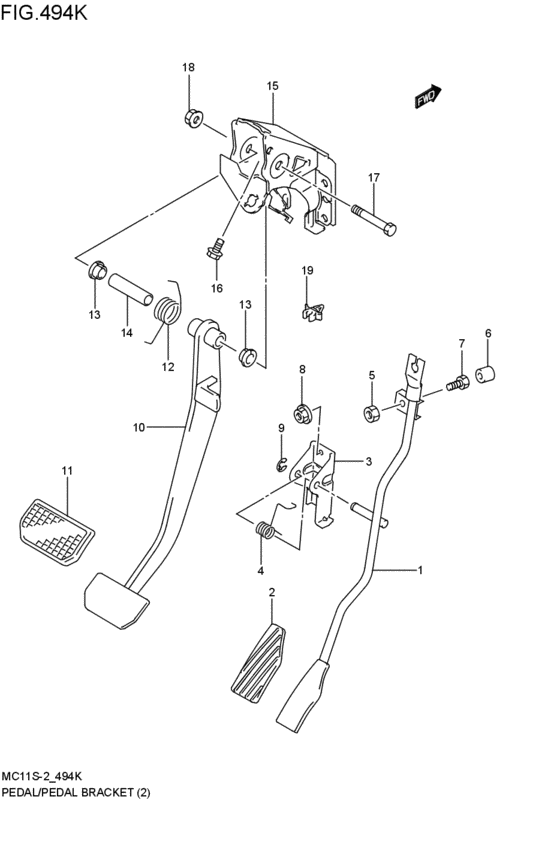

pedal / pedal bracket (AT,CVT; 1999-10-01~) |
| 01550-0816A-000 |
Bolt - Bolt, rear |
pedal / pedal bracket (AT,CVT; 1999-10-01~) |
| 01550-0816B-000 |
Bolt |
pedal / pedal bracket (AT,CVT; 1999-10-01~) |
| 08310-00063-000 |
Nut |
pedal / pedal bracket (AT,CVT; 1999-10-01~) |
| 08310-0006A-000 |
NUT |
pedal / pedal bracket (AT,CVT; 1999-10-01~) |
| 08310-0006B-000 |
NUT - Nut gear shift link rod |
pedal / pedal bracket (AT,CVT; 1999-10-01~) |
| 08316-10103-000 |
Nut |
pedal / pedal bracket (AT,CVT; 1999-10-01~) |
| 08316-1010B-000 |
NUT |
pedal / pedal bracket (AT,CVT; 1999-10-01~) |
| 08332-11073-000 |
E ring |
pedal / pedal bracket (AT,CVT; 1999-10-01~) |
| 08332-1107A-000 |
E RING |
pedal / pedal bracket (AT,CVT; 1999-10-01~) |
| 09100-06150-000 |
BOLT(6X31) - Bolt, adjuster |
pedal / pedal bracket (AT,CVT; 1999-10-01~) |
| 09100-10304-000 |
BOLT(10X65) |
pedal / pedal bracket (AT,CVT; 1999-10-01~) |
| 09148-09001-000 |
NUT |
pedal / pedal bracket (AT,CVT; 1999-10-01~) |
| 09159-06076-000 |
NUT |
pedal / pedal bracket (AT,CVT; 1999-10-01~) |
| 09251-05007-000 |
CAP(OD:13.6) |
pedal / pedal bracket (AT,CVT; 1999-10-01~) |
| 09307-13005-000 |
BUSH - Bushing |
pedal / pedal bracket (AT,CVT; 1999-10-01~) |
| 09448-15016-000 |
SPRING |
pedal / pedal bracket (AT,CVT; 1999-10-01~) |
| 15911-63B00-000 |
Clamp, Cable |
pedal / pedal bracket (AT,CVT; 1999-10-01~) |
| 49410-73H21-000 |
ペダル,アクセレレータ |
pedal / pedal bracket (AT,CVT; 1999-10-01~) |
| 49410-76F10-000 |
ペダル,アクセレレータ |
pedal / pedal bracket (AT,CVT; 1999-10-01~) |
| 49451-60B00-000 |
PAD,ACCELERATOR PEDAL |
pedal / pedal bracket (AT,CVT; 1999-10-01~) |
| 49491-76F00-000 |
SPRING,ACCEL PEDAL |
pedal / pedal bracket (AT,CVT; 1999-10-01~) |
| 49510-80G50-000 |
BRACKET,ACCELERATOR PEDAL |
pedal / pedal bracket (AT,CVT; 1999-10-01~) |
| 49511-76G00-000 |
Bracket, accelerator pedal |
pedal / pedal bracket (AT,CVT; 1999-10-01~) |
| 49610-76F10-000 |
ペダル,ブレーキ |
pedal / pedal bracket (AT,CVT; 1999-10-01~) |
| 49610-84F10-000 |
PEDAL,BRAKE |
pedal / pedal bracket (AT,CVT; 1999-10-01~) |
| 49691-54C00-000 |
SPRING,BRAKE PEDAL |
pedal / pedal bracket (AT,CVT; 1999-10-01~) |
| 49691-76G00-000 |
Spring, brake pedal |
pedal / pedal bracket (AT,CVT; 1999-10-01~) |
| 49710-76F11-000 |
BRACKET,BRAKE PEDAL |
pedal / pedal bracket (AT,CVT; 1999-10-01~) |
| 49751-58J10-000 |
PAD,PEDAL |
pedal / pedal bracket (AT,CVT; 1999-10-01~) |
| 49751-86300-000 |
Pad, brake pedal |
pedal / pedal bracket (AT,CVT; 1999-10-01~) |
| 49871-80F00-000 |
SPACER,PEDAL SHAFT |
pedal / pedal bracket (AT,CVT; 1999-10-01~) |
| 49881-80F00-000 |
Bolt, pedal shaft |
pedal / pedal bracket (AT,CVT; 1999-10-01~) |
| 75411-76G00-000 |
Clamp, Cable |
pedal / pedal bracket (AT,CVT; 1999-10-01~) |
