MC2

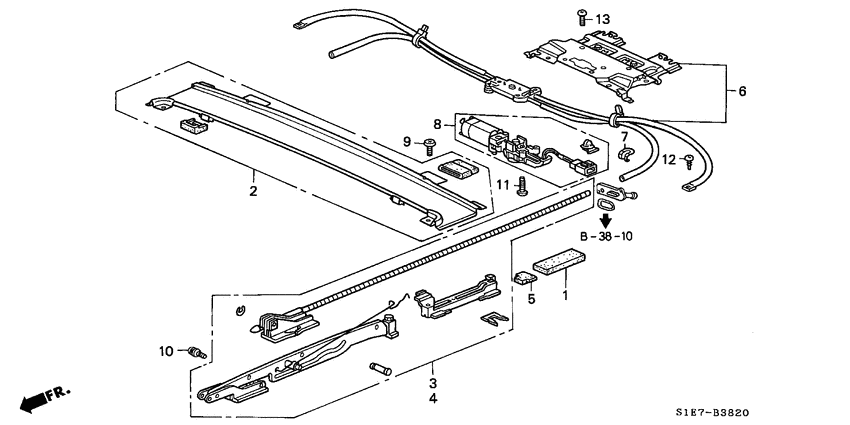

Roof slide component 13
| # | OEM | Part name |
|---|---|---|
| 1 | 70390-S1E-G01 | Buffer - RR. MECHANISM STOP |
| 2 | 70240-SN7-G01 | Rail assy - DRIP |
| 3 | 70350-SN7-G01 | Guide assy - R. |
| 4 | 70355-SN7-G01 | Guide assy - L. |
| 5 | 70389-SN7-G01 | Buffer |
| 6 | 70400-SN7-G01 | Drive unit |
| 7 | 70442-SN7-G01 | Clip - GUIDE RAIL END |
| 8 | 70450-SN7-G01 | Motor assy. |
| 9 | 90108-SN7-G01 | Screw |
| 10 | 90121-SN7-G01 | Screw - 5X8 |
| 11 | 90185-SN7-G01 | Screw - 5X25 |
| 12 | 90186-SN7-G01 | Screw - 3.9X8 |
| 13 | 90188-SN7-G01 | Screw - 4X12 |
| OEM | Part name | Category |
|---|---|---|
| 70240-SN7-G01 | Rail assy - DRIP | Roof slide component |
| 70350-SN7-G01 | Guide assy - R. | Roof slide component |
| 70355-SN7-G01 | Guide assy - L. | Roof slide component |
| 70389-SN7-G01 | Buffer | Roof slide component |
| 70390-S1E-G01 | Buffer - RR. MECHANISM STOP | Roof slide component |
| 70400-SN7-G01 | Drive unit | Roof slide component |
| 70442-SN7-G01 | Clip - GUIDE RAIL END | Roof slide component |
| 70450-SN7-G01 | Motor assy. | Roof slide component |
| 90108-SN7-G01 | Screw | Roof slide component |
| 90121-SN7-G01 | Screw - 5X8 | Roof slide component |
| 90185-SN7-G01 | Screw - 5X25 | Roof slide component |
| 90186-SN7-G01 | Screw - 3.9X8 | Roof slide component |
| 90188-SN7-G01 | Screw - 4X12 | Roof slide component |
