Search › Model › MC11S
MC11S

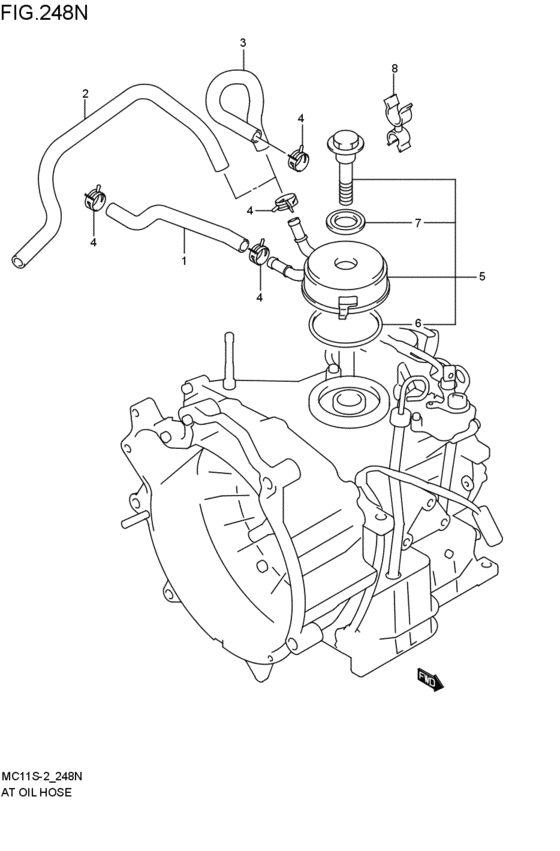

at - oil hose (AT; 1999-10-01~) 8
| # | OEM | Part name |
|---|---|---|
| 1 | 24891-76F10-000 | ホース,オイルクーラ,NO.1 |
| 2 | 24892-76G71-000 | ホース,オイルクーラ,NO.2 |
| 2 | 24892-76G73-000 | ホース,オイルクーラ,N0.2 |
| 4 | 09401-18403-000 | CLIP - Clip, heater hose |
| 5 | 24921-76G10-000 | クーラアッシ,AT |
| 5 | 24921-76G32-000 | COOLER ASSY,AT |
| 6 | 24924-76G10-000 | O-RING,OIL COOLER |
| 7 | 24925-76G10-000 | WASHER,OIL COOLER |
| OEM | Part name | Category |
|---|---|---|
| 09401-18403-000 | CLIP - Clip, heater hose | at - oil hose (AT; 1999-10-01~) |
| 24891-76F10-000 | ホース,オイルクーラ,NO.1 | at - oil hose (AT; 1999-10-01~) |
| 24892-76G71-000 | ホース,オイルクーラ,NO.2 | at - oil hose (AT; 1999-10-01~) |
| 24892-76G73-000 | ホース,オイルクーラ,N0.2 | at - oil hose (AT; 1999-10-01~) |
| 24921-76G10-000 | クーラアッシ,AT | at - oil hose (AT; 1999-10-01~) |
| 24921-76G32-000 | COOLER ASSY,AT | at - oil hose (AT; 1999-10-01~) |
| 24924-76G10-000 | O-RING,OIL COOLER | at - oil hose (AT; 1999-10-01~) |
| 24925-76G10-000 | WASHER,OIL COOLER | at - oil hose (AT; 1999-10-01~) |
