Search › Model › MB7
MB7

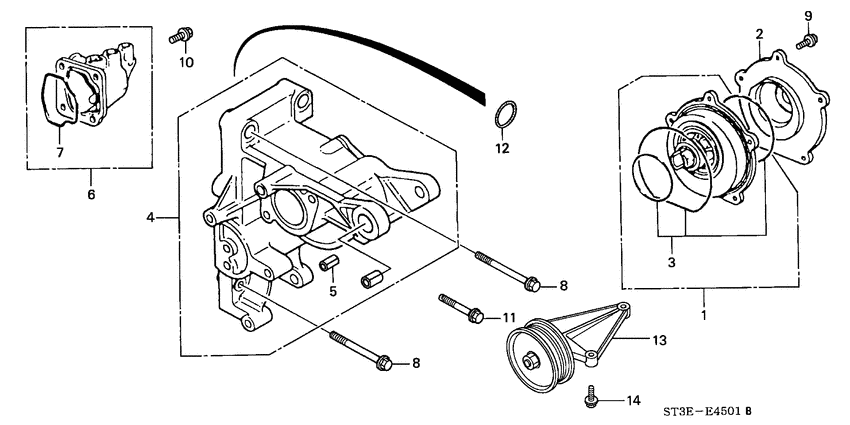

Water pump (DIESEL; AIR CONDITIONER) 9
| # | OEM | Part name |
|---|---|---|
| 1 | 19200-P5T-G01 | Pump comp - WATER |
| 2 | 19210-P5T-G01 | Cover - WATER PUMP |
| 3 | 19222-P5T-G01 | Packing set - WATER PUMP |
| 4 | 19230-P5T-G20 | Bracket - WATER PUMP |
| 5 | 19231-P5T-G00 | Bush - WATER PIPE BRACKET |
| 6 | 19350-P5T-G02 | Cover assy. - WATER OUTLET |
| 7 | 19351-P5T-G00 | Packing - WATER OUTLET COVER |
| 12 | 19223-P5T-G00 | O-ring |
| 13 | 19220-PFT-E00 | Pulley comp - IDLE (EXCEPT AIR CONDITIONING) |
| OEM | Part name | Category |
|---|---|---|
| 19200-P5T-G01 | Pump comp - WATER | Water pump (DIESEL; AIR CONDITIONER) |
| 19210-P5T-G01 | Cover - WATER PUMP | Water pump (DIESEL; AIR CONDITIONER) |
| 19220-PFT-E00 | Pulley comp - IDLE (EXCEPT AIR CONDITIONING) | Water pump (DIESEL; AIR CONDITIONER) |
| 19222-P5T-G01 | Packing set - WATER PUMP | Water pump (DIESEL; AIR CONDITIONER) |
| 19223-P5T-G00 | O-ring | Water pump (DIESEL; AIR CONDITIONER) |
| 19230-P5T-G20 | Bracket - WATER PUMP | Water pump (DIESEL; AIR CONDITIONER) |
| 19231-P5T-G00 | Bush - WATER PIPE BRACKET | Water pump (DIESEL; AIR CONDITIONER) |
| 19350-P5T-G02 | Cover assy. - WATER OUTLET | Water pump (DIESEL; AIR CONDITIONER) |
| 19351-P5T-G00 | Packing - WATER OUTLET COVER | Water pump (DIESEL; AIR CONDITIONER) |
