MB7

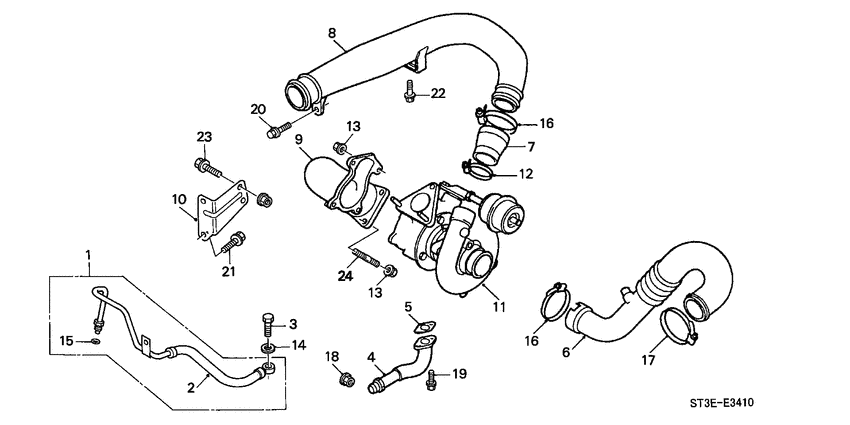

Turbocharger (DIESEL) 15
| # | OEM | Part name |
|---|---|---|
| 1 | 15580-P5T-G00 | Hose assy - TURBOCHARGER BRACKET |
| 2 | 15581-P5T-G01 | Hose comp. - TURBOCHARGER OIL IN. |
| 3 | 15585-P5T-G00 | Bolt - TURBOCHARGER OIL HOSE |
| 4 | 15590-P9M-E00 | Pipe comp - TURBOCHARGER OIL OUTLET |
| 5 | 15596-P5T-G00 | Gasket - TURBOCHARGER OIL PIPE |
| 6 | 17227-P5T-G01 | Hose - AIR FLOW METER |
| 7 | 17228-P5T-G00 | Hose - TURBOCHARGER OUTLET |
| 8 | 17229-P5T-G00 | Pipe - TURBOCHARGER OUTLET |
| 9 | 18131-P5T-G01 | Pipe - EX. JOINT |
| 10 | 18135-P5T-G00 | Bracket - TURBOCHARGER |
| 11 | 18900-P5T-G01 | Turbocharger assy |
| 12 | 90607-P5T-G00 | Clip - HOSE |
| 13 | 90204-P5T-G00 | Nut - TURBOCHARGER |
| 14 | 90408-P5T-G00 | Washer - SEALING |
| 15 | 91304-P5T-G00 | O-ring |
| OEM | Part name | Category |
|---|---|---|
| 15580-P5T-G00 | Hose assy - TURBOCHARGER BRACKET | Turbocharger (DIESEL) |
| 15581-P5T-G01 | Hose comp. - TURBOCHARGER OIL IN. | Turbocharger (DIESEL) |
| 15585-P5T-G00 | Bolt - TURBOCHARGER OIL HOSE | Turbocharger (DIESEL) |
| 15590-P9M-E00 | Pipe comp - TURBOCHARGER OIL OUTLET | Turbocharger (DIESEL) |
| 15596-P5T-G00 | Gasket - TURBOCHARGER OIL PIPE | Turbocharger (DIESEL) |
| 17227-P5T-G01 | Hose - AIR FLOW METER | Turbocharger (DIESEL) |
| 17228-P5T-G00 | Hose - TURBOCHARGER OUTLET | Turbocharger (DIESEL) |
| 17229-P5T-G00 | Pipe - TURBOCHARGER OUTLET | Turbocharger (DIESEL) |
| 18131-P5T-G01 | Pipe - EX. JOINT | Turbocharger (DIESEL) |
| 18135-P5T-G00 | Bracket - TURBOCHARGER | Turbocharger (DIESEL) |
| 18900-P5T-G01 | Turbocharger assy | Turbocharger (DIESEL) |
| 90204-P5T-G00 | Nut - TURBOCHARGER | Turbocharger (DIESEL) |
| 90408-P5T-G00 | Washer - SEALING | Turbocharger (DIESEL) |
| 90607-P5T-G00 | Clip - HOSE | Turbocharger (DIESEL) |
| 91304-P5T-G00 | O-ring | Turbocharger (DIESEL) |
