Search › Model › MB7
MB7

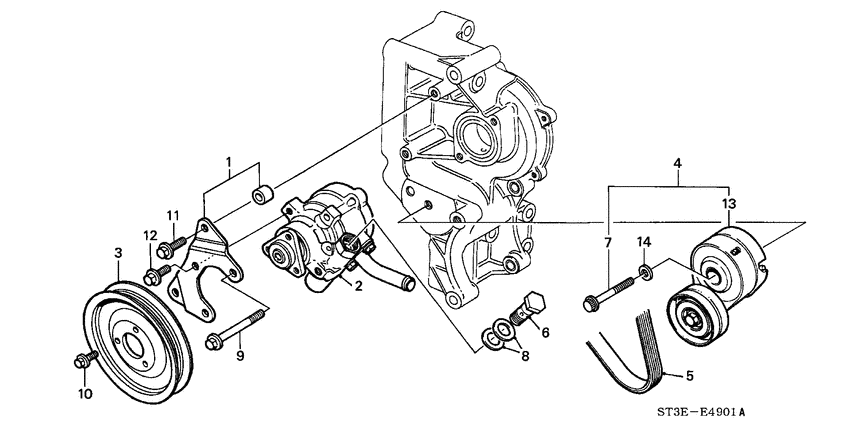

P.s. pump (DIESEL; AIR CONDITIONER) 9
| # | OEM | Part name |
|---|---|---|
| 1 | 06569-P5T-G20 | Bracket kit - POWER STEERING SUPPORT |
| 2 | 56100-P5T-G21 | Pump assy. - POWER STEERING |
| 3 | 56483-P5T-G21 | Pulley - POWER STEERING PUMP |
| 5 | 56992-P5T-G20 | Belt - DRIVE |
| 6 | 90015-P5T-G01 | Bolt - POWER STEERING FEED HOSE |
| 7 | 90020-P5T-G01 | Bolt |
| 8 | 90409-P5T-G01 | Washer - SEALING |
| 13 | 56900-P5T-G05 | Tensioner comp - DRIVE BELT |
| 14 | 56915-P5T-G00 | Washer - FIT PLATE TENSIONER |
| OEM | Part name | Category |
|---|---|---|
| 06569-P5T-G20 | Bracket kit - POWER STEERING SUPPORT | P.s. pump (DIESEL; AIR CONDITIONER) |
| 56100-P5T-G21 | Pump assy. - POWER STEERING | P.s. pump (DIESEL; AIR CONDITIONER) |
| 56483-P5T-G21 | Pulley - POWER STEERING PUMP | P.s. pump (DIESEL; AIR CONDITIONER) |
| 56900-P5T-G05 | Tensioner comp - DRIVE BELT | P.s. pump (DIESEL; AIR CONDITIONER) |
| 56915-P5T-G00 | Washer - FIT PLATE TENSIONER | P.s. pump (DIESEL; AIR CONDITIONER) |
| 56992-P5T-G20 | Belt - DRIVE | P.s. pump (DIESEL; AIR CONDITIONER) |
| 90015-P5T-G01 | Bolt - POWER STEERING FEED HOSE | P.s. pump (DIESEL; AIR CONDITIONER) |
| 90020-P5T-G01 | Bolt | P.s. pump (DIESEL; AIR CONDITIONER) |
| 90409-P5T-G01 | Washer - SEALING | P.s. pump (DIESEL; AIR CONDITIONER) |
