MB7

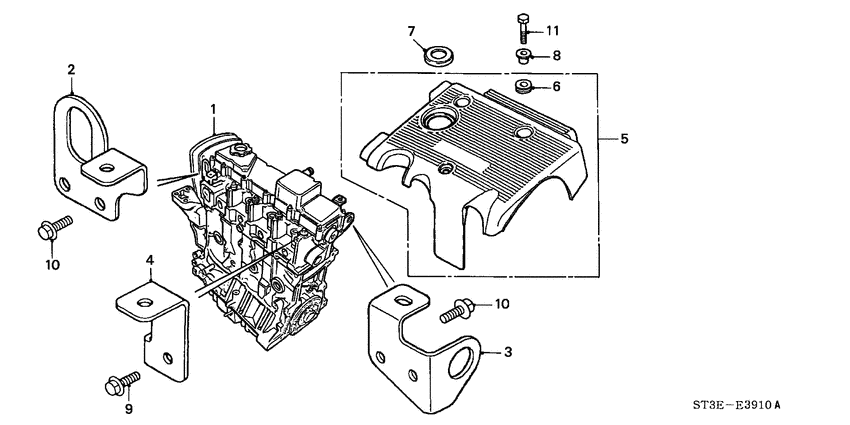

Engine assy./ acoustic cover (DIESEL) 8
| # | OEM | Part name |
|---|---|---|
| 1 | 10001-P5T-316 | Engine assy - BARE |
| 2 | 11911-P5T-G00 | Hanger a - ENGINE |
| 3 | 11912-P5T-G00 | Hanger b - ENGINE |
| 4 | 11915-P5T-G00 | Stay - ENGINE COVER |
| 5 | 17112-PDD-X00 | Cover assy. - ACOUSTIC |
| 6 | 17115-P5T-G00 | Grommet - ACOUSTIC COVER |
| 7 | 17117-P5T-G00 | Seal - ACOUSTIC COVER |
| 8 | 90501-P5T-G00 | Insert - ACOUSTIC COVER |
| OEM | Part name | Category |
|---|---|---|
| 10001-P5T-316 | Engine assy - BARE | Engine assy./ acoustic cover (DIESEL) |
| 11911-P5T-G00 | Hanger a - ENGINE | Engine assy./ acoustic cover (DIESEL) |
| 11912-P5T-G00 | Hanger b - ENGINE | Engine assy./ acoustic cover (DIESEL) |
| 11915-P5T-G00 | Stay - ENGINE COVER | Engine assy./ acoustic cover (DIESEL) |
| 17112-PDD-X00 | Cover assy. - ACOUSTIC | Engine assy./ acoustic cover (DIESEL) |
| 17115-P5T-G00 | Grommet - ACOUSTIC COVER | Engine assy./ acoustic cover (DIESEL) |
| 17117-P5T-G00 | Seal - ACOUSTIC COVER | Engine assy./ acoustic cover (DIESEL) |
| 90501-P5T-G00 | Insert - ACOUSTIC COVER | Engine assy./ acoustic cover (DIESEL) |
