Search › Model › MB7
MB7

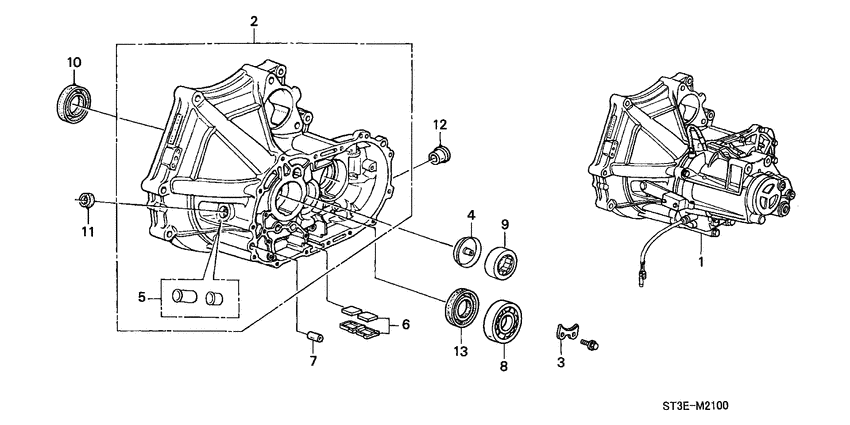

Clutch case (DIESEL) 13
| # | OEM | Part name |
|---|---|---|
| 1 | 20011-P6A-A01 | Transmission assy. |
| 2 | 21000-P6A-010 | Case comp. - CLUTCH |
| 3 | 21101-P6A-000 | Plate - NEEDLE SETTING |
| 4 | 21103-PG1-L60 | Plate c - OIL GUIDE |
| 5 | 21106-P6A-000 | Bush kit - CLUTCH |
| 6 | 21120-PG1-L60 | Magnet - TRANSMISSION |
| 7 | 90701-P6A-000 | Dowel pin - 14X20 |
| 8 | 91002-P6A-000 | Bearing - BALL, 63/28C |
| 9 | 91101-P6A-000 | Bearing - NEEDLE, 33X60X22 |
| 10 | 91205-P6A-010 | Oil seal - 40X62X9 |
| 11 | 91208-P6A-000 | Dust seal - 18X23X4 |
| 12 | 91215-P6A-000 | Oil seal - 14X25X16 |
| 13 | 91216-P6A-000 | Oil seal - 28X43X7 |
| OEM | Part name | Category |
|---|---|---|
| 20011-P6A-A01 | Transmission assy. | Clutch case (DIESEL) |
| 21000-P6A-010 | Case comp. - CLUTCH | Clutch case (DIESEL) |
| 21101-P6A-000 | Plate - NEEDLE SETTING | Clutch case (DIESEL) |
| 21103-PG1-L60 | Plate c - OIL GUIDE | Clutch case (DIESEL) |
| 21106-P6A-000 | Bush kit - CLUTCH | Clutch case (DIESEL) |
| 21120-PG1-L60 | Magnet - TRANSMISSION | Clutch case (DIESEL) |
| 90701-P6A-000 | Dowel pin - 14X20 | Clutch case (DIESEL) |
| 91002-P6A-000 | Bearing - BALL, 63/28C | Clutch case (DIESEL) |
| 91101-P6A-000 | Bearing - NEEDLE, 33X60X22 | Clutch case (DIESEL) |
| 91205-P6A-010 | Oil seal - 40X62X9 | Clutch case (DIESEL) |
| 91208-P6A-000 | Dust seal - 18X23X4 | Clutch case (DIESEL) |
| 91215-P6A-000 | Oil seal - 14X25X16 | Clutch case (DIESEL) |
| 91216-P6A-000 | Oil seal - 28X43X7 | Clutch case (DIESEL) |
