Search › Model › MB61S

MB61S

Suzuki WAGON-R-PLUS-SOLIO-WIDE · 1997 · 3,210 parts · 147 categories

3,210 items

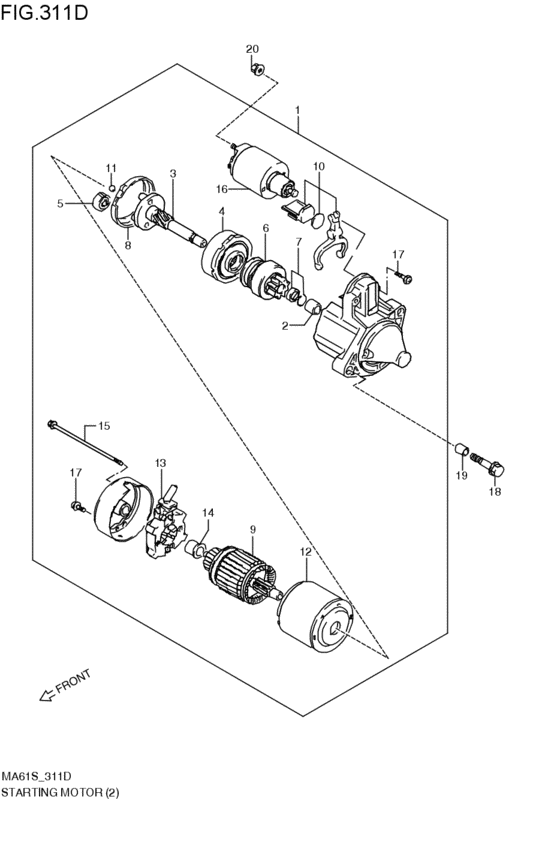

starting motor (4AT; 4AT; 1997-01-01~1999-04-01) 27

#	OEM	Part name
1	31100-75F10-000	MOTOR ASSY,STARTING
2	31152-79030-000	BEARING,FRONT
3	31341-75F10-000	SHAFT,GEAR
4	31343-75F10-000	モータ,スターティング
4	31343-80G00-000	INTERNAL GEAR
5	31344-86030-000	GEAR,PLNTY
6	31320-86030-000	CLUTCH,OVER RUNNING
7	31313-86030-000	STOPPER SET
7	31314-86030-000	Stopper Set
8	31345-75F10-000	PACKING
8	31345-80G00-000	PACKING
9	31311-75F10-000	ARMATURE
10	31191-75F10-000	LEVER ASSY
11	31193-86030-000	BALL
12	31110-75F10-000	YOKE ASSY
13	31173-60A22-000	HOLDER ASSY,BRUSH
14	31172-64B60-000	BEARING,REAR
15	31261-75F10-000	Bolt
16	31220-86032-000	SWITCH ASSY
17	31136-79030-000	SCREW ASSY
17	31175-79030-000	Screw Set
18	01550-08403-000	Bolt
18	01550-0840B-000	Bolt
18	01550-0840A-000	Bolt
19	04211-11129-000	PIN
20	08316-10083-000	Nut
20	08316-1008B-000	NUT

OEM	Part name	Category
01550-08403-000	Bolt	starting motor (4AT; 4AT; 1997-01-01~1999-04-01)
01550-0840A-000	Bolt	starting motor (4AT; 4AT; 1997-01-01~1999-04-01)
01550-0840B-000	Bolt	starting motor (4AT; 4AT; 1997-01-01~1999-04-01)
04211-11129-000	PIN	starting motor (4AT; 4AT; 1997-01-01~1999-04-01)
08316-10083-000	Nut	starting motor (4AT; 4AT; 1997-01-01~1999-04-01)
08316-1008B-000	NUT	starting motor (4AT; 4AT; 1997-01-01~1999-04-01)
31100-75F10-000	MOTOR ASSY,STARTING	starting motor (4AT; 4AT; 1997-01-01~1999-04-01)
31110-75F10-000	YOKE ASSY	starting motor (4AT; 4AT; 1997-01-01~1999-04-01)
31136-79030-000	SCREW ASSY	starting motor (4AT; 4AT; 1997-01-01~1999-04-01)
31152-79030-000	BEARING,FRONT	starting motor (4AT; 4AT; 1997-01-01~1999-04-01)
31172-64B60-000	BEARING,REAR	starting motor (4AT; 4AT; 1997-01-01~1999-04-01)
31173-60A22-000	HOLDER ASSY,BRUSH	starting motor (4AT; 4AT; 1997-01-01~1999-04-01)
31175-79030-000	Screw Set	starting motor (4AT; 4AT; 1997-01-01~1999-04-01)
31191-75F10-000	LEVER ASSY	starting motor (4AT; 4AT; 1997-01-01~1999-04-01)
31193-86030-000	BALL	starting motor (4AT; 4AT; 1997-01-01~1999-04-01)
31220-86032-000	SWITCH ASSY	starting motor (4AT; 4AT; 1997-01-01~1999-04-01)
31261-75F10-000	Bolt	starting motor (4AT; 4AT; 1997-01-01~1999-04-01)
31311-75F10-000	ARMATURE	starting motor (4AT; 4AT; 1997-01-01~1999-04-01)
31313-86030-000	STOPPER SET	starting motor (4AT; 4AT; 1997-01-01~1999-04-01)
31314-86030-000	Stopper Set	starting motor (4AT; 4AT; 1997-01-01~1999-04-01)
31320-86030-000	CLUTCH,OVER RUNNING	starting motor (4AT; 4AT; 1997-01-01~1999-04-01)
31341-75F10-000	SHAFT,GEAR	starting motor (4AT; 4AT; 1997-01-01~1999-04-01)
31343-75F10-000	モータ,スターティング	starting motor (4AT; 4AT; 1997-01-01~1999-04-01)
31343-80G00-000	INTERNAL GEAR	starting motor (4AT; 4AT; 1997-01-01~1999-04-01)
31344-86030-000	GEAR,PLNTY	starting motor (4AT; 4AT; 1997-01-01~1999-04-01)
31345-75F10-000	PACKING	starting motor (4AT; 4AT; 1997-01-01~1999-04-01)
31345-80G00-000	PACKING	starting motor (4AT; 4AT; 1997-01-01~1999-04-01)
