MB61S

Suzuki WAGON-R-PLUS-SOLIO-WIDE · 1997 · 3,210 parts · 147 categories

3,210 items

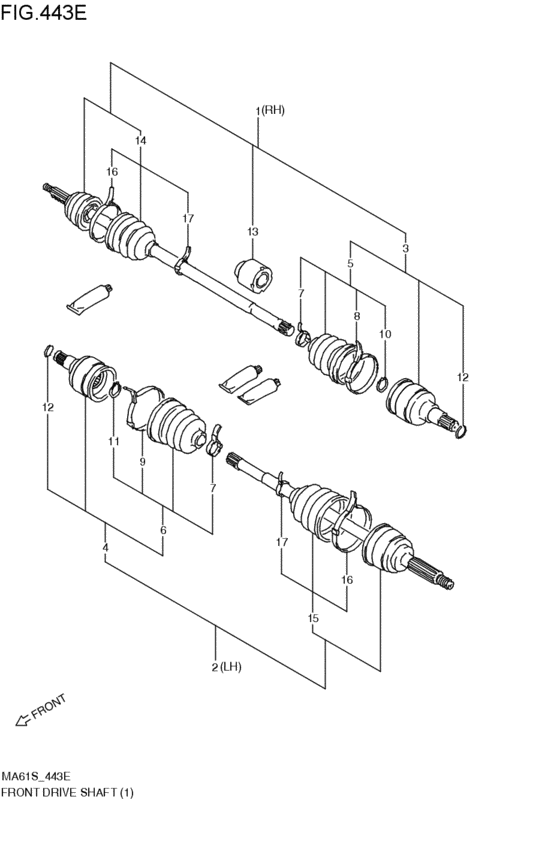

front-drive shaft (5MT:(2WD,4WD); 1997-01-01~1999-04-01) 30

#	OEM	Part name
1	44101-75F02-000	SHAFT ASSY,FRONT DRIVE,R
1	44101-75F52-000	Shaft assy,front drive,r
2	44102-75F02-000	SHAFT ASSY,FRONT DRIVE,L
2	44102-75F20-000	SHAFT ASSY,FRONT DRIVE,L
3	44117-75F10-000	ジョイントアッシ,ディファレンシャルサイド
3	44117-75F11-000	Joint assy,diff side
3	44117-75F12-000	Joint assy,diff side
3	44117-75F20-000	JOINT ASSY,DIFF SIDE
4	44117-75F40-000	JOINT ASSY,DIFF SIDE
4	44117-75F41-000	JOINT ASSY,DIFF SIDE
4	44117-75F61-000	JOINT ASSY,DIFF SIDE
5	44119-72F00-000	BOOT SET,DIFF SIDE
5	44119-72F01-000	BOOT SET,DIFF SIDE
5	44119-75F00-000	BOOT SET,DIFF SIDE
5	44119-60DD2-000	BOOT SET,DIFF SIDE
6	44119-75F60-000	BOOT SET,DIFF SIDE
6	44119-75F61-000	BOOT SET,DIFF SIDE
7	44124-86011-000	BAND,BOOT
8	44121-60B00-000	BAND,BOOT
8	44122-86010-000	BAND,BOOT - Clamp, differential side outer boot
10	44111-64B90-000	RING,SNAP
11	44111-78010-000	RING,SNAP
12	09381-24001-000	RING,SNAP - Ring (od:24,d:1.6)
13	44411-75F10-000	DAMPER SET
13	44411-75F11-000	DAMPER SET
14	44118-75F10-000	BOOT SET,WHEEL SIDE
14	44118-75F11-000	BOOT SET,WHEEL SIDE
14	44118-75F30-000	Boot set,wheel side
15	44118-75F60-000	BOOT SET,WHEEL SIDE
15	44118-80G11-000	BOOT SET,WHEEL SIDE

OEM	Part name	Category
09381-24001-000	RING,SNAP - Ring (od:24,d:1.6)	front-drive shaft (5MT:(2WD,4WD); 1997-01-01~1999-04-01)
44101-75F02-000	SHAFT ASSY,FRONT DRIVE,R	front-drive shaft (5MT:(2WD,4WD); 1997-01-01~1999-04-01)
44101-75F52-000	Shaft assy,front drive,r	front-drive shaft (5MT:(2WD,4WD); 1997-01-01~1999-04-01)
44102-75F02-000	SHAFT ASSY,FRONT DRIVE,L	front-drive shaft (5MT:(2WD,4WD); 1997-01-01~1999-04-01)
44102-75F20-000	SHAFT ASSY,FRONT DRIVE,L	front-drive shaft (5MT:(2WD,4WD); 1997-01-01~1999-04-01)
44111-64B90-000	RING,SNAP	front-drive shaft (5MT:(2WD,4WD); 1997-01-01~1999-04-01)
44111-78010-000	RING,SNAP	front-drive shaft (5MT:(2WD,4WD); 1997-01-01~1999-04-01)
44117-75F10-000	ジョイントアッシ,ディファレンシャルサイド	front-drive shaft (5MT:(2WD,4WD); 1997-01-01~1999-04-01)
44117-75F11-000	Joint assy,diff side	front-drive shaft (5MT:(2WD,4WD); 1997-01-01~1999-04-01)
44117-75F12-000	Joint assy,diff side	front-drive shaft (5MT:(2WD,4WD); 1997-01-01~1999-04-01)
44117-75F20-000	JOINT ASSY,DIFF SIDE	front-drive shaft (5MT:(2WD,4WD); 1997-01-01~1999-04-01)
44117-75F40-000	JOINT ASSY,DIFF SIDE	front-drive shaft (5MT:(2WD,4WD); 1997-01-01~1999-04-01)
44117-75F41-000	JOINT ASSY,DIFF SIDE	front-drive shaft (5MT:(2WD,4WD); 1997-01-01~1999-04-01)
44117-75F61-000	JOINT ASSY,DIFF SIDE	front-drive shaft (5MT:(2WD,4WD); 1997-01-01~1999-04-01)
44118-75F10-000	BOOT SET,WHEEL SIDE	front-drive shaft (5MT:(2WD,4WD); 1997-01-01~1999-04-01)
44118-75F11-000	BOOT SET,WHEEL SIDE	front-drive shaft (5MT:(2WD,4WD); 1997-01-01~1999-04-01)
44118-75F30-000	Boot set,wheel side	front-drive shaft (5MT:(2WD,4WD); 1997-01-01~1999-04-01)
44118-75F60-000	BOOT SET,WHEEL SIDE	front-drive shaft (5MT:(2WD,4WD); 1997-01-01~1999-04-01)
44118-80G11-000	BOOT SET,WHEEL SIDE	front-drive shaft (5MT:(2WD,4WD); 1997-01-01~1999-04-01)
44119-60DD2-000	BOOT SET,DIFF SIDE	front-drive shaft (5MT:(2WD,4WD); 1997-01-01~1999-04-01)
44119-72F00-000	BOOT SET,DIFF SIDE	front-drive shaft (5MT:(2WD,4WD); 1997-01-01~1999-04-01)
44119-72F01-000	BOOT SET,DIFF SIDE	front-drive shaft (5MT:(2WD,4WD); 1997-01-01~1999-04-01)
44119-75F00-000	BOOT SET,DIFF SIDE	front-drive shaft (5MT:(2WD,4WD); 1997-01-01~1999-04-01)
44119-75F60-000	BOOT SET,DIFF SIDE	front-drive shaft (5MT:(2WD,4WD); 1997-01-01~1999-04-01)
44119-75F61-000	BOOT SET,DIFF SIDE	front-drive shaft (5MT:(2WD,4WD); 1997-01-01~1999-04-01)
44121-60B00-000	BAND,BOOT	front-drive shaft (5MT:(2WD,4WD); 1997-01-01~1999-04-01)
44122-86010-000	BAND,BOOT - Clamp, differential side outer boot	front-drive shaft (5MT:(2WD,4WD); 1997-01-01~1999-04-01)
44124-86011-000	BAND,BOOT	front-drive shaft (5MT:(2WD,4WD); 1997-01-01~1999-04-01)
44411-75F10-000	DAMPER SET	front-drive shaft (5MT:(2WD,4WD); 1997-01-01~1999-04-01)
44411-75F11-000	DAMPER SET	front-drive shaft (5MT:(2WD,4WD); 1997-01-01~1999-04-01)
