Search › Model › MA70

MA70

Toyota SUPRA · 1986 · 4,841 parts · 153 categories

4,841 items

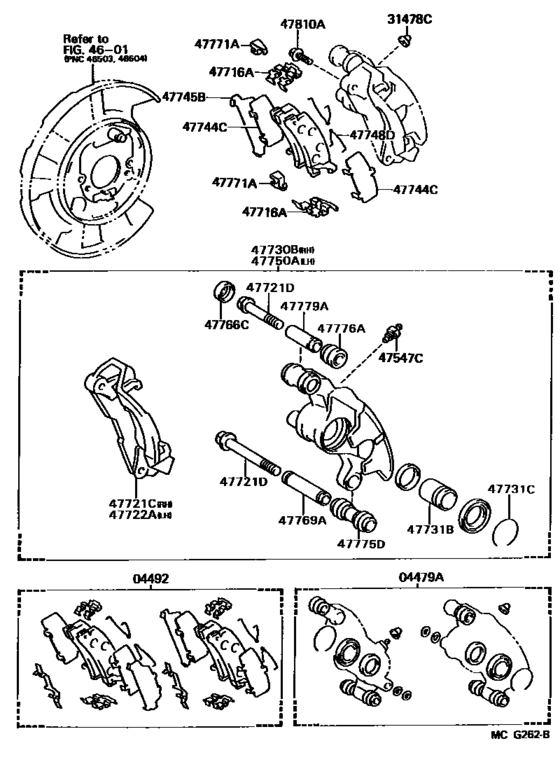

Rear Disc Brake Caliper & Dust Cover ([08.1988 - ] (8808- )) 25

#	OEM	Part name
4479	04479-14110	Cylinder Kit, Disc Brake, Rear
4492	04492-14120	Pad Kit, Disc Brake, Rear
4492	04466-14010	Pad Kit, Disc Brake, Rear
4946	04946-22030	Shim Kit, Anti Squeal(For Rear Disc Brake)
4948	04948-14080	Fitting Kit, Disc Brake, Rear
31478	31478-30010	Bleeder Plug Cap
47547	47547-20010	Plug, Bleeder(For Release Cylinder)
47716	47716-14140	Plate, Pad Support, No.1(For Rear Disc Brake)
47721	47721-14160	Mounting, Rear Disc Brake Cylinder, Rh
47721	90105-08117	Bolt(For Rear Disc Brake Cylinder Mouting)
47721	90119-08431	Bolt, Hexagon(For Front Disc Brake Torque Plate)
47730	47730-14230	Cylinder Assy, Rear Disc Brake, Rh
47731	47731-14100	Piston, Rear Disc Brake
47731	90522-49001	Ring, Set(For Disc Brake Piston, Rear)
47744	47744-22091	Shim, Anti-Squeal(For Rear Disc Brake)
47745	47745-22051	Shim, Anti-Squeal, No.2(For Rear Disc Brake)
47748	47748-14070	Spring, Anti-Rattle, No.1(For Front Disc Brake)
47750	47750-14240	Cylinder Assy, Disc Brake, Rear Lh
47766	47766-17010	Cap, Cylinder Slide Pin
47769	47769-28010	Bush, Cylinder Slide, No.1(For Front Disc Brake)
47771	47771-22040	Plate, Pad Wear Indicator, No.1
47775	47775-14010	Boot, Bush Dust(For Front Disc Brake)
47776	47776-14030	Boot, Main Pin(For Rear Disc Brake)
47779	47779-14010	Bush, Cylinder Slide, No.2(For Rear Disc Brake)
47810	90119-10402	Bolt, Hexagon(For Rear Caliper)

OEM	Part name	Category
04466-14010	Pad Kit, Disc Brake, Rear	Rear Disc Brake Caliper & Dust Cover ([08.1988 - ] (8808- ))
04479-14110	Cylinder Kit, Disc Brake, Rear	Rear Disc Brake Caliper & Dust Cover ([08.1988 - ] (8808- ))
04492-14120	Pad Kit, Disc Brake, Rear	Rear Disc Brake Caliper & Dust Cover ([08.1988 - ] (8808- ))
04946-22030	Shim Kit, Anti Squeal(For Rear Disc Brake)	Rear Disc Brake Caliper & Dust Cover ([08.1988 - ] (8808- ))
04948-14080	Fitting Kit, Disc Brake, Rear	Rear Disc Brake Caliper & Dust Cover ([08.1988 - ] (8808- ))
31478-30010	Bleeder Plug Cap	Rear Disc Brake Caliper & Dust Cover ([08.1988 - ] (8808- ))
47547-20010	Plug, Bleeder(For Release Cylinder)	Rear Disc Brake Caliper & Dust Cover ([08.1988 - ] (8808- ))
47716-14140	Plate, Pad Support, No.1(For Rear Disc Brake)	Rear Disc Brake Caliper & Dust Cover ([08.1988 - ] (8808- ))
47721-14160	Mounting, Rear Disc Brake Cylinder, Rh	Rear Disc Brake Caliper & Dust Cover ([08.1988 - ] (8808- ))
47730-14230	Cylinder Assy, Rear Disc Brake, Rh	Rear Disc Brake Caliper & Dust Cover ([08.1988 - ] (8808- ))
47731-14100	Piston, Rear Disc Brake	Rear Disc Brake Caliper & Dust Cover ([08.1988 - ] (8808- ))
47744-22091	Shim, Anti-Squeal(For Rear Disc Brake)	Rear Disc Brake Caliper & Dust Cover ([08.1988 - ] (8808- ))
47745-22051	Shim, Anti-Squeal, No.2(For Rear Disc Brake)	Rear Disc Brake Caliper & Dust Cover ([08.1988 - ] (8808- ))
47748-14070	Spring, Anti-Rattle, No.1(For Front Disc Brake)	Rear Disc Brake Caliper & Dust Cover ([08.1988 - ] (8808- ))
47750-14240	Cylinder Assy, Disc Brake, Rear Lh	Rear Disc Brake Caliper & Dust Cover ([08.1988 - ] (8808- ))
47766-17010	Cap, Cylinder Slide Pin	Rear Disc Brake Caliper & Dust Cover ([08.1988 - ] (8808- ))
47769-28010	Bush, Cylinder Slide, No.1(For Front Disc Brake)	Rear Disc Brake Caliper & Dust Cover ([08.1988 - ] (8808- ))
47771-22040	Plate, Pad Wear Indicator, No.1	Rear Disc Brake Caliper & Dust Cover ([08.1988 - ] (8808- ))
47775-14010	Boot, Bush Dust(For Front Disc Brake)	Rear Disc Brake Caliper & Dust Cover ([08.1988 - ] (8808- ))
47776-14030	Boot, Main Pin(For Rear Disc Brake)	Rear Disc Brake Caliper & Dust Cover ([08.1988 - ] (8808- ))
47779-14010	Bush, Cylinder Slide, No.2(For Rear Disc Brake)	Rear Disc Brake Caliper & Dust Cover ([08.1988 - ] (8808- ))
90105-08117	Bolt(For Rear Disc Brake Cylinder Mouting)	Rear Disc Brake Caliper & Dust Cover ([08.1988 - ] (8808- ))
90119-08431	Bolt, Hexagon(For Front Disc Brake Torque Plate)	Rear Disc Brake Caliper & Dust Cover ([08.1988 - ] (8808- ))
90119-10402	Bolt, Hexagon(For Rear Caliper)	Rear Disc Brake Caliper & Dust Cover ([08.1988 - ] (8808- ))
90522-49001	Ring, Set(For Disc Brake Piston, Rear)	Rear Disc Brake Caliper & Dust Cover ([08.1988 - ] (8808- ))

Source: Public OEM parts-catalog data
Variants: 2 / 209
Category: 153
Collected: 2026-08-04
