MA70

Toyota SUPRA · 1986 · 4,841 parts · 153 categories
MA70 ×

← Back to categories

4,841 items

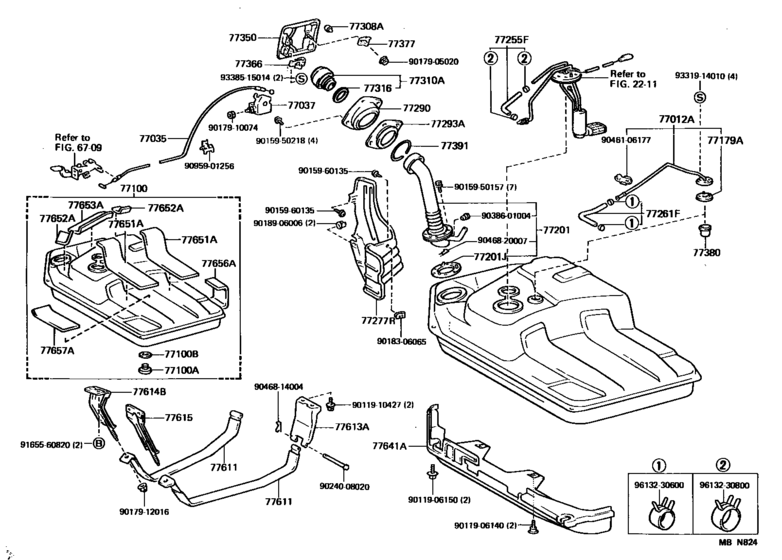

Fuel Tank & Tube ([08.1988 - ] (8808- )) 99
#OEMPart name
77012 77012-14060 Tube Sub-Assy, Fuel Tank Breather
77019 77019-14140 Tube Sub-Assy, Fuel Tank To Canister - FUEL EMISSION, NO.1
77035 77035-14200 Cable Sub-Assy, Fuel Lid Lock Control
77037 77037-90K00 Lock Sub-Assy, Fuel Tank Cap
77100 77001-19426 Tank Assy, Fuel
77100 90341-20004 Plug(For Fuel Tank)
77100 90430-20007 Gasket(For Fuel Tank)
77179 77179-16010 Gasket, Fuel Tank Evap/vent Tube
77201 77201-14310 Pipe Sub-Assy, Fuel Tank Inlet
77201 77169-14010 Gasket, Fuel Pump Bracket
77251 77251-14400 Tube, Fuel Main, No.1
77255 77049-14040 Hose, Fuel, No.2 (For Fuel Return Tube)
77255 77255-14390 Tube, Fuel Return - FUEL RETURN, NO.1
77261 77209-14080 Hose, Fuel, No.2 (For Emission Tube, No.1)
77261 77259-14040 Hose, Fuel, No.1 (For Emission Tube, No.1)
77266 77266-14040 Protector, Fuel Tube, No.1
77267 77267-14010 Protector, Fuel Tube, No.2
77273 77273-14020 Clamp, Fuel Tube W/grommet, No.6
77277 77277-14120 Protector, Fuel Tank Filler Pipe
77277 23271-42030 Hose, Fuel, No.1(For Return Tube, No.1)
77284 77284-14010 Protector, Fuel Tube, No.3
77285 77285-14030 Clamp, Fuel Tube W/grommet, No.1
77286 77286-14020 Clamp, Fuel Tube W/grommet, No.2
77287 77287-14020 Support, Tank To Canister Tube, No.1
77289 77289-14030 Clamp, Fuel Tube W/grommet, No.3
77290 77291-14080 Shield Assy, Fuel Tank Filler Pipe
77293 77293-20010 Shield, Fuel Tank Filler Pipe, No.3
77298 77298-14020 Clamp, Fuel Tube W/grommet, No.4
77299 77299-14020 Clamp, Fuel Tube W/grommet, No.5
77308 90541-08019 Cushion(For Fuel Inlet Box Cover)
77308 90541-08009 Cushion(For Luggage Compartment Door Panel)
77310 77310-12140 Cap Assy, Fuel Tank
77316 77316-16010 Gasket (For Fuel Tank Cap)
77350 77350-14050 Lid Assy, Fuel Filler Opening
77366 77360-24010 Retainer, Fuel Inlet Cushion
77377 77377-20030 Retainer, Fuel Filler Opening Lid Lock
77380 77380-14020 Valve Assy, Fuel Cut Off
77391 77391-16011 Ring, Fuel Inlet Box
77611 77601-14070 Band, Fuel Tank
77611 77602-14050 Band, Fuel Tank
77613 77613-14050 Bracket, Fuel Tank Band, No.1
77614 77614-14030 Bracket, Fuel Tank Band, No.2
77615 77615-14010 Bracket, Fuel Tank Band, No.3
77641 77641-14090 Protector, Fuel Tank, No.1
77651 77651-14090 Cushion, Fuel Tank, No.1
77652 77652-14110 Cushion, Fuel Tank, No.2
77653 77653-14070 Cushion, Fuel Tank, No.3
77656 77654-14040 Cushion, Fuel Tank, No.4
77657 77655-14020 Cushion, Fuel Tank, No.5
77740 77740-14410 Canister Assy, Charcoal
77740 90999-92003 Hose, Breather (For Transfer Case)
77740 77264-14140 Tube, Fuel, No.1(For Charcoal Canister)
77751 53751-14031 Bracket, Charcoal Canister Base
8271114110 82711-14110 Clamp(For Hood Lock Control Cable)
9011906140 90119-06140 New Genuine Part
9011906150 90119-06150 New Genuine Part
9011906150 90109-06165 New Genuine Part
9011910427 90119-10427 Bolt, No.1 (For Center Support Bearing)
9015950157 90159-50157 SCREW WWASHER
9015950218 90159-50218 New Genuine Part
9015950218 90159-50278 New Genuine Part
9015960135 90159-60135 New Genuine Part
9015960200 90159-60200 SCREW
9017905020 90179-05020 NUT
9017905020 90179-05011 NUT
9017910074 90179-10074 New Genuine Part
9017912016 90179-12016 NUT
9018306065 90183-06065 NUTSPRG
9018906005 90189-06005 CLIP
9018906006 90189-06006 Grommet
9024008020 90240-08020 Pin (For Fuel Tank Band)
9038601004 90386-01004 New Genuine Part
9046106177 90461-06177 New Genuine Part
9046400312 90464-00312 New Genuine Part
9046707069 90467-07069 Clip (For Quarter Inside Trim Board)
9046713039 90467-13039 Clamp, Hose
9046713039 96135-51300 Clamp, Hose
9046814004 90468-14004 Union, Auxiliary Fuel Band
9046820007 90468-20007 New Genuine Part
9048001307 90480-01307 New Genuine Part
9048001401 90480-01401 New Genuine Part
9048001402 90480-01402 New Genuine Part
9048001404 90480-01404 New Genuine Part
9048014470 90480-14470 Grommet
9095901256 90959-01256 New Genuine Part
9095901302 90959-01302 Clamp (For Speedometer Cable)
9165140616 91651-40616 BOLT
9165140616 91621-60614 Bolt(For Transaxle & Engine Setting)
9165140616 90080-11395 New Genuine Part
9165560820 91655-60820 BOLT
9165560820 91651-60816 BOLT
9165640618 91656-40618 Bolt (For Rear Differential Breather Plug Oil Deflector)
9165640618 91651-60614 Bolt
9331914010 93319-14010 SCREW
9338515014 93385-15014 Screw(For Steering Tilt Lever)
9613230600 96132-30600 Clip(For Actuator Hose)
9613230600 96132-51100 Clip (For Hose)
9613230800 96132-30800 Clip, No.3(For Idle-Up Hose)
9613230800 96132-51300 Clip(For Ventilation Hose No.2)
