Search › Model › MA70
MA70

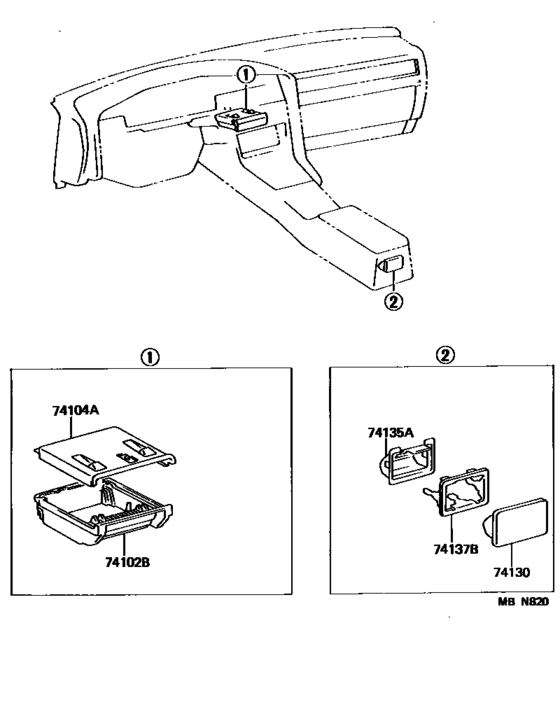

Ash Receptacle ([08.1988 - ] (8808- )) 8
| # | OEM | Part name |
|---|---|---|
| 74102 | 74102-14120 | Receptacle Assy, Front Ash |
| 74104 | 74104-14130 | Retainer Sub-Assy, Ash Receptacle, No.1 |
| 74130 | 74109-32010-14 | Receptacle Assy, Rear Ash |
| 74130 | 74109-20080-22 | Receptacle Assy, Rear Ash (Black) |
| 74130 | 74109-32010-32 | Receptacle Assy, Rear Ash |
| 74130 | 74109-32010-B2 | Receptacle Assy, Rear Ash |
| 74135 | 74135-14010 | Retainer, Rear Ash Receptacle, No.1 |
| 74137 | 74137-14010 | Retainer, Rear Ash Receptacle, Inner |
| OEM | Part name | Category |
|---|---|---|
| 74102-14120 | Receptacle Assy, Front Ash | Ash Receptacle ([08.1988 - ] (8808- )) |
| 74104-14130 | Retainer Sub-Assy, Ash Receptacle, No.1 | Ash Receptacle ([08.1988 - ] (8808- )) |
| 74109-20080-22 | Receptacle Assy, Rear Ash (Black) | Ash Receptacle ([08.1988 - ] (8808- )) |
| 74109-32010-14 | Receptacle Assy, Rear Ash | Ash Receptacle ([08.1988 - ] (8808- )) |
| 74109-32010-32 | Receptacle Assy, Rear Ash | Ash Receptacle ([08.1988 - ] (8808- )) |
| 74109-32010-B2 | Receptacle Assy, Rear Ash | Ash Receptacle ([08.1988 - ] (8808- )) |
| 74135-14010 | Retainer, Rear Ash Receptacle, No.1 | Ash Receptacle ([08.1988 - ] (8808- )) |
| 74137-14010 | Retainer, Rear Ash Receptacle, Inner | Ash Receptacle ([08.1988 - ] (8808- )) |
