Search › Model › MA64S

MA64S

Suzuki WAGON-R-PLUS-SOLIO-WIDE · 2000 · 2,280 parts · 110 categories

2,280 items

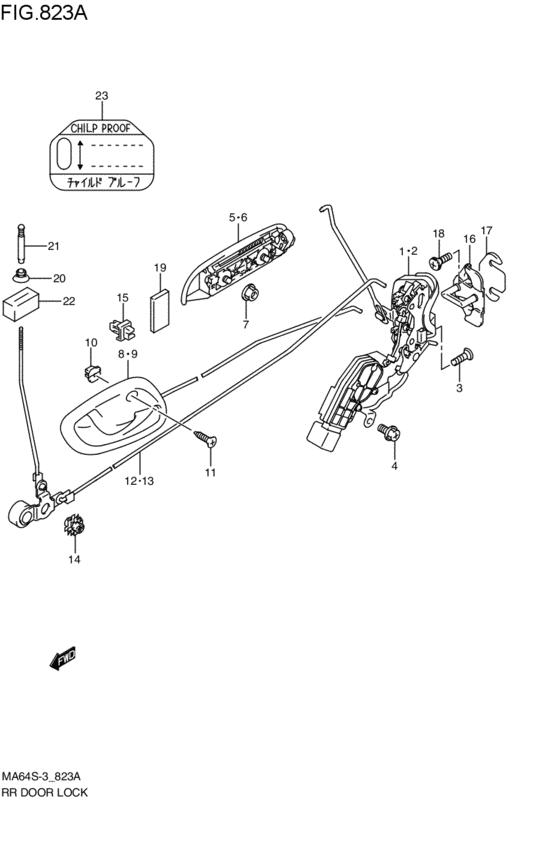

rear door lock (2002-06-01~2003-09-01) 53

#	OEM	Part name
1	82301-84F00-000	ラッチアッシ,リヤドア,ライト
1	82301-84F01-000	LATCH ASSY,RR DR,R
2	82302-84F00-000	ラッチアッシ,リヤドア,レフト
2	82302-84F01-000	LATCH ASSY,RR DR,L
3	09137-06028-000	SCREW(6X18)
4	02162-06123-000	Bolt (6x12)
4	02162-0612B-000	SCREW - Bolt
4	02162-0612A-000	SCREW - Bolt, bracket
5	82801-81A50-Z2J	HANDLE,SIDE DR OUT,R
5	82801-81A51-Z2J	HANDLE,SIDE DR OUT,R
5	82801-81A52-Z2J	HANDLE,SIDE DR OUT,R
5	82801-81A53-Z2J	Handle Assy,fr Dr Out,r
5	82801-81A50-Z2S	HANDLE,SIDE DR OUT,R(SILVER)
5	82801-81A51-Z2S	HANDLE,SIDE DR OUT,R
5	82801-81A52-Z2S	HANDLE,SIDE DR OUT,R
5	82801-81A53-Z2S	Handle Assy,fr Dr Out,r
5	82801-81A50-Z7T	HANDLE,SIDE DR OUT,RH
5	82801-81A51-Z7T	HANDLE,SIDE DR OUT,R
5	82801-81A52-Z7T	HANDLE,SIDE DR OUT,R
5	82801-81A53-Z7T	HANDLE ASSY,SIDE DOOR OUT,RH
6	82802-81A50-Z2J	HANDLE,SIDE DR OUT,L
6	82802-81A51-Z2J	HANDLE,SIDE DR OUT,L
6	82802-81A52-Z2J	HANDLE,SIDE DR OUT,L
6	82802-81A50-Z2S	HANDLE,SIDE DR OUT,L(SILVER)
6	82802-81A51-Z2S	HANDLE,SIDE DR OUT,L
6	82802-81A52-Z2S	HANDLE,SIDE DR OUT,L
6	82802-81A53-Z2S	Handle Assy,fr Dr Out,l
6	82802-81A50-Z7T	HANDLE,SIDE DR OUT,L
6	82802-81A51-Z7T	HANDLE,SIDE DR OUT,L
6	82802-81A52-Z7T	HANDLE,SIDE DR OUT,L
6	82802-81A53-Z7T	Handle Assy,fr Dr Out,l
7	08316-10063-000	Nut
7	08316-1006B-000	NUT
8	83103-76F00-P4Z	HANDLE,RR DR INSIDE,R(GRAY)
9	83104-76F00-P4Z	HANDLE,RR DR INSIDE,L(GRAY)
9	83104-76F01-P4Z	HANDLE,RR DR INSIDE,L
10	09148-05031-000	NUT
11	03521-05163-000	Screw
11	03521-0516A-000	SCREW
12	83270-76F00-000	ROD,RR DOOR INSIDE LOCK,R
13	83280-76F00-000	ROD,RR DOOR INSIDE LOCK,L
14	83261-56B00-000	PIN,FR DOOR INSIDE LOCK ROD
15	83271-60D00-000	CLIP
16	82610-75F00-000	STRIKER,DOOR LATCH
17	78199-78000-000	SPACER,DOOR LOCK STRIKER
18	09137-08006-000	Screw - Screw (8x18)
18	09137-08011-000	SCREW(8X18)
18	09137-08004-000	SCREW(8X18)
19	77591-75000-000	PAD
20	82991-76G00-P4Z	CAP,DR INSIDE LOCK KNOB
21	82982-65D00-P4Z	KNOB,DOOR INSIDE LOCK (GRAY)
22	83211-76G00-000	PAD SIDE DOOR INSIDE LOCK
23	86951-78004-000	CAUTION PLATE,CHILD PROOF

OEM	Part name	Category
02162-06123-000	Bolt (6x12)	rear door lock (2002-06-01~2003-09-01)
02162-0612A-000	SCREW - Bolt, bracket	rear door lock (2002-06-01~2003-09-01)
02162-0612B-000	SCREW - Bolt	rear door lock (2002-06-01~2003-09-01)
03521-05163-000	Screw	rear door lock (2002-06-01~2003-09-01)
03521-0516A-000	SCREW	rear door lock (2002-06-01~2003-09-01)
08316-10063-000	Nut	rear door lock (2002-06-01~2003-09-01)
08316-1006B-000	NUT	rear door lock (2002-06-01~2003-09-01)
09137-06028-000	SCREW(6X18)	rear door lock (2002-06-01~2003-09-01)
09137-08004-000	SCREW(8X18)	rear door lock (2002-06-01~2003-09-01)
09137-08006-000	Screw - Screw (8x18)	rear door lock (2002-06-01~2003-09-01)
09137-08011-000	SCREW(8X18)	rear door lock (2002-06-01~2003-09-01)
09148-05031-000	NUT	rear door lock (2002-06-01~2003-09-01)
77591-75000-000	PAD	rear door lock (2002-06-01~2003-09-01)
78199-78000-000	SPACER,DOOR LOCK STRIKER	rear door lock (2002-06-01~2003-09-01)
82301-84F00-000	ラッチアッシ,リヤドア,ライト	rear door lock (2002-06-01~2003-09-01)
82301-84F01-000	LATCH ASSY,RR DR,R	rear door lock (2002-06-01~2003-09-01)
82302-84F00-000	ラッチアッシ,リヤドア,レフト	rear door lock (2002-06-01~2003-09-01)
82302-84F01-000	LATCH ASSY,RR DR,L	rear door lock (2002-06-01~2003-09-01)
82610-75F00-000	STRIKER,DOOR LATCH	rear door lock (2002-06-01~2003-09-01)
82801-81A50-Z2J	HANDLE,SIDE DR OUT,R	rear door lock (2002-06-01~2003-09-01)
82801-81A50-Z2S	HANDLE,SIDE DR OUT,R(SILVER)	rear door lock (2002-06-01~2003-09-01)
82801-81A50-Z7T	HANDLE,SIDE DR OUT,RH	rear door lock (2002-06-01~2003-09-01)
82801-81A51-Z2J	HANDLE,SIDE DR OUT,R	rear door lock (2002-06-01~2003-09-01)
82801-81A51-Z2S	HANDLE,SIDE DR OUT,R	rear door lock (2002-06-01~2003-09-01)
82801-81A51-Z7T	HANDLE,SIDE DR OUT,R	rear door lock (2002-06-01~2003-09-01)
82801-81A52-Z2J	HANDLE,SIDE DR OUT,R	rear door lock (2002-06-01~2003-09-01)
82801-81A52-Z2S	HANDLE,SIDE DR OUT,R	rear door lock (2002-06-01~2003-09-01)
82801-81A52-Z7T	HANDLE,SIDE DR OUT,R	rear door lock (2002-06-01~2003-09-01)
82801-81A53-Z2J	Handle Assy,fr Dr Out,r	rear door lock (2002-06-01~2003-09-01)
82801-81A53-Z2S	Handle Assy,fr Dr Out,r	rear door lock (2002-06-01~2003-09-01)
82801-81A53-Z7T	HANDLE ASSY,SIDE DOOR OUT,RH	rear door lock (2002-06-01~2003-09-01)
82802-81A50-Z2J	HANDLE,SIDE DR OUT,L	rear door lock (2002-06-01~2003-09-01)
82802-81A50-Z2S	HANDLE,SIDE DR OUT,L(SILVER)	rear door lock (2002-06-01~2003-09-01)
82802-81A50-Z7T	HANDLE,SIDE DR OUT,L	rear door lock (2002-06-01~2003-09-01)
82802-81A51-Z2J	HANDLE,SIDE DR OUT,L	rear door lock (2002-06-01~2003-09-01)
82802-81A51-Z2S	HANDLE,SIDE DR OUT,L	rear door lock (2002-06-01~2003-09-01)
82802-81A51-Z7T	HANDLE,SIDE DR OUT,L	rear door lock (2002-06-01~2003-09-01)
82802-81A52-Z2J	HANDLE,SIDE DR OUT,L	rear door lock (2002-06-01~2003-09-01)
82802-81A52-Z2S	HANDLE,SIDE DR OUT,L	rear door lock (2002-06-01~2003-09-01)
82802-81A52-Z7T	HANDLE,SIDE DR OUT,L	rear door lock (2002-06-01~2003-09-01)
82802-81A53-Z2S	Handle Assy,fr Dr Out,l	rear door lock (2002-06-01~2003-09-01)
82802-81A53-Z7T	Handle Assy,fr Dr Out,l	rear door lock (2002-06-01~2003-09-01)
82982-65D00-P4Z	KNOB,DOOR INSIDE LOCK (GRAY)	rear door lock (2002-06-01~2003-09-01)
82991-76G00-P4Z	CAP,DR INSIDE LOCK KNOB	rear door lock (2002-06-01~2003-09-01)
83103-76F00-P4Z	HANDLE,RR DR INSIDE,R(GRAY)	rear door lock (2002-06-01~2003-09-01)
83104-76F00-P4Z	HANDLE,RR DR INSIDE,L(GRAY)	rear door lock (2002-06-01~2003-09-01)
83104-76F01-P4Z	HANDLE,RR DR INSIDE,L	rear door lock (2002-06-01~2003-09-01)
83211-76G00-000	PAD SIDE DOOR INSIDE LOCK	rear door lock (2002-06-01~2003-09-01)
83261-56B00-000	PIN,FR DOOR INSIDE LOCK ROD	rear door lock (2002-06-01~2003-09-01)
83270-76F00-000	ROD,RR DOOR INSIDE LOCK,R	rear door lock (2002-06-01~2003-09-01)
83271-60D00-000	CLIP	rear door lock (2002-06-01~2003-09-01)
83280-76F00-000	ROD,RR DOOR INSIDE LOCK,L	rear door lock (2002-06-01~2003-09-01)
86951-78004-000	CAUTION PLATE,CHILD PROOF	rear door lock (2002-06-01~2003-09-01)
