| 01550-08163-000 |
Bolt, holder |

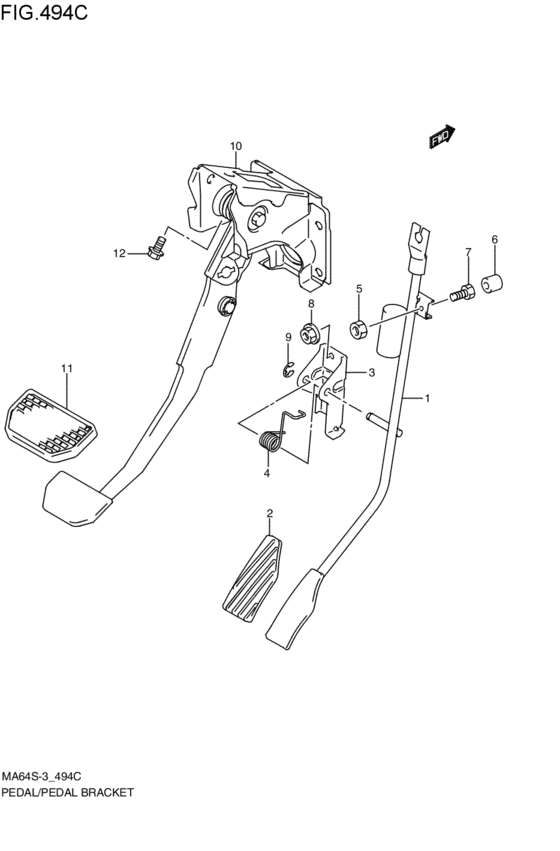

pedal / pedal bracket (2002-06-01~2003-09-01) |
| 01550-0816A-000 |
Bolt - Bolt, rear |
pedal / pedal bracket (2002-06-01~2003-09-01) |
| 01550-0816B-000 |
Bolt |
pedal / pedal bracket (2002-06-01~2003-09-01) |
| 08310-00063-000 |
Nut |
pedal / pedal bracket (2002-06-01~2003-09-01) |
| 08310-0006A-000 |
NUT |
pedal / pedal bracket (2002-06-01~2003-09-01) |
| 08310-0006B-000 |
NUT - Nut gear shift link rod |
pedal / pedal bracket (2002-06-01~2003-09-01) |
| 08332-11073-000 |
E ring |
pedal / pedal bracket (2002-06-01~2003-09-01) |
| 08332-1107A-000 |
E RING |
pedal / pedal bracket (2002-06-01~2003-09-01) |
| 09100-06150-000 |
BOLT(6X31) - Bolt, adjuster |
pedal / pedal bracket (2002-06-01~2003-09-01) |
| 09159-06076-000 |
NUT |
pedal / pedal bracket (2002-06-01~2003-09-01) |
| 09251-05007-000 |
CAP(OD:13.6) |
pedal / pedal bracket (2002-06-01~2003-09-01) |
| 49410-78F01-000 |
PEDAL,ACCELERATOR |
pedal / pedal bracket (2002-06-01~2003-09-01) |
| 49451-60B00-000 |
PAD,ACCELERATOR PEDAL |
pedal / pedal bracket (2002-06-01~2003-09-01) |
| 49491-76F00-000 |
SPRING,ACCEL PEDAL |
pedal / pedal bracket (2002-06-01~2003-09-01) |
| 49510-80G50-000 |
BRACKET,ACCELERATOR PEDAL |
pedal / pedal bracket (2002-06-01~2003-09-01) |
| 49511-76G00-000 |
Bracket, accelerator pedal |
pedal / pedal bracket (2002-06-01~2003-09-01) |
| 49600-82H10-000 |
PEDAL,BRAKE |
pedal / pedal bracket (2002-06-01~2003-09-01) |
| 49751-58J10-000 |
PAD,PEDAL |
pedal / pedal bracket (2002-06-01~2003-09-01) |
| 49751-86300-000 |
Pad, brake pedal |
pedal / pedal bracket (2002-06-01~2003-09-01) |
