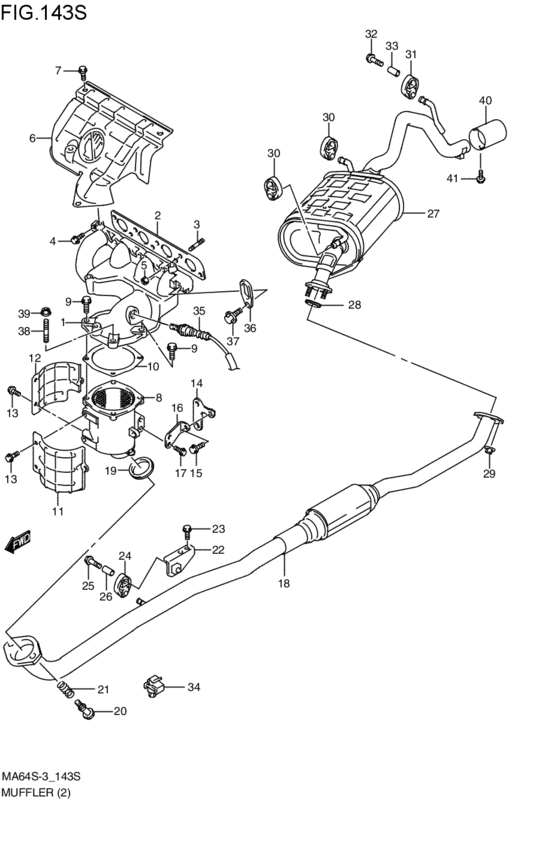

| 01550-08163-000 |
Bolt, holder |
muffler (K10A; 2002-06-01~2003-09-01) |
| 01550-0816A-000 |
Bolt - Bolt, rear |
muffler (K10A; 2002-06-01~2003-09-01) |
| 01550-0816B-000 |
Bolt |
muffler (K10A; 2002-06-01~2003-09-01) |
| 01550-08353-000 |
Bolt, rear |
muffler (K10A; 2002-06-01~2003-09-01) |
| 01550-0835A-000 |
Bolt |
muffler (K10A; 2002-06-01~2003-09-01) |
| 01550-0835B-000 |
Bolt |
muffler (K10A; 2002-06-01~2003-09-01) |
| 01550-10253-000 |
Bolt - Bolt, rr swgarm bracket |
muffler (K10A; 2002-06-01~2003-09-01) |
| 01550-1025A-000 |
Bolt - Bolt, drive gear |
muffler (K10A; 2002-06-01~2003-09-01) |
| 01550-1025B-000 |
Bolt - Bolt, rr swgarm bracket, l |
muffler (K10A; 2002-06-01~2003-09-01) |
| 02162-06123-000 |
Bolt (6x12) |
muffler (K10A; 2002-06-01~2003-09-01) |
| 02162-0612A-000 |
SCREW - Bolt, bracket |
muffler (K10A; 2002-06-01~2003-09-01) |
| 02162-0612B-000 |
SCREW - Bolt |
muffler (K10A; 2002-06-01~2003-09-01) |
| 09103-06168-000 |
BOLT(6X10) |
muffler (K10A; 2002-06-01~2003-09-01) |
| 09103-10315-000 |
BOLT(10X30) |
muffler (K10A; 2002-06-01~2003-09-01) |
| 09108-10122-000 |
BOLT,STUD |
muffler (K10A; 2002-06-01~2003-09-01) |
| 09119-10041-000 |
BOLT(10X65) |
muffler (K10A; 2002-06-01~2003-09-01) |
| 09140-10031-000 |
NUT |
muffler (K10A; 2002-06-01~2003-09-01) |
| 09159-08056-000 |
NUT |
muffler (K10A; 2002-06-01~2003-09-01) |
| 09159-10049-000 |
Nut |
muffler (K10A; 2002-06-01~2003-09-01) |
| 09159-10102-000 |
NUT |
muffler (K10A; 2002-06-01~2003-09-01) |
| 09180-08057-000 |
Spacer |
muffler (K10A; 2002-06-01~2003-09-01) |
| 09180-08227-000 |
SPACER(8.2X12.5X23.5) |
muffler (K10A; 2002-06-01~2003-09-01) |
| 11851-62B00-000 |
HOOK |
muffler (K10A; 2002-06-01~2003-09-01) |
| 14100-78870-000 |
CASE SET,CATALYST |
muffler (K10A; 2002-06-01~2003-09-01) |
| 14111-78F01-000 |
MANIFOLD,EXH |
muffler (K10A; 2002-06-01~2003-09-01) |
| 14118-70G50-000 |
BOLT,EXH MANF 8X25 |
muffler (K10A; 2002-06-01~2003-09-01) |
| 14119-81402-000 |
STUD BOLT |
muffler (K10A; 2002-06-01~2003-09-01) |
| 14131-78F01-000 |
COVER,EXH MANIFOLD |
muffler (K10A; 2002-06-01~2003-09-01) |
| 14140-78F00-000 |
GASKET,EXH MANF |
muffler (K10A; 2002-06-01~2003-09-01) |
| 14171-78F00-000 |
COVER,CATALYST CASE,FR |
muffler (K10A; 2002-06-01~2003-09-01) |
| 14171-78F10-000 |
COVER,CATALYST CASE,R |
muffler (K10A; 2002-06-01~2003-09-01) |
| 14172-78F01-000 |
BRACKET,CTLST CASE N0.1 |
muffler (K10A; 2002-06-01~2003-09-01) |
| 14173-78F01-000 |
BRACKET,CTLST CASE N0.2 |
muffler (K10A; 2002-06-01~2003-09-01) |
| 14181-78F00-000 |
GASKET,CATALYST CASE |
muffler (K10A; 2002-06-01~2003-09-01) |
| 14182-60B00-000 |
GASKET,EXH PIPE |
muffler (K10A; 2002-06-01~2003-09-01) |
| 14182-60B01-000 |
Gasket,exh Pipe |
muffler (K10A; 2002-06-01~2003-09-01) |
| 14183-76A00-000 |
RING,SEAL EXH PIPE |
muffler (K10A; 2002-06-01~2003-09-01) |
| 14190-78F10-000 |
PIPE,EXHAUST |
muffler (K10A; 2002-06-01~2003-09-01) |
| 14281-75F00-000 |
Mounting |
muffler (K10A; 2002-06-01~2003-09-01) |
| 14281-75F01-000 |
MOUNTING,MUF |
muffler (K10A; 2002-06-01~2003-09-01) |
| 14281-80G00-000 |
MOUNTING,MUF |
muffler (K10A; 2002-06-01~2003-09-01) |
| 14284-75F00-000 |
BRACKET,EXH PIPE |
muffler (K10A; 2002-06-01~2003-09-01) |
| 14300-82H00-000 |
MUFFLER |
muffler (K10A; 2002-06-01~2003-09-01) |
| 14492-67D00-000 |
SPRING,EXH PIPE |
muffler (K10A; 2002-06-01~2003-09-01) |
| 14492-82600-000 |
Spring |
muffler (K10A; 2002-06-01~2003-09-01) |
| 18213-76G51-000 |
SENSOR,OXYGEN |
muffler (K10A; 2002-06-01~2003-09-01) |
| 18214-75F00-000 |
CLAMP |
muffler (K10A; 2002-06-01~2003-09-01) |
