MA64S

Suzuki WAGON-R-PLUS-SOLIO-WIDE · 2000 · 2,280 parts · 110 categories

2,280 items

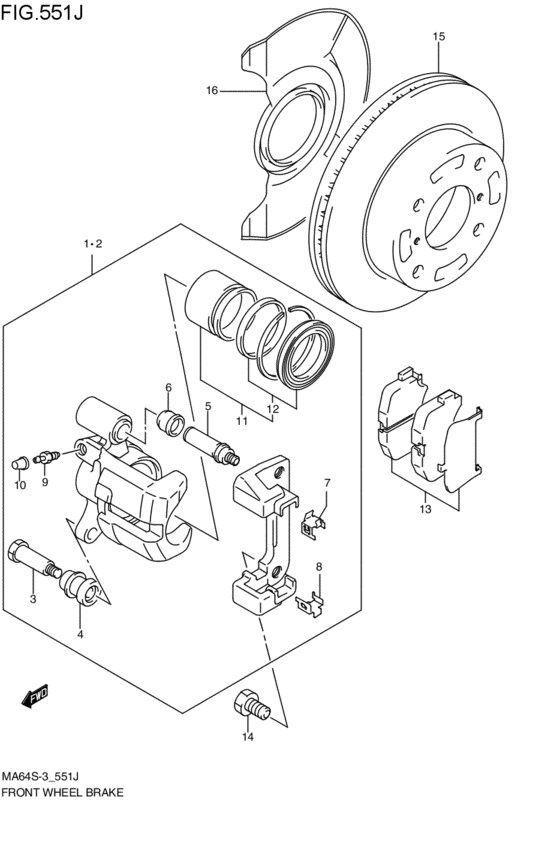

front wheel brakes (2002-06-01~2003-09-01) 27

#	OEM	Part name
1	55101-75F10-999	キャリパ,フロントブレーキ,ライト
1	55101-75F12-999	CALIPER,FR BRAKE,R
1	55101-75F13-999	Caliper,fr Brake,r
2	55102-75F10-999	キャリパ,フロントブレーキ,レフト
2	55102-75F12-999	CALIPER,FR BRAKE,L
2	55102-75F13-999	Caliper,fr Brake,l
3	55191-75F00-000	PIN,CYLINDER SLIDE NO.1
4	55193-75F00-000	BUSH,PIN SLIDE
5	55192-75F00-000	PIN,CYLINDER SLIDE NO.2
6	55201-75F00-000	BOOT,PIN
7	55234-75F00-000	PLATE,PAD SUPPORT NO.1
8	55235-75F00-000	PLATE,PAD SUPPORT NO.2
9	55473-82030-000	Plug, bleeder - Plug, bleeder (m10x1.0)
9	55151-78451-000	PLUG,BLEEDER
10	55156-66310-000	CAP,BLEEDER PLUG - Cap, bleeder plug
11	55830-78A00-000	Piston/seal set
11	55830-78A05-000	Piston / Seal Set
12	55100-82820-000	Seal set,piston
12	55100-82822-000	SEAL SET,PISTON
12	55100-82823-000	Seal Set,piston
12	55100-82824-000	Seal Set,Piston
13	55810-75F32-000	PAD SET,DISC BRAKE
14	09117-12006-000	BOLT(12X27)
15	55311-75F00-000	ディスク,フロントブレーキ
15	55311-75F11-000	DISC,FR BRAKE
16	55321-60B30-000	カバー,フロントブレーキディスクダスト
16	55321-76G10-000	COVER,FR BRAKE DISC DUST

OEM	Part name	Category
09117-12006-000	BOLT(12X27)	front wheel brakes (2002-06-01~2003-09-01)
55100-82820-000	Seal set,piston	front wheel brakes (2002-06-01~2003-09-01)
55100-82822-000	SEAL SET,PISTON	front wheel brakes (2002-06-01~2003-09-01)
55100-82823-000	Seal Set,piston	front wheel brakes (2002-06-01~2003-09-01)
55100-82824-000	Seal Set,Piston	front wheel brakes (2002-06-01~2003-09-01)
55101-75F10-999	キャリパ,フロントブレーキ,ライト	front wheel brakes (2002-06-01~2003-09-01)
55101-75F12-999	CALIPER,FR BRAKE,R	front wheel brakes (2002-06-01~2003-09-01)
55101-75F13-999	Caliper,fr Brake,r	front wheel brakes (2002-06-01~2003-09-01)
55102-75F10-999	キャリパ,フロントブレーキ,レフト	front wheel brakes (2002-06-01~2003-09-01)
55102-75F12-999	CALIPER,FR BRAKE,L	front wheel brakes (2002-06-01~2003-09-01)
55102-75F13-999	Caliper,fr Brake,l	front wheel brakes (2002-06-01~2003-09-01)
55151-78451-000	PLUG,BLEEDER	front wheel brakes (2002-06-01~2003-09-01)
55156-66310-000	CAP,BLEEDER PLUG - Cap, bleeder plug	front wheel brakes (2002-06-01~2003-09-01)
55191-75F00-000	PIN,CYLINDER SLIDE NO.1	front wheel brakes (2002-06-01~2003-09-01)
55192-75F00-000	PIN,CYLINDER SLIDE NO.2	front wheel brakes (2002-06-01~2003-09-01)
55193-75F00-000	BUSH,PIN SLIDE	front wheel brakes (2002-06-01~2003-09-01)
55201-75F00-000	BOOT,PIN	front wheel brakes (2002-06-01~2003-09-01)
55234-75F00-000	PLATE,PAD SUPPORT NO.1	front wheel brakes (2002-06-01~2003-09-01)
55235-75F00-000	PLATE,PAD SUPPORT NO.2	front wheel brakes (2002-06-01~2003-09-01)
55311-75F00-000	ディスク,フロントブレーキ	front wheel brakes (2002-06-01~2003-09-01)
55311-75F11-000	DISC,FR BRAKE	front wheel brakes (2002-06-01~2003-09-01)
55321-60B30-000	カバー,フロントブレーキディスクダスト	front wheel brakes (2002-06-01~2003-09-01)
55321-76G10-000	COVER,FR BRAKE DISC DUST	front wheel brakes (2002-06-01~2003-09-01)
55473-82030-000	Plug, bleeder - Plug, bleeder (m10x1.0)	front wheel brakes (2002-06-01~2003-09-01)
55810-75F32-000	PAD SET,DISC BRAKE	front wheel brakes (2002-06-01~2003-09-01)
55830-78A00-000	Piston/seal set	front wheel brakes (2002-06-01~2003-09-01)
55830-78A05-000	Piston / Seal Set	front wheel brakes (2002-06-01~2003-09-01)
