| 01547-06553-000 |
Bolt |

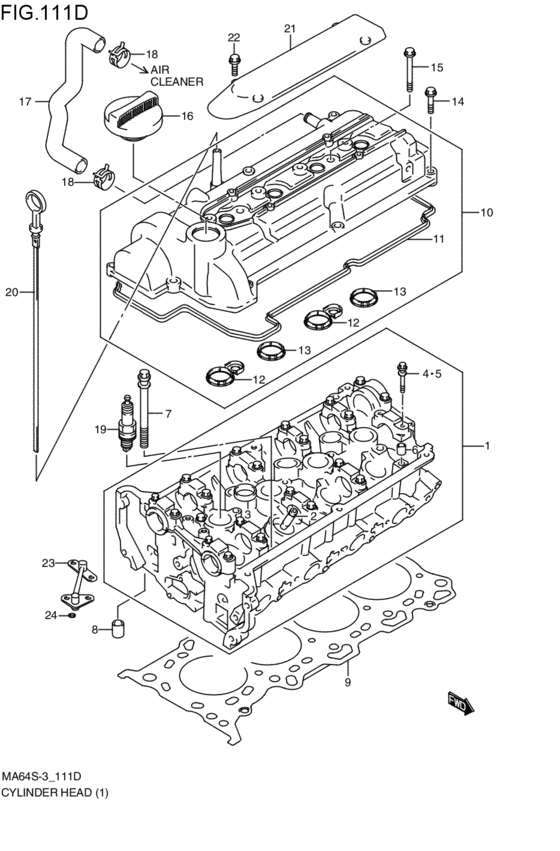

Cylinder head (K10A; 2002-06-01~2003-09-01) |
| 01547-0655B-000 |
Bolt |
Cylinder head (K10A; 2002-06-01~2003-09-01) |
| 04211-13189-000 |
PIN |
Cylinder head (K10A; 2002-06-01~2003-09-01) |
| 09103-06229-000 |
BOLT(6X35) |
Cylinder head (K10A; 2002-06-01~2003-09-01) |
| 09103-06232-000 |
BOLT(6X16) |
Cylinder head (K10A; 2002-06-01~2003-09-01) |
| 09206-08001-000 |
PIN(8X11) |
Cylinder head (K10A; 2002-06-01~2003-09-01) |
| 09241-20006-000 |
PLUG - Plug, crank pin oil |
Cylinder head (K10A; 2002-06-01~2003-09-01) |
| 09401-18404-000 |
CLIP |
Cylinder head (K10A; 2002-06-01~2003-09-01) |
| 09482-00448-000 |
PLUG,SPARK(NGK DCPR7E) |
Cylinder head (K10A; 2002-06-01~2003-09-01) |
| 09482-00449-000 |
PLUG,SPARK(XU22EPR-U) |
Cylinder head (K10A; 2002-06-01~2003-09-01) |
| 11100-78F83-000 |
ヘッドアッシ,シリンダ |
Cylinder head (K10A; 2002-06-01~2003-09-01) |
| 11100-78F85-000 |
HEAD ASSY,CYLINDER |
Cylinder head (K10A; 2002-06-01~2003-09-01) |
| 11115-73G01-001 |
GUIDE,VALVE |
Cylinder head (K10A; 2002-06-01~2003-09-01) |
| 11117-73G00-000 |
BOLT,CYLINDER HEAD |
Cylinder head (K10A; 2002-06-01~2003-09-01) |
| 11128-73G60-000 |
BOLT,CAMSHAFT HOUSING 6X36 |
Cylinder head (K10A; 2002-06-01~2003-09-01) |
| 11128-78G70-000 |
BOLT,CAMSHAFT HOUSING 6X42 |
Cylinder head (K10A; 2002-06-01~2003-09-01) |
| 11141-75F10-000 |
GASKET,CYL HEAD |
Cylinder head (K10A; 2002-06-01~2003-09-01) |
| 11150-78G71-000 |
PIPE,CYLINDER HEAD OIL |
Cylinder head (K10A; 2002-06-01~2003-09-01) |
| 11157-78G70-000 |
O-RING,OIL PIPE |
Cylinder head (K10A; 2002-06-01~2003-09-01) |
| 11170-78F90-000 |
COVER ASSY,CYLINDER HEAD |
Cylinder head (K10A; 2002-06-01~2003-09-01) |
| 11178-78F90-000 |
GASKET,SPARK PLUG HOLE NO.1 |
Cylinder head (K10A; 2002-06-01~2003-09-01) |
| 11179-78F90-000 |
GASKET,SPARK PLUG HOLE NO.2 |
Cylinder head (K10A; 2002-06-01~2003-09-01) |
| 11180-78F00-000 |
Cover,cyl head upper |
Cylinder head (K10A; 2002-06-01~2003-09-01) |
| 11189-78F90-000 |
GASKET,CYL HEAD COVER |
Cylinder head (K10A; 2002-06-01~2003-09-01) |
| 11191-75F00-000 |
HOSE,BREATHER |
Cylinder head (K10A; 2002-06-01~2003-09-01) |
| 16910-78F00-000 |
GAUGE,OIL LEVEL |
Cylinder head (K10A; 2002-06-01~2003-09-01) |
| 16920-83G00-000 |
Cap,oil filler |
Cylinder head (K10A; 2002-06-01~2003-09-01) |
| 16920-83G01-000 |
CAP OIL FILLER |
Cylinder head (K10A; 2002-06-01~2003-09-01) |
