Search › Model › MA64S

MA64S

Suzuki WAGON-R-PLUS-SOLIO-WIDE · 2000 · 2,280 parts · 110 categories

2,280 items

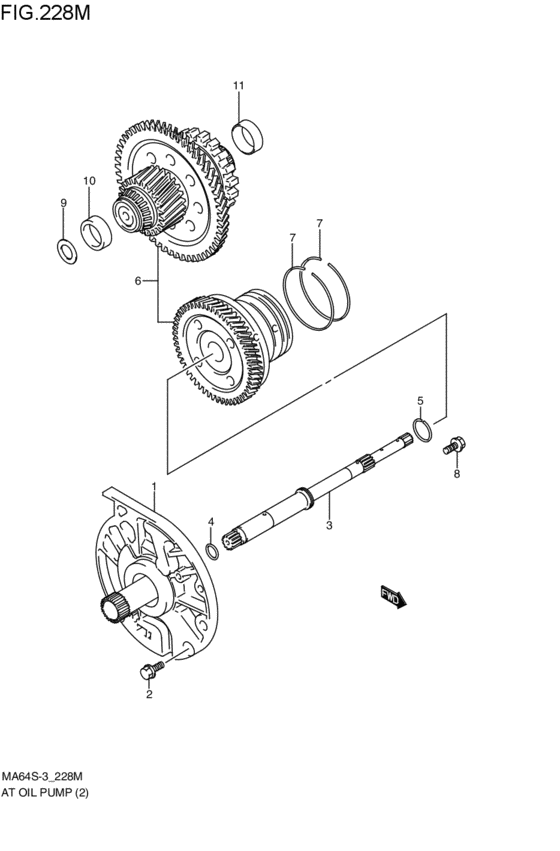

at - oil pump (K10A; 2002-06-01~2003-09-01) 26

#	OEM	Part name
1	22800-78G11-000	PUMP ASSY,OIL
2	22863-78G30-000	BOLT,OIL PUMP
3	24111-78G30-000	SHAFT,INPUT
4	24112-78G10-000	O-RING,INPUT SHAFT
5	26682-56E00-000	RING,INPUT SHAFT SEAL
6	24120-83GW0-000	GEAR SET,REDUCTION
7	24127-78G10-000	RING,LOW CLUTCH SEAL
8	24128-78G10-000	BOLT,DRUM SUPPORT TO CASE
9	24160-78G10-000	SHIM,COUNTERSHAFT BRG
9	24161-78G10-000	SHIM,COUNTERSHAFT BRG
9	24162-78G10-000	SHIM,COUNTERSHAFT BRG
9	24163-78G10-000	SHIM,COUNTERSHAFT BRG
9	24164-78G10-000	SHIM,COUNTERSHAFT BRG
9	24165-78G10-000	SHIM,COUNTERSHAFT BRG
9	24166-78G10-000	SHIM,COUNTERSHAFT BRG
9	24167-78G10-000	SHIM,COUNTERSHAFT BRG
9	24168-78G10-000	SHIM,COUNTERSHAFT BRG
9	24169-78G10-000	SHIM,COUNTERSHAFT BRG
9	24170-78G10-000	SHIM,COUNTERSHAFT BRG
9	24171-78G10-000	SHIM,COUNTERSHAFT BRG
9	24172-78G10-000	SHIM,COUNTERSHAFT BRG
9	24173-78G10-000	SHIM,COUNTERSHAFT BRG
9	24174-78G10-000	SHIM,COUNTERSHAFT BRG
9	24175-78G10-000	SHIM,COUNTERSHAFT BRG
10	24148-78G10-000	CUP,COUNTER R BRG
11	24149-78G30-000	CUP,COUNTER L BRG

OEM	Part name	Category
22800-78G11-000	PUMP ASSY,OIL	at - oil pump (K10A; 2002-06-01~2003-09-01)
22863-78G30-000	BOLT,OIL PUMP	at - oil pump (K10A; 2002-06-01~2003-09-01)
24111-78G30-000	SHAFT,INPUT	at - oil pump (K10A; 2002-06-01~2003-09-01)
24112-78G10-000	O-RING,INPUT SHAFT	at - oil pump (K10A; 2002-06-01~2003-09-01)
24120-83GW0-000	GEAR SET,REDUCTION	at - oil pump (K10A; 2002-06-01~2003-09-01)
24127-78G10-000	RING,LOW CLUTCH SEAL	at - oil pump (K10A; 2002-06-01~2003-09-01)
24128-78G10-000	BOLT,DRUM SUPPORT TO CASE	at - oil pump (K10A; 2002-06-01~2003-09-01)
24148-78G10-000	CUP,COUNTER R BRG	at - oil pump (K10A; 2002-06-01~2003-09-01)
24149-78G30-000	CUP,COUNTER L BRG	at - oil pump (K10A; 2002-06-01~2003-09-01)
24160-78G10-000	SHIM,COUNTERSHAFT BRG	at - oil pump (K10A; 2002-06-01~2003-09-01)
24161-78G10-000	SHIM,COUNTERSHAFT BRG	at - oil pump (K10A; 2002-06-01~2003-09-01)
24162-78G10-000	SHIM,COUNTERSHAFT BRG	at - oil pump (K10A; 2002-06-01~2003-09-01)
24163-78G10-000	SHIM,COUNTERSHAFT BRG	at - oil pump (K10A; 2002-06-01~2003-09-01)
24164-78G10-000	SHIM,COUNTERSHAFT BRG	at - oil pump (K10A; 2002-06-01~2003-09-01)
24165-78G10-000	SHIM,COUNTERSHAFT BRG	at - oil pump (K10A; 2002-06-01~2003-09-01)
24166-78G10-000	SHIM,COUNTERSHAFT BRG	at - oil pump (K10A; 2002-06-01~2003-09-01)
24167-78G10-000	SHIM,COUNTERSHAFT BRG	at - oil pump (K10A; 2002-06-01~2003-09-01)
24168-78G10-000	SHIM,COUNTERSHAFT BRG	at - oil pump (K10A; 2002-06-01~2003-09-01)
24169-78G10-000	SHIM,COUNTERSHAFT BRG	at - oil pump (K10A; 2002-06-01~2003-09-01)
24170-78G10-000	SHIM,COUNTERSHAFT BRG	at - oil pump (K10A; 2002-06-01~2003-09-01)
24171-78G10-000	SHIM,COUNTERSHAFT BRG	at - oil pump (K10A; 2002-06-01~2003-09-01)
24172-78G10-000	SHIM,COUNTERSHAFT BRG	at - oil pump (K10A; 2002-06-01~2003-09-01)
24173-78G10-000	SHIM,COUNTERSHAFT BRG	at - oil pump (K10A; 2002-06-01~2003-09-01)
24174-78G10-000	SHIM,COUNTERSHAFT BRG	at - oil pump (K10A; 2002-06-01~2003-09-01)
24175-78G10-000	SHIM,COUNTERSHAFT BRG	at - oil pump (K10A; 2002-06-01~2003-09-01)
26682-56E00-000	RING,INPUT SHAFT SEAL	at - oil pump (K10A; 2002-06-01~2003-09-01)

Source: Public OEM parts-catalog data
Variants: 2 / 14
Category: 110
Collected: 2026-08-01
