Search › Model › MA63

MA63

Toyota CELICA · 1982 · 6,163 parts · 195 categories

6,163 items

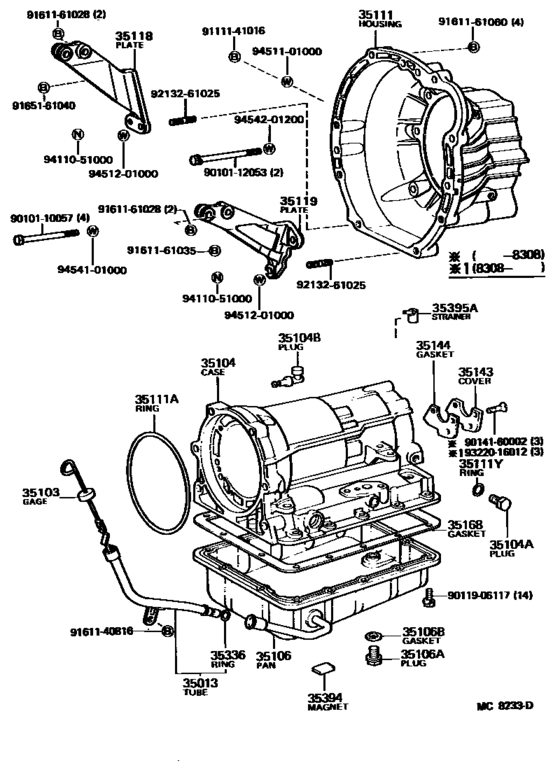

Transmission Case & Oil Pan (Atm) ([02.1982 - ] (8202- )MA63) 53

#	OEM	Part name
35013	35013-22150	Tube Sub-Assy, Transmission Oil Filler
35103	35103-30130	Gage Sub-Assy, Transmission Oil Level
35103	35103-30131	Gage Sub-Assy, Transmission Oil Level
35104	35104-26011	Case Sub-Assy, Automatic Transmission
35104	35104-26030	Case Sub-Assy, Automatic Transmission
35104	35104-26020	Case Sub-Assy, Automatic Transmission
35104	35104-26021	Case Sub-Assy, Automatic Transmission
35104	90341-08001	Plug, Transaxle Case, No.1
35104	90930-03069	Plug, Breather, No.1 (Atm)
35106	35106-30050	Pan Sub-Assy, Automatic Transmission Oil
35106	35106-30051	Pan Sub-Assy, Automatic Transmission Oil
35106	90341-10003	Plug Sub-Assy, Drain (Atm)
35106	90341-10011	Drain Plug (No Type)
35106	90341-10006	Plug (For Transfer Oil Pan)
35106	35178-30010	Drain Plug Gasket
35111	35111-14070	Housing, Automatic Transmission
35111	90301-99006	Ring, O (For Automatic Transmission Housing)
35111	90301-99054	Ring, O (For Automatic Transmission Housing)
35111	90301-06196	O Ring, Transaxle Case, No.1
35118	33118-22040	Plate, Stiffener, Rh(Mtm)
35119	33119-22030	Plate, Stiffener, Lh(Mtm)
35143	35143-22010	Cover, Transmission Case, Rear
35144	35144-22010	Gasket, Transmission Case Rear Cover
35144	35144-28010	Gasket, Transmission Case Rear Cover
35168	35168-22011	Gasket, Automatic Transmission Oil Pan
35336	90301-09173	Ring, O(For Transmission Oil Filler Tube)
35394	35394-30011	Magnet, Oil Cleaner (For Transmission)
35395	35395-40010	Strainer, Governor Oil
9010110057	90101-10057	New Genuine Part
9010110057	90105-10190	New Genuine Part
9010112053	90101-12053	New Genuine Part
9010112053	90105-12144	New Genuine Part
9011906117	90119-06117	Bolt (For Automatic Transmission Oil Pan)
9011906117	90119-06173	Bolt, Stud (For Automatic Transmission Oil Pan Setting)
9014160002	90141-60002	New Genuine Part
9014160002	93220-16012	SCREW
9111141016	91111-41016	Bolt, Set (For Rear Brake Drum Setting)
9111141016	91111-51016	Bolt, Set (For Rear Brake Drum Setting)
9161140816	91611-40816	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161140816	91611-B0816	Bolt
9161161028	91611-61028	Bolt(For Transaxle Case & Engine Setting)
9161161028	91612-61028	Bolt(For Transaxle Case & Engine Setting)
9161161035	91611-61035	BOLT
9161161035	91612-61035	Bolt(For Hybrid Vehicle Transaxle & Engine Setting)
9161161060	91611-61060	Bolt(for Clutch Release Cylinder Setting)
9161161060	91612-61060	Bolt(for Clutch Release Cylinder Setting)
9165161040	91651-61040	Bolt (For Transfer Case)
9213261025	92132-61025	New Genuine Part
9411051000	94110-51000	Nut(For Steering Center Arm)
9451101000	94511-01000	Washer(For Rear Drive Shaft)
9451201000	94512-01000	Washer, No.1 (For Propeller Shaft & Differential Setting)
9454101000	94541-01000	New Genuine Part
9454201200	94542-01200	New Genuine Part

OEM	Part name	Category
33118-22040	Plate, Stiffener, Rh(Mtm)	Transmission Case & Oil Pan (Atm) ([02.1982 - ] (8202- )MA63)
33119-22030	Plate, Stiffener, Lh(Mtm)	Transmission Case & Oil Pan (Atm) ([02.1982 - ] (8202- )MA63)
35013-22150	Tube Sub-Assy, Transmission Oil Filler	Transmission Case & Oil Pan (Atm) ([02.1982 - ] (8202- )MA63)
35103-30130	Gage Sub-Assy, Transmission Oil Level	Transmission Case & Oil Pan (Atm) ([02.1982 - ] (8202- )MA63)
35103-30131	Gage Sub-Assy, Transmission Oil Level	Transmission Case & Oil Pan (Atm) ([02.1982 - ] (8202- )MA63)
35104-26011	Case Sub-Assy, Automatic Transmission	Transmission Case & Oil Pan (Atm) ([02.1982 - ] (8202- )MA63)
35104-26020	Case Sub-Assy, Automatic Transmission	Transmission Case & Oil Pan (Atm) ([02.1982 - ] (8202- )MA63)
35104-26021	Case Sub-Assy, Automatic Transmission	Transmission Case & Oil Pan (Atm) ([02.1982 - ] (8202- )MA63)
35104-26030	Case Sub-Assy, Automatic Transmission	Transmission Case & Oil Pan (Atm) ([02.1982 - ] (8202- )MA63)
35106-30050	Pan Sub-Assy, Automatic Transmission Oil	Transmission Case & Oil Pan (Atm) ([02.1982 - ] (8202- )MA63)
35106-30051	Pan Sub-Assy, Automatic Transmission Oil	Transmission Case & Oil Pan (Atm) ([02.1982 - ] (8202- )MA63)
35111-14070	Housing, Automatic Transmission	Transmission Case & Oil Pan (Atm) ([02.1982 - ] (8202- )MA63)
35143-22010	Cover, Transmission Case, Rear	Transmission Case & Oil Pan (Atm) ([02.1982 - ] (8202- )MA63)
35144-22010	Gasket, Transmission Case Rear Cover	Transmission Case & Oil Pan (Atm) ([02.1982 - ] (8202- )MA63)
35144-28010	Gasket, Transmission Case Rear Cover	Transmission Case & Oil Pan (Atm) ([02.1982 - ] (8202- )MA63)
35168-22011	Gasket, Automatic Transmission Oil Pan	Transmission Case & Oil Pan (Atm) ([02.1982 - ] (8202- )MA63)
35178-30010	Drain Plug Gasket	Transmission Case & Oil Pan (Atm) ([02.1982 - ] (8202- )MA63)
35394-30011	Magnet, Oil Cleaner (For Transmission)	Transmission Case & Oil Pan (Atm) ([02.1982 - ] (8202- )MA63)
35395-40010	Strainer, Governor Oil	Transmission Case & Oil Pan (Atm) ([02.1982 - ] (8202- )MA63)
90101-10057	New Genuine Part	Transmission Case & Oil Pan (Atm) ([02.1982 - ] (8202- )MA63)
90101-12053	New Genuine Part	Transmission Case & Oil Pan (Atm) ([02.1982 - ] (8202- )MA63)
90105-10190	New Genuine Part	Transmission Case & Oil Pan (Atm) ([02.1982 - ] (8202- )MA63)
90105-12144	New Genuine Part	Transmission Case & Oil Pan (Atm) ([02.1982 - ] (8202- )MA63)
90119-06117	Bolt (For Automatic Transmission Oil Pan)	Transmission Case & Oil Pan (Atm) ([02.1982 - ] (8202- )MA63)
90119-06173	Bolt, Stud (For Automatic Transmission Oil Pan Setting)	Transmission Case & Oil Pan (Atm) ([02.1982 - ] (8202- )MA63)
90141-60002	New Genuine Part	Transmission Case & Oil Pan (Atm) ([02.1982 - ] (8202- )MA63)
90301-06196	O Ring, Transaxle Case, No.1	Transmission Case & Oil Pan (Atm) ([02.1982 - ] (8202- )MA63)
90301-09173	Ring, O(For Transmission Oil Filler Tube)	Transmission Case & Oil Pan (Atm) ([02.1982 - ] (8202- )MA63)
90301-99006	Ring, O (For Automatic Transmission Housing)	Transmission Case & Oil Pan (Atm) ([02.1982 - ] (8202- )MA63)
90301-99054	Ring, O (For Automatic Transmission Housing)	Transmission Case & Oil Pan (Atm) ([02.1982 - ] (8202- )MA63)
90341-08001	Plug, Transaxle Case, No.1	Transmission Case & Oil Pan (Atm) ([02.1982 - ] (8202- )MA63)
90341-10003	Plug Sub-Assy, Drain (Atm)	Transmission Case & Oil Pan (Atm) ([02.1982 - ] (8202- )MA63)
90341-10006	Plug (For Transfer Oil Pan)	Transmission Case & Oil Pan (Atm) ([02.1982 - ] (8202- )MA63)
90341-10011	Drain Plug (No Type)	Transmission Case & Oil Pan (Atm) ([02.1982 - ] (8202- )MA63)
90930-03069	Plug, Breather, No.1 (Atm)	Transmission Case & Oil Pan (Atm) ([02.1982 - ] (8202- )MA63)
91111-41016	Bolt, Set (For Rear Brake Drum Setting)	Transmission Case & Oil Pan (Atm) ([02.1982 - ] (8202- )MA63)
91111-51016	Bolt, Set (For Rear Brake Drum Setting)	Transmission Case & Oil Pan (Atm) ([02.1982 - ] (8202- )MA63)
91611-40816	Screw Or Bolt(For Valve Rocker Shaft Lock)	Transmission Case & Oil Pan (Atm) ([02.1982 - ] (8202- )MA63)
91611-61028	Bolt(For Transaxle Case & Engine Setting)	Transmission Case & Oil Pan (Atm) ([02.1982 - ] (8202- )MA63)
91611-61035	BOLT	Transmission Case & Oil Pan (Atm) ([02.1982 - ] (8202- )MA63)
91611-61060	Bolt(for Clutch Release Cylinder Setting)	Transmission Case & Oil Pan (Atm) ([02.1982 - ] (8202- )MA63)
91611-B0816	Bolt	Transmission Case & Oil Pan (Atm) ([02.1982 - ] (8202- )MA63)
91612-61028	Bolt(For Transaxle Case & Engine Setting)	Transmission Case & Oil Pan (Atm) ([02.1982 - ] (8202- )MA63)
91612-61035	Bolt(For Hybrid Vehicle Transaxle & Engine Setting)	Transmission Case & Oil Pan (Atm) ([02.1982 - ] (8202- )MA63)
91612-61060	Bolt(for Clutch Release Cylinder Setting)	Transmission Case & Oil Pan (Atm) ([02.1982 - ] (8202- )MA63)
91651-61040	Bolt (For Transfer Case)	Transmission Case & Oil Pan (Atm) ([02.1982 - ] (8202- )MA63)
92132-61025	New Genuine Part	Transmission Case & Oil Pan (Atm) ([02.1982 - ] (8202- )MA63)
93220-16012	SCREW	Transmission Case & Oil Pan (Atm) ([02.1982 - ] (8202- )MA63)
94110-51000	Nut(For Steering Center Arm)	Transmission Case & Oil Pan (Atm) ([02.1982 - ] (8202- )MA63)
94511-01000	Washer(For Rear Drive Shaft)	Transmission Case & Oil Pan (Atm) ([02.1982 - ] (8202- )MA63)
94512-01000	Washer, No.1 (For Propeller Shaft & Differential Setting)	Transmission Case & Oil Pan (Atm) ([02.1982 - ] (8202- )MA63)
94541-01000	New Genuine Part	Transmission Case & Oil Pan (Atm) ([02.1982 - ] (8202- )MA63)
94542-01200	New Genuine Part	Transmission Case & Oil Pan (Atm) ([02.1982 - ] (8202- )MA63)
