Search › Model › MA63

MA63

Toyota CELICA · 1982 · 6,163 parts · 195 categories

6,163 items

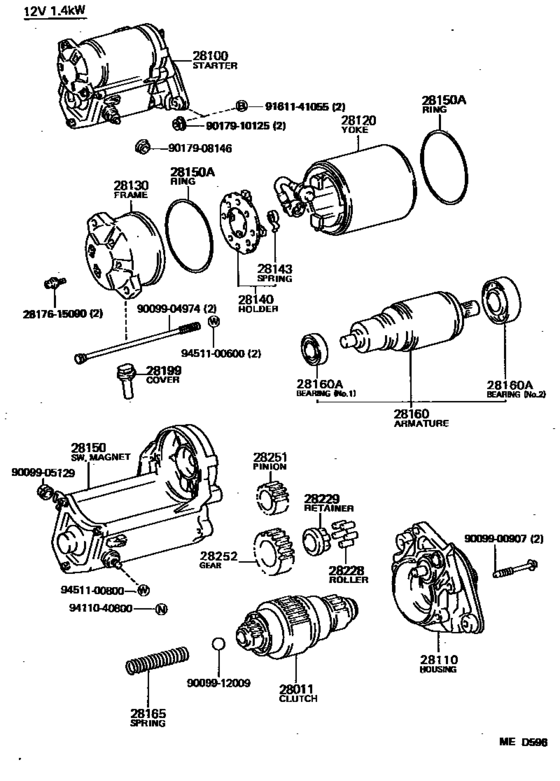

Starter ([08.1983 - ] (8308- )5MGEU,MTEU) 56

#	OEM	Part name
28011	28011-15010	Clutch Sub-Assy, Starter
28011	28011-26042	Clutch Sub-Assy, Starter
28100	28100-41050	Starter Assy
28100	28100-45033	Starter Assy
28100	28100-45050	Starter Assy
28110	28110-41050	Housing Assy, Starter Drive
28110	28110-45050	Housing Assy, Starter Drive
28110	28115-45021	Housing Assy, Starter Drive
28120	28120-15010	Yoke Assy, Starter
28120	28120-15090	Yoke Assy, Starter
28120	28120-34030	Yoke Assy, Starter
28130	28130-15010	Frame Assy, Starter Commutator End
28130	28130-15090	Frame Assy, Starter Commutator End
28140	28140-15010	Holder Assy, Starter Brush
28140	28140-15090	Holder Assy, Starter Brush
28140	28140-34030	Holder Assy, Starter Brush
28143	90099-17112	Spring, Starter Brush
28150	28150-15012	Switch Assy, Magnet Starter
28150	28150-37011	Switch Assy, Magnet Starter
28150	28150-37010	Switch Assy, Magnet Starter
28150	28150-45032	Switch Assy, Magnet Starter
28150	28150-45050	Switch Assy, Magnet Starter
28150	90099-06031	Rubber(For Starter Yoke)
28150	90099-14064	Rubber(For Starter Yoke)
28160	28160-15010	Armature Assy, Starter
28160	28160-15090	Armature Assy, Starter
28160	28160-15091	Armature Assy, Starter
28160	28160-26050	Armature Assy, Starter
28160	28253-45020	Bearing, Starter Armature
28160	90099-10107	Bearing, Starter Armature
28160	90099-10143	Bearing, Starter Armature
28160	90099-10144	Bearing, Starter Armature
28165	28165-26040	Spring, Starter Magnet Switch Return
28199	28199-15090	Cover, Starter End Frame
28228	28228-26040	Roller, Starter Idle Gear Clutch
28229	28229-26040	Retainer, Starter Idle Gear
28251	28251-15090	Pinion, Starter Drive
28251	28251-45020	Pinion, Starter Drive
28251	28251-54070	Plate, Lead, Switch Connecting
28252	28254-45020	Pinion, Starter Drive
2817615090	28176-15090	Screw, Starter
2817615090	28176-87701	Screw, Starter
9009900907	90099-00907	New Genuine Part
9009904974	90099-04974	New Genuine Part
9009905129	90099-05129	Nut (For Front Wiper Arm Setting)
9009912009	90099-12009	Ball, Starter Clutch
9017908146	90179-08146	Nut
9017908146	90179-08204	Nut
9017910125	90179-10125	Nut(For Counter Gear Shaft)
9017910125	90179-10132	Nut
9161141055	91611-41055	Bolt(For Clutch Release Cylinder Setting)
9161141055	91611-61055	Bolt(For Clutch Release Cylinder Setting)
9411040800	94110-40800	Nut(For Steering Damper)
9411040800	94130-00802	Nut, No.1 (For Center Support Bearing)
9451100600	94511-00600	Washer, Lock, No.2
9451100800	94511-00800	WASHERSPRING

OEM	Part name	Category
28011-15010	Clutch Sub-Assy, Starter	Starter ([08.1983 - ] (8308- )5MGEU,MTEU)
28011-26042	Clutch Sub-Assy, Starter	Starter ([08.1983 - ] (8308- )5MGEU,MTEU)
28100-41050	Starter Assy	Starter ([08.1983 - ] (8308- )5MGEU,MTEU)
28100-45033	Starter Assy	Starter ([08.1983 - ] (8308- )5MGEU,MTEU)
28100-45050	Starter Assy	Starter ([08.1983 - ] (8308- )5MGEU,MTEU)
28110-41050	Housing Assy, Starter Drive	Starter ([08.1983 - ] (8308- )5MGEU,MTEU)
28110-45050	Housing Assy, Starter Drive	Starter ([08.1983 - ] (8308- )5MGEU,MTEU)
28115-45021	Housing Assy, Starter Drive	Starter ([08.1983 - ] (8308- )5MGEU,MTEU)
28120-15010	Yoke Assy, Starter	Starter ([08.1983 - ] (8308- )5MGEU,MTEU)
28120-15090	Yoke Assy, Starter	Starter ([08.1983 - ] (8308- )5MGEU,MTEU)
28120-34030	Yoke Assy, Starter	Starter ([08.1983 - ] (8308- )5MGEU,MTEU)
28130-15010	Frame Assy, Starter Commutator End	Starter ([08.1983 - ] (8308- )5MGEU,MTEU)
28130-15090	Frame Assy, Starter Commutator End	Starter ([08.1983 - ] (8308- )5MGEU,MTEU)
28140-15010	Holder Assy, Starter Brush	Starter ([08.1983 - ] (8308- )5MGEU,MTEU)
28140-15090	Holder Assy, Starter Brush	Starter ([08.1983 - ] (8308- )5MGEU,MTEU)
28140-34030	Holder Assy, Starter Brush	Starter ([08.1983 - ] (8308- )5MGEU,MTEU)
28150-15012	Switch Assy, Magnet Starter	Starter ([08.1983 - ] (8308- )5MGEU,MTEU)
28150-37010	Switch Assy, Magnet Starter	Starter ([08.1983 - ] (8308- )5MGEU,MTEU)
28150-37011	Switch Assy, Magnet Starter	Starter ([08.1983 - ] (8308- )5MGEU,MTEU)
28150-45032	Switch Assy, Magnet Starter	Starter ([08.1983 - ] (8308- )5MGEU,MTEU)
28150-45050	Switch Assy, Magnet Starter	Starter ([08.1983 - ] (8308- )5MGEU,MTEU)
28160-15010	Armature Assy, Starter	Starter ([08.1983 - ] (8308- )5MGEU,MTEU)
28160-15090	Armature Assy, Starter	Starter ([08.1983 - ] (8308- )5MGEU,MTEU)
28160-15091	Armature Assy, Starter	Starter ([08.1983 - ] (8308- )5MGEU,MTEU)
28160-26050	Armature Assy, Starter	Starter ([08.1983 - ] (8308- )5MGEU,MTEU)
28165-26040	Spring, Starter Magnet Switch Return	Starter ([08.1983 - ] (8308- )5MGEU,MTEU)
28176-15090	Screw, Starter	Starter ([08.1983 - ] (8308- )5MGEU,MTEU)
28176-87701	Screw, Starter	Starter ([08.1983 - ] (8308- )5MGEU,MTEU)
28199-15090	Cover, Starter End Frame	Starter ([08.1983 - ] (8308- )5MGEU,MTEU)
28228-26040	Roller, Starter Idle Gear Clutch	Starter ([08.1983 - ] (8308- )5MGEU,MTEU)
28229-26040	Retainer, Starter Idle Gear	Starter ([08.1983 - ] (8308- )5MGEU,MTEU)
28251-15090	Pinion, Starter Drive	Starter ([08.1983 - ] (8308- )5MGEU,MTEU)
28251-45020	Pinion, Starter Drive	Starter ([08.1983 - ] (8308- )5MGEU,MTEU)
28251-54070	Plate, Lead, Switch Connecting	Starter ([08.1983 - ] (8308- )5MGEU,MTEU)
28253-45020	Bearing, Starter Armature	Starter ([08.1983 - ] (8308- )5MGEU,MTEU)
28254-45020	Pinion, Starter Drive	Starter ([08.1983 - ] (8308- )5MGEU,MTEU)
90099-00907	New Genuine Part	Starter ([08.1983 - ] (8308- )5MGEU,MTEU)
90099-04974	New Genuine Part	Starter ([08.1983 - ] (8308- )5MGEU,MTEU)
90099-05129	Nut (For Front Wiper Arm Setting)	Starter ([08.1983 - ] (8308- )5MGEU,MTEU)
90099-06031	Rubber(For Starter Yoke)	Starter ([08.1983 - ] (8308- )5MGEU,MTEU)
90099-10107	Bearing, Starter Armature	Starter ([08.1983 - ] (8308- )5MGEU,MTEU)
90099-10143	Bearing, Starter Armature	Starter ([08.1983 - ] (8308- )5MGEU,MTEU)
90099-10144	Bearing, Starter Armature	Starter ([08.1983 - ] (8308- )5MGEU,MTEU)
90099-12009	Ball, Starter Clutch	Starter ([08.1983 - ] (8308- )5MGEU,MTEU)
90099-14064	Rubber(For Starter Yoke)	Starter ([08.1983 - ] (8308- )5MGEU,MTEU)
90099-17112	Spring, Starter Brush	Starter ([08.1983 - ] (8308- )5MGEU,MTEU)
90179-08146	Nut	Starter ([08.1983 - ] (8308- )5MGEU,MTEU)
90179-08204	Nut	Starter ([08.1983 - ] (8308- )5MGEU,MTEU)
90179-10125	Nut(For Counter Gear Shaft)	Starter ([08.1983 - ] (8308- )5MGEU,MTEU)
90179-10132	Nut	Starter ([08.1983 - ] (8308- )5MGEU,MTEU)
91611-41055	Bolt(For Clutch Release Cylinder Setting)	Starter ([08.1983 - ] (8308- )5MGEU,MTEU)
91611-61055	Bolt(For Clutch Release Cylinder Setting)	Starter ([08.1983 - ] (8308- )5MGEU,MTEU)
94110-40800	Nut(For Steering Damper)	Starter ([08.1983 - ] (8308- )5MGEU,MTEU)
94130-00802	Nut, No.1 (For Center Support Bearing)	Starter ([08.1983 - ] (8308- )5MGEU,MTEU)
94511-00600	Washer, Lock, No.2	Starter ([08.1983 - ] (8308- )5MGEU,MTEU)
94511-00800	WASHERSPRING	Starter ([08.1983 - ] (8308- )5MGEU,MTEU)

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 195
Collected: 2026-08-02
