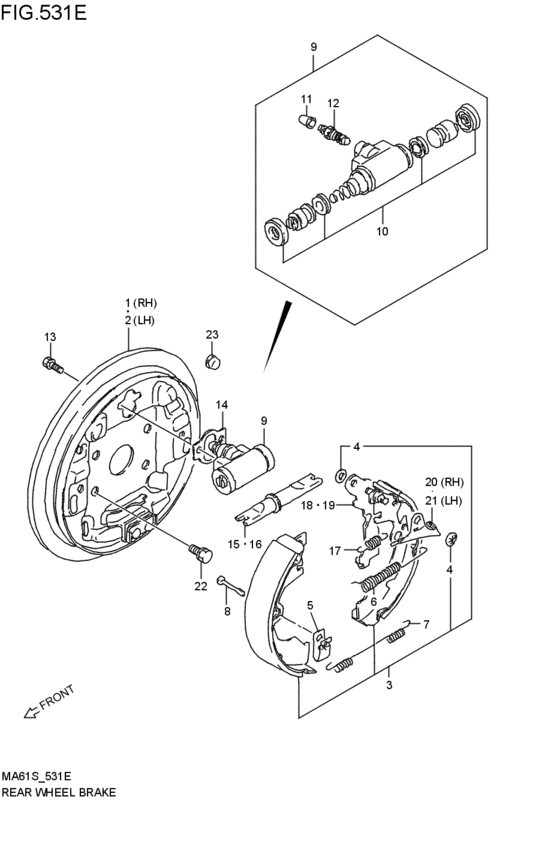

| 01570-06103-000 |
Bolt |
rear wheel brakes (1997-01-01~1999-04-01) |
| 01570-0610A-000 |
Bolt |
rear wheel brakes (1997-01-01~1999-04-01) |
| 09117-08070-000 |
BOLT(8X19) |
rear wheel brakes (1997-01-01~1999-04-01) |
| 09148-06005-000 |
Nut seat moldin |
rear wheel brakes (1997-01-01~1999-04-01) |
| 09148-06008-000 |
NUT - Nut, adjuster knob |
rear wheel brakes (1997-01-01~1999-04-01) |
| 52241-84010-000 |
PIN,SHOE HOLD DOWN |
rear wheel brakes (1997-01-01~1999-04-01) |
| 52243-84010-000 |
SPRING,SHOE HOLD DOWN |
rear wheel brakes (1997-01-01~1999-04-01) |
| 52400-84811-000 |
PISTON CUP&BOOT SET |
rear wheel brakes (1997-01-01~1999-04-01) |
| 53101-75F00-000 |
プレート,リヤブレーキバッキング,ライト |
rear wheel brakes (1997-01-01~1999-04-01) |
| 53101-75F20-000 |
PLATE,RR BRAKE BACKING,R |
rear wheel brakes (1997-01-01~1999-04-01) |
| 53102-75F00-000 |
プレート,リヤブレーキバッキング,レフト |
rear wheel brakes (1997-01-01~1999-04-01) |
| 53102-75F20-000 |
PLATE,RR BRAKE BACKING,L |
rear wheel brakes (1997-01-01~1999-04-01) |
| 53141-75F00-000 |
PLUG,BACKING PLATE |
rear wheel brakes (1997-01-01~1999-04-01) |
| 53200-70822-000 |
シューセット,ブレーキ |
rear wheel brakes (1997-01-01~1999-04-01) |
| 53200-75F11-000 |
SHOE SET,BRAKE |
rear wheel brakes (1997-01-01~1999-04-01) |
| 53231-70G00-000 |
SPRING,SHOE RETURN UPPER |
rear wheel brakes (1997-01-01~1999-04-01) |
| 53232-70G00-000 |
SPRING,SHOE RETURN LOWER |
rear wheel brakes (1997-01-01~1999-04-01) |
| 53401-75F00-000 |
シリンダアッシ,リヤホイール |
rear wheel brakes (1997-01-01~1999-04-01) |
| 53401-76G02-000 |
CYLINDER ASSY,REAR WHEEL |
rear wheel brakes (1997-01-01~1999-04-01) |
| 53446-50A10-000 |
SEAT,REAR WHEEL CYLINDER |
rear wheel brakes (1997-01-01~1999-04-01) |
| 53701-70G10-000 |
STRUT ASSY,REAR BRAKE,R |
rear wheel brakes (1997-01-01~1999-04-01) |
| 53702-70G10-000 |
STRUT ASSY,REAR BRAKE,L |
rear wheel brakes (1997-01-01~1999-04-01) |
| 53711-70G00-000 |
SPRING,PARKING LEVER |
rear wheel brakes (1997-01-01~1999-04-01) |
| 53751-70G00-000 |
LEVER,PARKING SHOE,R |
rear wheel brakes (1997-01-01~1999-04-01) |
| 53761-70G00-000 |
LEVER,PARKING SHOE,L |
rear wheel brakes (1997-01-01~1999-04-01) |
| 53781-70G01-000 |
LEVER,ADJUSTING,L |
rear wheel brakes (1997-01-01~1999-04-01) |
| 53782-70G01-000 |
LEVER,ADJUSTING,R |
rear wheel brakes (1997-01-01~1999-04-01) |
| 55151-60D10-000 |
PLUG,BLEEDER |
rear wheel brakes (1997-01-01~1999-04-01) |
| 55156-66310-000 |
CAP,BLEEDER PLUG - Cap, bleeder plug |
rear wheel brakes (1997-01-01~1999-04-01) |
