| 02162-05123-000 |
Screw |

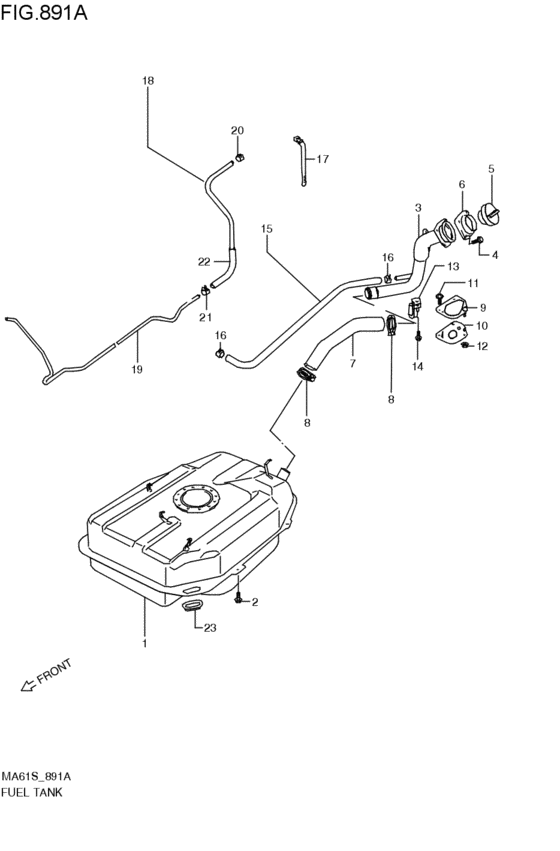

fuel tank (1997-01-01~1999-04-01) |
| 02162-0512A-000 |
SCREW |
fuel tank (1997-01-01~1999-04-01) |
| 02162-06163-000 |
Screw - Bolt |
fuel tank (1997-01-01~1999-04-01) |
| 02162-0616B-000 |
SCREW - Bolt, adjust |
fuel tank (1997-01-01~1999-04-01) |
| 08316-10063-000 |
Nut |
fuel tank (1997-01-01~1999-04-01) |
| 08316-1006B-000 |
NUT |
fuel tank (1997-01-01~1999-04-01) |
| 09118-06106-000 |
BOLT(6X16) |
fuel tank (1997-01-01~1999-04-01) |
| 09118-08151-000 |
Bolt (8x25) |
fuel tank (1997-01-01~1999-04-01) |
| 09118-08151-XC0 |
BOLT(8X25) |
fuel tank (1997-01-01~1999-04-01) |
| 09355-11165-00B |
HOSE(11X16X2000) |
fuel tank (1997-01-01~1999-04-01) |
| 09359-54112-540 |
Hose |
fuel tank (1997-01-01~1999-04-01) |
| 09359-54112-760 |
HOSE(5.4X11.4X760) - Hose, fuel (pump to carb) (5.4x11.4x760) |
fuel tank (1997-01-01~1999-04-01) |
| 09400-45311-000 |
CLAMP |
fuel tank (1997-01-01~1999-04-01) |
| 09401-11413-000 |
CLIP |
fuel tank (1997-01-01~1999-04-01) |
| 09401-12404-000 |
CLIP |
fuel tank (1997-01-01~1999-04-01) |
| 09401-14404-000 |
CLIP |
fuel tank (1997-01-01~1999-04-01) |
| 09407-19401-000 |
CLAMP(L:190) |
fuel tank (1997-01-01~1999-04-01) |
| 89101-75F12-000 |
タンクアッシ,フューエル |
fuel tank (1997-01-01~1999-04-01) |
| 89101-75FA0-000 |
TANK ASSY,FUEL |
fuel tank (1997-01-01~1999-04-01) |
| 89201-75F10-000 |
ネックアッシ,フューエルフィラ |
fuel tank (1997-01-01~1999-04-01) |
| 89201-75F11-000 |
NECK ASSY,FUEL FILLER |
fuel tank (1997-01-01~1999-04-01) |
| 89241-75F00-000 |
HOSE,FUEL TANK FILLER |
fuel tank (1997-01-01~1999-04-01) |
| 89260-70G01-000 |
Cap assy, fuel filler |
fuel tank (1997-01-01~1999-04-01) |
| 89260-73H00-000 |
CAP ASSY,FUEL FILLER |
fuel tank (1997-01-01~1999-04-01) |
| 89280-75F00-000 |
Clamp, fuel filler neck |
fuel tank (1997-01-01~1999-04-01) |
| 89280-75F0V-000 |
CLAMP,FUEL FILLER NECK |
fuel tank (1997-01-01~1999-04-01) |
| 89282-75F00-000 |
Seal, fuel filler neck |
fuel tank (1997-01-01~1999-04-01) |
| 89282-75F10-000 |
SEAL,FUEL FILLER NECK |
fuel tank (1997-01-01~1999-04-01) |
| 89285-75F00-000 |
PACKING,FUEL FILLER |
fuel tank (1997-01-01~1999-04-01) |
| 89291-75F00-000 |
BRACKET,FUEL FILLER |
fuel tank (1997-01-01~1999-04-01) |
| 89483-75F00-000 |
Pipe,fuel evap |
fuel tank (1997-01-01~1999-04-01) |
| 89489-63B00-000 |
PROTECTOR,VALVE OUTLET HOSE |
fuel tank (1997-01-01~1999-04-01) |
| 89511-75F01-000 |
GROMMET,FUEL HOSE |
fuel tank (1997-01-01~1999-04-01) |
