Search › Model › MA61S

MA61S

Suzuki WAGON-R-PLUS-SOLIO-WIDE · 1997 · 3,065 parts · 140 categories

3,065 items

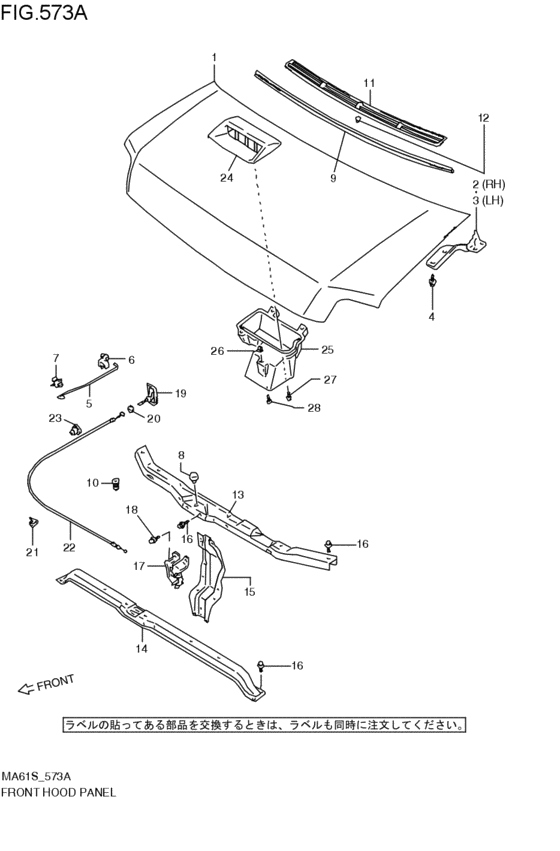

front hood (1997-01-01~1999-04-01) 31

#	OEM	Part name
1	57300-75F10-000	Panel,fr hood
2	57410-74F00-000	ヒンジ,フロントフード,ライト
2	57410-74F02-000	HINGE,FR HOOD,R
3	57420-74F00-000	ヒンジ,フロントフード,レフト
3	57420-74F02-000	HINGE,FR HOOD,L
4	09128-06073-000	SCREW(6X10)
5	72311-74F00-000	STAY,FRONT HOOD
6	09209-09007-000	LINKAGE - Connector
7	09403-07311-000	CLAMP
8	09321-10023-000	CUSHION
9	72341-75F00-000	SEAL,HOOD RR
10	72372-82000-000	CUSHION,BACK DR SIDE
11	72331-75F00-5PK	GARNISH,COWL TOP
12	09409-07323-5ES	CLIP(BLACK)
13	57211-75F02-000	MEMBER,FR UPR
14	57121-75F01-000	MEMBER,FR LWR
15	57221-75F02-000	MEMBER,FR CTR
17	82110-75F00-000	LATCH,HOOD
18	02162-06163-000	Screw - Bolt
18	02162-0616B-000	SCREW - Bolt, adjust
19	82150-62D00-T01	Lever, hood latch rlse (gray) - Lever, hood latch release (gray)
19	82150-62D00-5ES	LEVER,HOOD LATCH RLSE
20	09159-14014-000	NUT
21	09403-04401-000	CLAMP
22	82160-75F00-000	CABLE,HOOD LATCH RELEASE
23	82191-50E00-000	GROMMET,LATCH RELEASE CABLE
24	72411-75F00-N49	GRILLE,AIR SCOOP
25	72421-75F00-000	ガイド,フードエア
26	09148-05018-000	NUT
27	03242-05123-000	Screw, inner cover
27	03241-0512A-000	SCREW

OEM	Part name	Category
02162-06163-000	Screw - Bolt	front hood (1997-01-01~1999-04-01)
02162-0616B-000	SCREW - Bolt, adjust	front hood (1997-01-01~1999-04-01)
03241-0512A-000	SCREW	front hood (1997-01-01~1999-04-01)
03242-05123-000	Screw, inner cover	front hood (1997-01-01~1999-04-01)
09128-06073-000	SCREW(6X10)	front hood (1997-01-01~1999-04-01)
09148-05018-000	NUT	front hood (1997-01-01~1999-04-01)
09159-14014-000	NUT	front hood (1997-01-01~1999-04-01)
09209-09007-000	LINKAGE - Connector	front hood (1997-01-01~1999-04-01)
09321-10023-000	CUSHION	front hood (1997-01-01~1999-04-01)
09403-04401-000	CLAMP	front hood (1997-01-01~1999-04-01)
09403-07311-000	CLAMP	front hood (1997-01-01~1999-04-01)
09409-07323-5ES	CLIP(BLACK)	front hood (1997-01-01~1999-04-01)
57121-75F01-000	MEMBER,FR LWR	front hood (1997-01-01~1999-04-01)
57211-75F02-000	MEMBER,FR UPR	front hood (1997-01-01~1999-04-01)
57221-75F02-000	MEMBER,FR CTR	front hood (1997-01-01~1999-04-01)
57300-75F10-000	Panel,fr hood	front hood (1997-01-01~1999-04-01)
57410-74F00-000	ヒンジ,フロントフード,ライト	front hood (1997-01-01~1999-04-01)
57410-74F02-000	HINGE,FR HOOD,R	front hood (1997-01-01~1999-04-01)
57420-74F00-000	ヒンジ,フロントフード,レフト	front hood (1997-01-01~1999-04-01)
57420-74F02-000	HINGE,FR HOOD,L	front hood (1997-01-01~1999-04-01)
72311-74F00-000	STAY,FRONT HOOD	front hood (1997-01-01~1999-04-01)
72331-75F00-5PK	GARNISH,COWL TOP	front hood (1997-01-01~1999-04-01)
72341-75F00-000	SEAL,HOOD RR	front hood (1997-01-01~1999-04-01)
72372-82000-000	CUSHION,BACK DR SIDE	front hood (1997-01-01~1999-04-01)
72411-75F00-N49	GRILLE,AIR SCOOP	front hood (1997-01-01~1999-04-01)
72421-75F00-000	ガイド,フードエア	front hood (1997-01-01~1999-04-01)
82110-75F00-000	LATCH,HOOD	front hood (1997-01-01~1999-04-01)
82150-62D00-5ES	LEVER,HOOD LATCH RLSE	front hood (1997-01-01~1999-04-01)
82150-62D00-T01	Lever, hood latch rlse (gray) - Lever, hood latch release (gray)	front hood (1997-01-01~1999-04-01)
82160-75F00-000	CABLE,HOOD LATCH RELEASE	front hood (1997-01-01~1999-04-01)
82191-50E00-000	GROMMET,LATCH RELEASE CABLE	front hood (1997-01-01~1999-04-01)

Source: Public OEM parts-catalog data
Variants: 2 / 43
Category: 140
Collected: 2026-08-01
