MA47

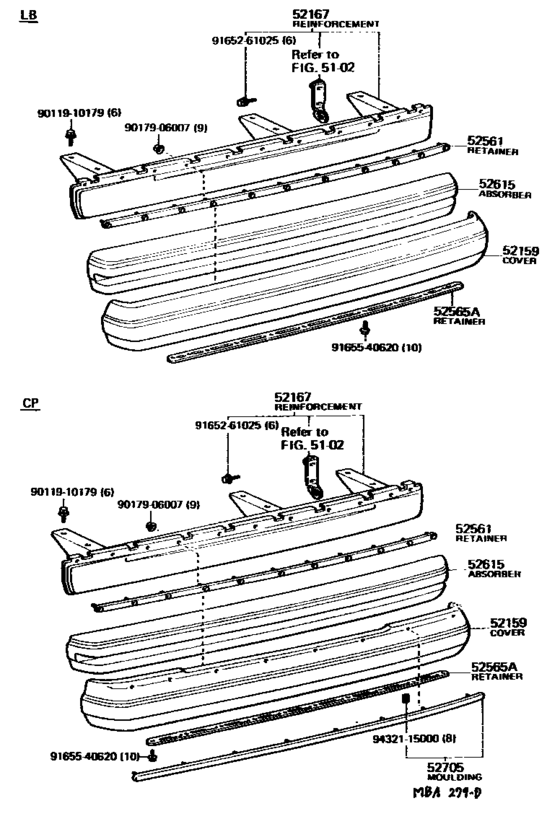

Rear Bumper & Bumper Stay ([08.1979 - ] (7908- )) 8
| # | OEM | Part name |
|---|---|---|
| 9011910179 | 90119-10179 | Bolt, No.1 (For Center Support Bearing) |
| 9011910179 | 90119-10204 | Bolt, No.1 (For Center Support Bearing) |
| 9017906007 | 90179-06007 | Nut |
| 9165261025 | 91652-61025 | Bolt(For Transaxle Case & Engine Setting) |
| 9165261025 | 91651-61025 | Bolt with washer |
| 9165540620 | 91655-40620 | Bolt(For Oil Receiver Pipe) |
| 9165540620 | 91651-60618 | Bolt(For Oil Receiver Pipe) |
| 9432115000 | 94321-15000 | New Genuine Part |
| OEM | Part name | Category |
|---|---|---|
| 90119-10179 | Bolt, No.1 (For Center Support Bearing) | Rear Bumper & Bumper Stay ([08.1979 - ] (7908- )) |
| 90119-10204 | Bolt, No.1 (For Center Support Bearing) | Rear Bumper & Bumper Stay ([08.1979 - ] (7908- )) |
| 90179-06007 | Nut | Rear Bumper & Bumper Stay ([08.1979 - ] (7908- )) |
| 91651-60618 | Bolt(For Oil Receiver Pipe) | Rear Bumper & Bumper Stay ([08.1979 - ] (7908- )) |
| 91651-61025 | Bolt with washer | Rear Bumper & Bumper Stay ([08.1979 - ] (7908- )) |
| 91652-61025 | Bolt(For Transaxle Case & Engine Setting) | Rear Bumper & Bumper Stay ([08.1979 - ] (7908- )) |
| 91655-40620 | Bolt(For Oil Receiver Pipe) | Rear Bumper & Bumper Stay ([08.1979 - ] (7908- )) |
| 94321-15000 | New Genuine Part | Rear Bumper & Bumper Stay ([08.1979 - ] (7908- )) |
