Search › Model › MA47

MA47

Toyota CELICA · 1980 · 1,706 parts · 153 categories

1,706 items

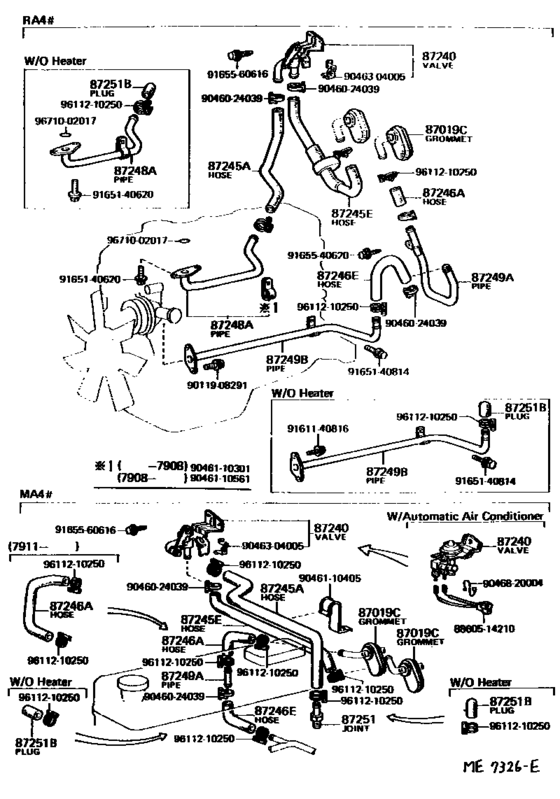

Heating & Air Conditioning - Water Piping ([08.1978 - ] (7808- )) 23

#	OEM	Part name
8860514210	88605-14210	Harness Sub-assy, Cooler Wiring, No.1
9011908291	90119-08291	New Genuine Part
9011908291	93381-18018	New Genuine Part
9046024039	90460-24039	Clamp Or Clip, Hose(For Oil Cooler Hose)
9046024039	90467-21010	Clip(For Ventilation Hose No.2)
9046110301	90461-10301	New Genuine Part
9046110405	90461-10405	New Genuine Part
9046110561	90461-10561	New Genuine Part
9046304005	90463-04005	Clamp, Heater
9046304005	87124-28020	Clamp, Heater
9046820004	90468-20004	New Genuine Part
9161140816	91611-40816	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161140816	91611-B0816	Bolt
9165140620	91651-40620	BOLT
9165140814	91651-40814	BOLT
9165140814	90080-11228	New Genuine Part
9165540620	91655-40620	Bolt(For Oil Receiver Pipe)
9165540620	91651-60618	Bolt(For Oil Receiver Pipe)
9165560616	91655-60616	Bolt (For Rear Differential Breather Plug Oil Deflector)
9165560616	91651-60614	Bolt
9611210250	96112-10250	Clamp Or Clip, Hose(For Oil Cooler Hose)
9671002017	96710-02017	Ring, O (For Transfer Oil Strainer)
9671002017	96711-24017	Ring, O (For Transfer Oil Strainer)

OEM	Part name	Category
87124-28020	Clamp, Heater	Heating & Air Conditioning - Water Piping ([08.1978 - ] (7808- ))
88605-14210	Harness Sub-assy, Cooler Wiring, No.1	Heating & Air Conditioning - Water Piping ([08.1978 - ] (7808- ))
90080-11228	New Genuine Part	Heating & Air Conditioning - Water Piping ([08.1978 - ] (7808- ))
90119-08291	New Genuine Part	Heating & Air Conditioning - Water Piping ([08.1978 - ] (7808- ))
90460-24039	Clamp Or Clip, Hose(For Oil Cooler Hose)	Heating & Air Conditioning - Water Piping ([08.1978 - ] (7808- ))
90461-10301	New Genuine Part	Heating & Air Conditioning - Water Piping ([08.1978 - ] (7808- ))
90461-10405	New Genuine Part	Heating & Air Conditioning - Water Piping ([08.1978 - ] (7808- ))
90461-10561	New Genuine Part	Heating & Air Conditioning - Water Piping ([08.1978 - ] (7808- ))
90463-04005	Clamp, Heater	Heating & Air Conditioning - Water Piping ([08.1978 - ] (7808- ))
90467-21010	Clip(For Ventilation Hose No.2)	Heating & Air Conditioning - Water Piping ([08.1978 - ] (7808- ))
90468-20004	New Genuine Part	Heating & Air Conditioning - Water Piping ([08.1978 - ] (7808- ))
91611-40816	Screw Or Bolt(For Valve Rocker Shaft Lock)	Heating & Air Conditioning - Water Piping ([08.1978 - ] (7808- ))
91611-B0816	Bolt	Heating & Air Conditioning - Water Piping ([08.1978 - ] (7808- ))
91651-40620	BOLT	Heating & Air Conditioning - Water Piping ([08.1978 - ] (7808- ))
91651-40814	BOLT	Heating & Air Conditioning - Water Piping ([08.1978 - ] (7808- ))
91651-60614	Bolt	Heating & Air Conditioning - Water Piping ([08.1978 - ] (7808- ))
91651-60618	Bolt(For Oil Receiver Pipe)	Heating & Air Conditioning - Water Piping ([08.1978 - ] (7808- ))
91655-40620	Bolt(For Oil Receiver Pipe)	Heating & Air Conditioning - Water Piping ([08.1978 - ] (7808- ))
91655-60616	Bolt (For Rear Differential Breather Plug Oil Deflector)	Heating & Air Conditioning - Water Piping ([08.1978 - ] (7808- ))
93381-18018	New Genuine Part	Heating & Air Conditioning - Water Piping ([08.1978 - ] (7808- ))
96112-10250	Clamp Or Clip, Hose(For Oil Cooler Hose)	Heating & Air Conditioning - Water Piping ([08.1978 - ] (7808- ))
96710-02017	Ring, O (For Transfer Oil Strainer)	Heating & Air Conditioning - Water Piping ([08.1978 - ] (7808- ))
96711-24017	Ring, O (For Transfer Oil Strainer)	Heating & Air Conditioning - Water Piping ([08.1978 - ] (7808- ))

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 153
Collected: 2026-08-02
