Search › Model › MA47

MA47

Toyota CELICA · 1980 · 1,706 parts · 153 categories

1,706 items

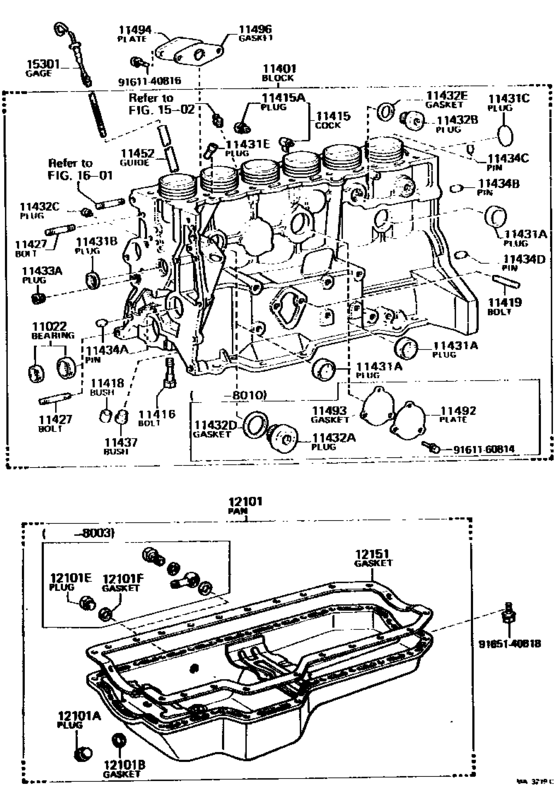

Cylinder Block ([01.1979 - ] (7901- )4ME,5ME) 68

#	OEM	Part name
11022	11022-41010	Bearing Set, Pump Drive Shaft
11401	11401-49179	Block Sub-Assy, Cylinder
11401	90179-10132	Nut
11401	11071-43010-01	Bearing, Crankshaft
11401	11071-43010-02	Bearing, Crankshaft
11401	11071-43010-03	Bearing, Crankshaft
11401	11071-43010-04	Bearing, Crankshaft
11401	11071-43010-05	Bearing, Crankshaft
11401	11401-49267	Block Sub-assy, Cylinder
11401	11401-49265	Block Sub-Assy, Cylinder
11401	11401-49275	Block Sub-Assy, Cylinder
11401	11401-49415	Block Sub-Assy, Cylinder
11401	11452-41020	Guide, Oil Level Gage
11401	90116-08111	Bolt, Stud(For Water Pump Set)
11401	90116-08121	Bolt, Stud(For Timing Chain Cover Set)
11401	90116-08147	Bolt, Stud(For Timing Chain Cover Set)
11401	90116-08191	Bolt, Stud(For Fuel Pump)
11401	90116-10010	Bolt, Stud(For Timing Chain Cover Set)
11401	90116-10097	New Genuine Part
11401	96431-53828	Cock Sub-Assy, Water Drain(For Cylinder Block)
11401	90345-51006	Plug, W/head Taper Screw, No.2
11401	90404-20173	Union(For Oil Filter)
11401	11401-49276	Block Sub-Assy, Cylinder
11415	90910-09070	Cock Sub-Assy, Water Drain(For Cylinder Block)
11415	96431-03833	Cock Sub-Assy, Water Drain(For Cylinder Block)
11415	90910-09072	Plug, Water Drain Cock(For Cylinder Block)
11415	96432-23814	Plug, Water Drain Cock(For Cylinder Block)
11415	96431-23814	Plug, Water Drain Cock(For Cylinder Block)
11416	90910-02047	Bolt(For Crankshaft Bearing Cap Set)
11418	90999-70056	Bush, Solid(For Distributor)
11419	90116-08185	Bolt, Stud(For Fuel Pump)
11431	90331-40001	Plug, Tight, No.1 - TIGHT, NO.1(FOR CYLINDER BLOCK)
11431	96411-44000	Plug, Tight, No.1
11431	96412-43500	Plug, Tight, No.2(For Cylinder Block)
11431	90331-35001	Plug, Tight, No.1 - TIGHT, NO.3(FOR CYLINDER BLOCK)
11431	96411-43500	Plug, Tight, No.1
11431	11444-43010	Plug, Tight, No.5(For Cylinder Block)
11432	90341-42066	Plug, W/head Taper Screw, No.1
11432	90341-32070	Plug, W/head Taper Screw, No.1
11432	90345-51025	Plug, W/head Taper Screw, No.2
11432	90430-42223	Gasket, W/head Taper Screw Plug
11432	90430-32222	Gasket(For Cylinder Head Screw Plug)
11432	90430-32002	Gasket(For Cylinder Head Screw Plug)
11433	90344-53015	Plug, W/head Taper Screw, No.1
11434	90250-10192	Pin, Straight(For Timing Gear Cover Set)
11434	90250-08112	Pin, Straight(For Timing Gear Case)
11434	90250-08120	Pin, Straight, No.1
11437	11437-45010	Bush, Oil Pump Shaft Guide
11492	11492-45010	Plate, Water Seal
11493	11493-45010	Gasket, Water Seal Plate
11494	11494-45010	Plate, Oil Hole Cover
11496	15318-45011	Gasket, Oil Hole Cover Plate
11496	15318-42011	Gasket, Oil Hole Cover Plate
12101	12101-49155	Pan Sub-Assy, Oil
12101	12101-41040	Pan Sub-Assy, Oil
12101	12101-49275	Pan Sub-Assy, Oil
12101	90341-14032	Plug, W/head Taper Screw, No.1
12101	90430-14235	Gasket, W/head Taper Screw Plug
12101	90341-18089	Plug(For Oil Pan Drain)
12101	90033-41020	Plug(For Oil Pan Drain)
12101	90430-18244	Gasket(For Oil Pan Drain Plug)
12101	90430-18023	Gasket(For Oil Pan)
12151	12151-41010	Gasket, Oil Pan
15301	15301-45010	Gage Sub-Assy, Oil Level
9161140816	91611-40816	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161140816	91611-B0816	Bolt
9161160814	91611-60814	Bolt
9165140818	91651-40818	BOLT, W-WASHER

OEM	Part name	Category
11022-41010	Bearing Set, Pump Drive Shaft	Cylinder Block ([01.1979 - ] (7901- )4ME,5ME)
11071-43010-01	Bearing, Crankshaft	Cylinder Block ([01.1979 - ] (7901- )4ME,5ME)
11071-43010-02	Bearing, Crankshaft	Cylinder Block ([01.1979 - ] (7901- )4ME,5ME)
11071-43010-03	Bearing, Crankshaft	Cylinder Block ([01.1979 - ] (7901- )4ME,5ME)
11071-43010-04	Bearing, Crankshaft	Cylinder Block ([01.1979 - ] (7901- )4ME,5ME)
11071-43010-05	Bearing, Crankshaft	Cylinder Block ([01.1979 - ] (7901- )4ME,5ME)
11401-49179	Block Sub-Assy, Cylinder	Cylinder Block ([01.1979 - ] (7901- )4ME,5ME)
11401-49265	Block Sub-Assy, Cylinder	Cylinder Block ([01.1979 - ] (7901- )4ME,5ME)
11401-49267	Block Sub-assy, Cylinder	Cylinder Block ([01.1979 - ] (7901- )4ME,5ME)
11401-49275	Block Sub-Assy, Cylinder	Cylinder Block ([01.1979 - ] (7901- )4ME,5ME)
11401-49276	Block Sub-Assy, Cylinder	Cylinder Block ([01.1979 - ] (7901- )4ME,5ME)
11401-49415	Block Sub-Assy, Cylinder	Cylinder Block ([01.1979 - ] (7901- )4ME,5ME)
11437-45010	Bush, Oil Pump Shaft Guide	Cylinder Block ([01.1979 - ] (7901- )4ME,5ME)
11444-43010	Plug, Tight, No.5(For Cylinder Block)	Cylinder Block ([01.1979 - ] (7901- )4ME,5ME)
11452-41020	Guide, Oil Level Gage	Cylinder Block ([01.1979 - ] (7901- )4ME,5ME)
11492-45010	Plate, Water Seal	Cylinder Block ([01.1979 - ] (7901- )4ME,5ME)
11493-45010	Gasket, Water Seal Plate	Cylinder Block ([01.1979 - ] (7901- )4ME,5ME)
11494-45010	Plate, Oil Hole Cover	Cylinder Block ([01.1979 - ] (7901- )4ME,5ME)
12101-41040	Pan Sub-Assy, Oil	Cylinder Block ([01.1979 - ] (7901- )4ME,5ME)
12101-49155	Pan Sub-Assy, Oil	Cylinder Block ([01.1979 - ] (7901- )4ME,5ME)
12101-49275	Pan Sub-Assy, Oil	Cylinder Block ([01.1979 - ] (7901- )4ME,5ME)
12151-41010	Gasket, Oil Pan	Cylinder Block ([01.1979 - ] (7901- )4ME,5ME)
15301-45010	Gage Sub-Assy, Oil Level	Cylinder Block ([01.1979 - ] (7901- )4ME,5ME)
15318-42011	Gasket, Oil Hole Cover Plate	Cylinder Block ([01.1979 - ] (7901- )4ME,5ME)
15318-45011	Gasket, Oil Hole Cover Plate	Cylinder Block ([01.1979 - ] (7901- )4ME,5ME)
90033-41020	Plug(For Oil Pan Drain)	Cylinder Block ([01.1979 - ] (7901- )4ME,5ME)
90116-08111	Bolt, Stud(For Water Pump Set)	Cylinder Block ([01.1979 - ] (7901- )4ME,5ME)
90116-08121	Bolt, Stud(For Timing Chain Cover Set)	Cylinder Block ([01.1979 - ] (7901- )4ME,5ME)
90116-08147	Bolt, Stud(For Timing Chain Cover Set)	Cylinder Block ([01.1979 - ] (7901- )4ME,5ME)
90116-08185	Bolt, Stud(For Fuel Pump)	Cylinder Block ([01.1979 - ] (7901- )4ME,5ME)
90116-08191	Bolt, Stud(For Fuel Pump)	Cylinder Block ([01.1979 - ] (7901- )4ME,5ME)
90116-10010	Bolt, Stud(For Timing Chain Cover Set)	Cylinder Block ([01.1979 - ] (7901- )4ME,5ME)
90116-10097	New Genuine Part	Cylinder Block ([01.1979 - ] (7901- )4ME,5ME)
90179-10132	Nut	Cylinder Block ([01.1979 - ] (7901- )4ME,5ME)
90250-08112	Pin, Straight(For Timing Gear Case)	Cylinder Block ([01.1979 - ] (7901- )4ME,5ME)
90250-08120	Pin, Straight, No.1	Cylinder Block ([01.1979 - ] (7901- )4ME,5ME)
90250-10192	Pin, Straight(For Timing Gear Cover Set)	Cylinder Block ([01.1979 - ] (7901- )4ME,5ME)
90331-35001	Plug, Tight, No.1 - TIGHT, NO.3(FOR CYLINDER BLOCK)	Cylinder Block ([01.1979 - ] (7901- )4ME,5ME)
90331-40001	Plug, Tight, No.1 - TIGHT, NO.1(FOR CYLINDER BLOCK)	Cylinder Block ([01.1979 - ] (7901- )4ME,5ME)
90341-14032	Plug, W/head Taper Screw, No.1	Cylinder Block ([01.1979 - ] (7901- )4ME,5ME)
90341-18089	Plug(For Oil Pan Drain)	Cylinder Block ([01.1979 - ] (7901- )4ME,5ME)
90341-32070	Plug, W/head Taper Screw, No.1	Cylinder Block ([01.1979 - ] (7901- )4ME,5ME)
90341-42066	Plug, W/head Taper Screw, No.1	Cylinder Block ([01.1979 - ] (7901- )4ME,5ME)
90344-53015	Plug, W/head Taper Screw, No.1	Cylinder Block ([01.1979 - ] (7901- )4ME,5ME)
90345-51006	Plug, W/head Taper Screw, No.2	Cylinder Block ([01.1979 - ] (7901- )4ME,5ME)
90345-51025	Plug, W/head Taper Screw, No.2	Cylinder Block ([01.1979 - ] (7901- )4ME,5ME)
90404-20173	Union(For Oil Filter)	Cylinder Block ([01.1979 - ] (7901- )4ME,5ME)
90430-14235	Gasket, W/head Taper Screw Plug	Cylinder Block ([01.1979 - ] (7901- )4ME,5ME)
90430-18023	Gasket(For Oil Pan)	Cylinder Block ([01.1979 - ] (7901- )4ME,5ME)
90430-18244	Gasket(For Oil Pan Drain Plug)	Cylinder Block ([01.1979 - ] (7901- )4ME,5ME)
90430-32002	Gasket(For Cylinder Head Screw Plug)	Cylinder Block ([01.1979 - ] (7901- )4ME,5ME)
90430-32222	Gasket(For Cylinder Head Screw Plug)	Cylinder Block ([01.1979 - ] (7901- )4ME,5ME)
90430-42223	Gasket, W/head Taper Screw Plug	Cylinder Block ([01.1979 - ] (7901- )4ME,5ME)
90910-02047	Bolt(For Crankshaft Bearing Cap Set)	Cylinder Block ([01.1979 - ] (7901- )4ME,5ME)
90910-09070	Cock Sub-Assy, Water Drain(For Cylinder Block)	Cylinder Block ([01.1979 - ] (7901- )4ME,5ME)
90910-09072	Plug, Water Drain Cock(For Cylinder Block)	Cylinder Block ([01.1979 - ] (7901- )4ME,5ME)
90999-70056	Bush, Solid(For Distributor)	Cylinder Block ([01.1979 - ] (7901- )4ME,5ME)
91611-40816	Screw Or Bolt(For Valve Rocker Shaft Lock)	Cylinder Block ([01.1979 - ] (7901- )4ME,5ME)
91611-60814	Bolt	Cylinder Block ([01.1979 - ] (7901- )4ME,5ME)
91611-B0816	Bolt	Cylinder Block ([01.1979 - ] (7901- )4ME,5ME)
91651-40818	BOLT, W-WASHER	Cylinder Block ([01.1979 - ] (7901- )4ME,5ME)
96411-43500	Plug, Tight, No.1	Cylinder Block ([01.1979 - ] (7901- )4ME,5ME)
96411-44000	Plug, Tight, No.1	Cylinder Block ([01.1979 - ] (7901- )4ME,5ME)
96412-43500	Plug, Tight, No.2(For Cylinder Block)	Cylinder Block ([01.1979 - ] (7901- )4ME,5ME)
96431-03833	Cock Sub-Assy, Water Drain(For Cylinder Block)	Cylinder Block ([01.1979 - ] (7901- )4ME,5ME)
96431-23814	Plug, Water Drain Cock(For Cylinder Block)	Cylinder Block ([01.1979 - ] (7901- )4ME,5ME)
96431-53828	Cock Sub-Assy, Water Drain(For Cylinder Block)	Cylinder Block ([01.1979 - ] (7901- )4ME,5ME)
96432-23814	Plug, Water Drain Cock(For Cylinder Block)	Cylinder Block ([01.1979 - ] (7901- )4ME,5ME)

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 153
Collected: 2026-08-02
