MA34S

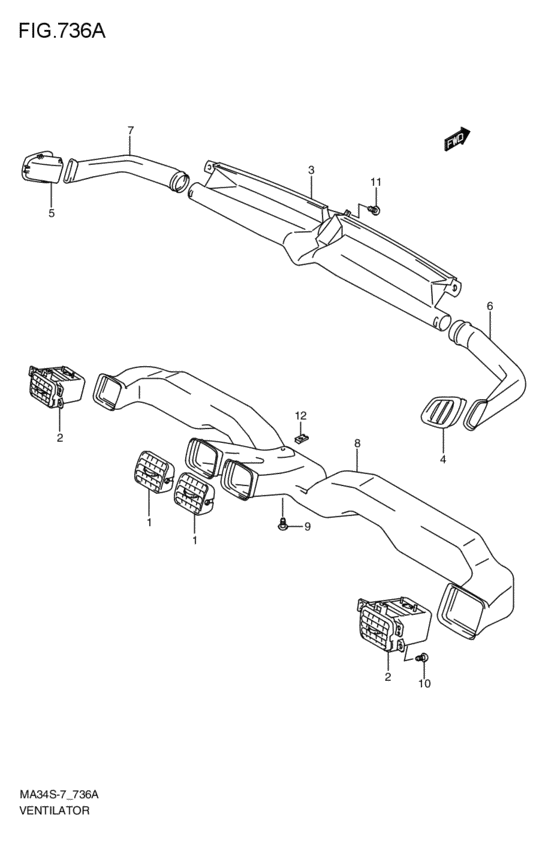

ventilator (2009-06-01~) 11
| # | OEM | Part name |
|---|---|---|
| 1 | 73631-81A11-5PK | LOUVER,SIDE VENT |
| 2 | 73630-78F11-R8R | LOUVER,SIDE VENT |
| 3 | 73661-78F00-000 | NOZZLE,DFR |
| 4 | 73651-78F00-R8R | NOZZLE,SIDE DEMISTER,R |
| 5 | 73652-78F00-R8R | NOZZLE,SIDE DEMISTER,L |
| 6 | 73681-78F00-000 | DUCT,DEMISTER,R |
| 7 | 73691-78F00-000 | DUCT,DEMISTER,L |
| 8 | 74621-78F01-000 | DUCT,VENT |
| 9 | 03141-0512A-000 | SCREW - Screw, belt cooling duct |
| 10 | 03541-0516A-000 | SCREW |
| 12 | 09148-05045-000 | NUT |
| OEM | Part name | Category |
|---|---|---|
| 03141-0512A-000 | SCREW - Screw, belt cooling duct | ventilator (2009-06-01~) |
| 03541-0516A-000 | SCREW | ventilator (2009-06-01~) |
| 09148-05045-000 | NUT | ventilator (2009-06-01~) |
| 73630-78F11-R8R | LOUVER,SIDE VENT | ventilator (2009-06-01~) |
| 73631-81A11-5PK | LOUVER,SIDE VENT | ventilator (2009-06-01~) |
| 73651-78F00-R8R | NOZZLE,SIDE DEMISTER,R | ventilator (2009-06-01~) |
| 73652-78F00-R8R | NOZZLE,SIDE DEMISTER,L | ventilator (2009-06-01~) |
| 73661-78F00-000 | NOZZLE,DFR | ventilator (2009-06-01~) |
| 73681-78F00-000 | DUCT,DEMISTER,R | ventilator (2009-06-01~) |
| 73691-78F00-000 | DUCT,DEMISTER,L | ventilator (2009-06-01~) |
| 74621-78F01-000 | DUCT,VENT | ventilator (2009-06-01~) |
