| 08316-1012A-000 |
NUT |

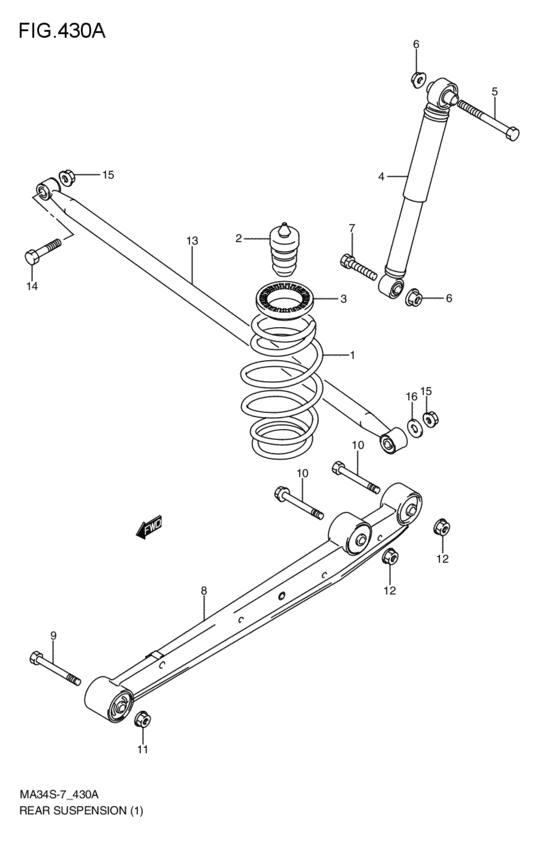

rear suspension (2WD; 2009-06-01~) |
| 09103-12044-000 |
BOLT(12X87) |
rear suspension (2WD; 2009-06-01~) |
| 09103-12051-000 |
BOLT(12X50) |
rear suspension (2WD; 2009-06-01~) |
| 09159-12068-000 |
NUT |
rear suspension (2WD; 2009-06-01~) |
| 09164-12017-000 |
WASHER |
rear suspension (2WD; 2009-06-01~) |
| 41311-82H00-000 |
SPRING,REAR COIL |
rear suspension (2WD; 2009-06-01~) |
| 41341-79A00-000 |
SEAT,REAR SPRING UPPER |
rear suspension (2WD; 2009-06-01~) |
| 41800-82H00-000 |
ABSORBER ASSY,RR SHOCK |
rear suspension (2WD; 2009-06-01~) |
| 41981-83H00-000 |
BOLT,RR SHK ABSORBER UPR |
rear suspension (2WD; 2009-06-01~) |
| 41982-82H01-000 |
BOLT,RR SHK ABSORBER LWR |
rear suspension (2WD; 2009-06-01~) |
| 42251-73H00-000 |
STOPPER,RR BUMP |
rear suspension (2WD; 2009-06-01~) |
| 46200-70H00-000 |
ARM ASSY,RR TRAILING |
rear suspension (2WD; 2009-06-01~) |
| 46300-82H00-000 |
Rod assy,lateral |
rear suspension (2WD; 2009-06-01~) |
| 46300-82H01-000 |
ROD ASSY,LATERAL |
rear suspension (2WD; 2009-06-01~) |
