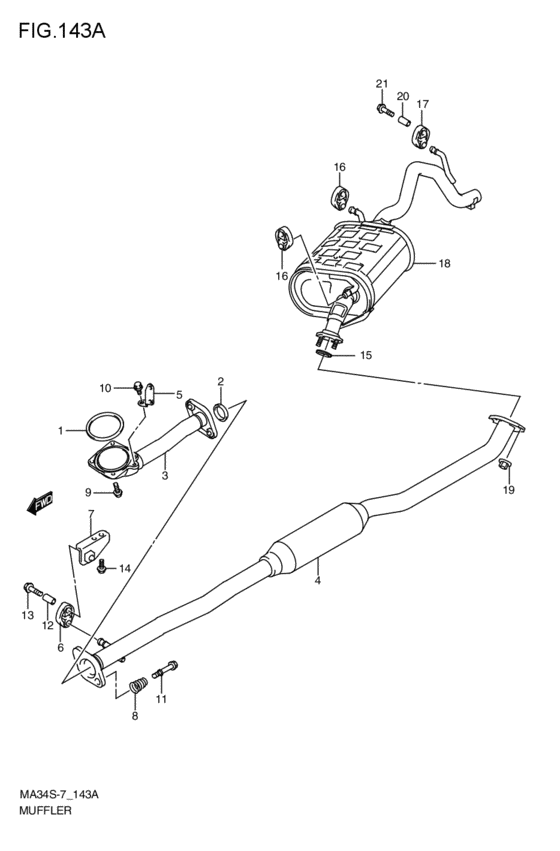

muffler (2009-06-01~)
21
| # | OEM | Part name |
|---|
| 1 |
14181-70H00-000 |
GASKET,EXH MANF |
| 2 |
14183-76A00-000 |
RING,SEAL EXH PIPE |
| 3 |
14190-80GC0-000 |
PIPE,EXH NO.1 |
| 4 |
14250-82H00-000 |
PIPE,EXH NO.2 |
| 5 |
14271-57K00-000 |
STIFFENER,EXH MANF |
| 6 |
14281-75F01-000 |
MOUNTING,MUF |
| 7 |
14284-75F00-000 |
BRACKET,EXH PIPE |
| 8 |
14492-67D00-000 |
SPRING,EXH PIPE |
| 9 |
09103-10324-000 |
BOLT(10X20) |
| 11 |
09119-10073-000 |
BOLT(10X65) |
| 12 |
09180-08057-000 |
Spacer |
| 12 |
09180-08227-000 |
SPACER(8.2X12.5X23.5) |
| 13 |
01550-0835A-000 |
Bolt |
| 14 |
02162-0612A-000 |
SCREW - Bolt, bracket |
| 15 |
14182-60B00-000 |
GASKET,EXH PIPE |
| 15 |
14182-60B01-000 |
Gasket,exh Pipe |
| 17 |
14281-80G00-000 |
MOUNTING,MUF |
| 18 |
14300-82H00-000 |
MUFFLER |
| 19 |
09159-10049-000 |
Nut |
| 19 |
09159-10102-000 |
NUT |
| 21 |
01551-0835A-000 |
Bolt |
| OEM |
Part name |
Category |
| 01550-0835A-000 |
Bolt |
muffler (2009-06-01~) |
| 01551-0835A-000 |
Bolt |
muffler (2009-06-01~) |
| 02162-0612A-000 |
SCREW - Bolt, bracket |
muffler (2009-06-01~) |
| 09103-10324-000 |
BOLT(10X20) |
muffler (2009-06-01~) |
| 09119-10073-000 |
BOLT(10X65) |
muffler (2009-06-01~) |
| 09159-10049-000 |
Nut |
muffler (2009-06-01~) |
| 09159-10102-000 |
NUT |
muffler (2009-06-01~) |
| 09180-08057-000 |
Spacer |
muffler (2009-06-01~) |
| 09180-08227-000 |
SPACER(8.2X12.5X23.5) |
muffler (2009-06-01~) |
| 14181-70H00-000 |
GASKET,EXH MANF |
muffler (2009-06-01~) |
| 14182-60B00-000 |
GASKET,EXH PIPE |
muffler (2009-06-01~) |
| 14182-60B01-000 |
Gasket,exh Pipe |
muffler (2009-06-01~) |
| 14183-76A00-000 |
RING,SEAL EXH PIPE |
muffler (2009-06-01~) |
| 14190-80GC0-000 |
PIPE,EXH NO.1 |
muffler (2009-06-01~) |
| 14250-82H00-000 |
PIPE,EXH NO.2 |
muffler (2009-06-01~) |
| 14271-57K00-000 |
STIFFENER,EXH MANF |
muffler (2009-06-01~) |
| 14281-75F01-000 |
MOUNTING,MUF |
muffler (2009-06-01~) |
| 14281-80G00-000 |
MOUNTING,MUF |
muffler (2009-06-01~) |
| 14284-75F00-000 |
BRACKET,EXH PIPE |
muffler (2009-06-01~) |
| 14300-82H00-000 |
MUFFLER |
muffler (2009-06-01~) |
| 14492-67D00-000 |
SPRING,EXH PIPE |
muffler (2009-06-01~) |
