MA34S

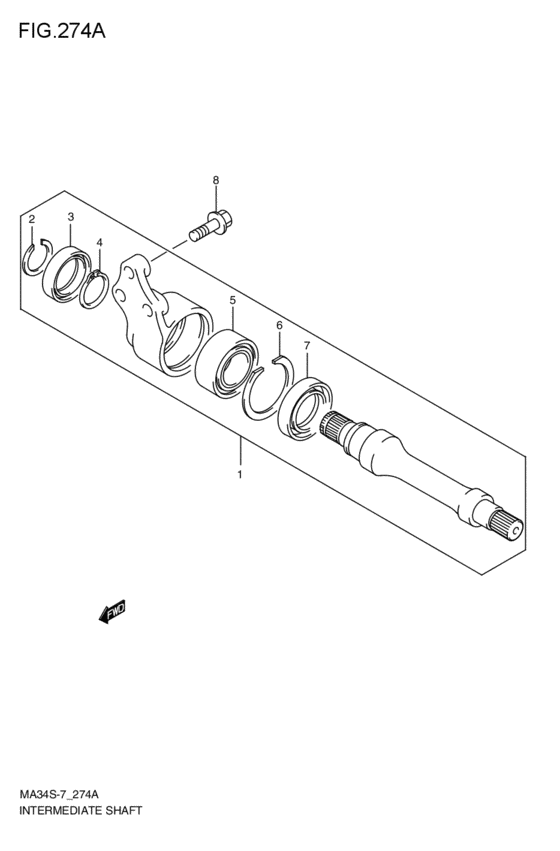

intermediate shaft (2009-06-01~) 8
| # | OEM | Part name |
|---|---|---|
| 1 | 27800-79C11-000 | SHAFT ASSY,DRIVE INTERMEDIATE |
| 2 | 09381-22014-000 | RING,SNAP |
| 3 | 27841-63B00-000 | SEAL,DRIVE INTERMEDIATE,R |
| 4 | 08331-3136A-000 | CIRCLIP |
| 5 | 27831-63B20-000 | BEARING,DRIVE INTERMEDIATE |
| 6 | 27851-63B00-000 | CIRCLIP,INTERMEDIATE BRG |
| 7 | 27842-63B00-000 | SEAL,DRIVE INTERMEDIATE,L |
| 8 | 01550-1040A-000 | Bolt |
| OEM | Part name | Category |
|---|---|---|
| 01550-1040A-000 | Bolt | intermediate shaft (2009-06-01~) |
| 08331-3136A-000 | CIRCLIP | intermediate shaft (2009-06-01~) |
| 09381-22014-000 | RING,SNAP | intermediate shaft (2009-06-01~) |
| 27800-79C11-000 | SHAFT ASSY,DRIVE INTERMEDIATE | intermediate shaft (2009-06-01~) |
| 27831-63B20-000 | BEARING,DRIVE INTERMEDIATE | intermediate shaft (2009-06-01~) |
| 27841-63B00-000 | SEAL,DRIVE INTERMEDIATE,R | intermediate shaft (2009-06-01~) |
| 27842-63B00-000 | SEAL,DRIVE INTERMEDIATE,L | intermediate shaft (2009-06-01~) |
| 27851-63B00-000 | CIRCLIP,INTERMEDIATE BRG | intermediate shaft (2009-06-01~) |
