Search › Model › MA34S
MA34S

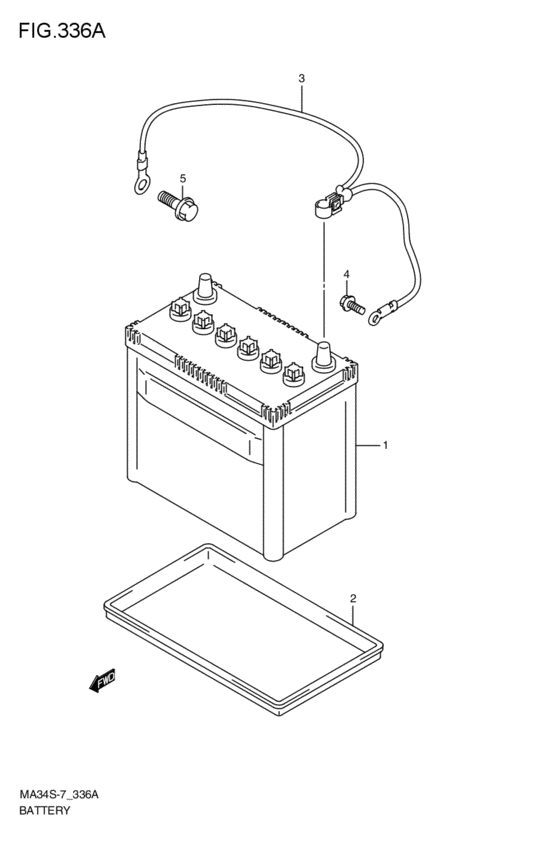

battery (2009-06-01~) 7
| # | OEM | Part name |
|---|---|---|
| 1 | 33610-80G00-000 | Battery,46b24l,12v38ah/5hr(fb) |
| 1 | 33610-60GV1-000 | BATTERY ASSY,55B24L [Cannot be supplied] |
| 2 | 33660-73010-000 | Tray, battery |
| 2 | 33660-71L10-000 | TRAY,BATTERY |
| 3 | 33850-78F80-000 | CABLE ASSY,BATTERY GND |
| 4 | 09115-06005-000 | BOLT(6X16) |
| 5 | 01550-0812A-000 | Bolt |
| OEM | Part name | Category |
|---|---|---|
| 01550-0812A-000 | Bolt | battery (2009-06-01~) |
| 09115-06005-000 | BOLT(6X16) | battery (2009-06-01~) |
| 33610-60GV1-000 | BATTERY ASSY,55B24L [Cannot be supplied] | battery (2009-06-01~) |
| 33610-80G00-000 | Battery,46b24l,12v38ah/5hr(fb) | battery (2009-06-01~) |
| 33660-71L10-000 | TRAY,BATTERY | battery (2009-06-01~) |
| 33660-73010-000 | Tray, battery | battery (2009-06-01~) |
| 33850-78F80-000 | CABLE ASSY,BATTERY GND | battery (2009-06-01~) |
