Search › Model › MA34S
MA34S

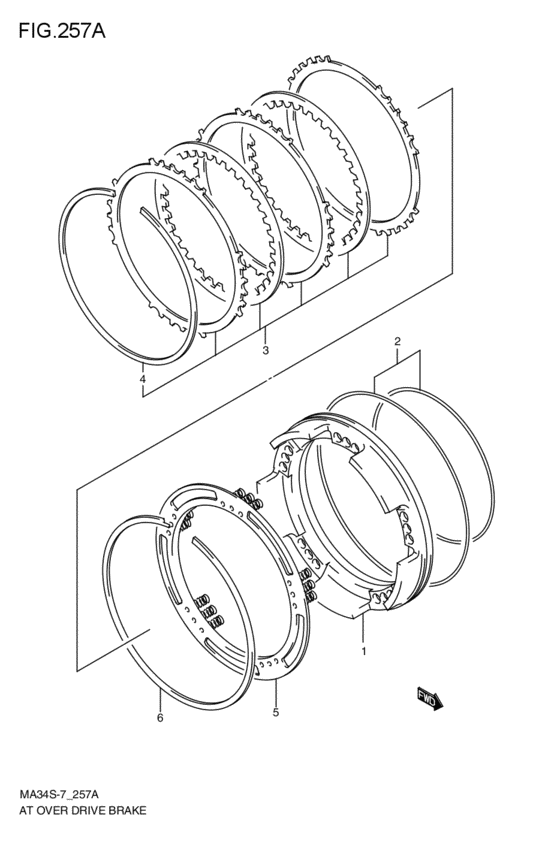

at - overdrive (2009-06-01~) 6
| # | OEM | Part name |
|---|---|---|
| 1 | 26771-79C10-000 | PISTON,O/D BRAKE |
| 2 | 26772-79CT0-000 | O-RING SET,O/D BRAKE |
| 3 | 26774-79CT0-000 | DISC SET,O/D BRAKE |
| 4 | 26744-79C10-000 | RING,2ND BRAKE PLATE |
| 5 | 26780-79C10-000 | SPRING S/ASSY,O/D BRAKE |
| 6 | 26791-79C10-000 | RING,O/D BK RETURN SPRING |
| OEM | Part name | Category |
|---|---|---|
| 26744-79C10-000 | RING,2ND BRAKE PLATE | at - overdrive (2009-06-01~) |
| 26771-79C10-000 | PISTON,O/D BRAKE | at - overdrive (2009-06-01~) |
| 26772-79CT0-000 | O-RING SET,O/D BRAKE | at - overdrive (2009-06-01~) |
| 26774-79CT0-000 | DISC SET,O/D BRAKE | at - overdrive (2009-06-01~) |
| 26780-79C10-000 | SPRING S/ASSY,O/D BRAKE | at - overdrive (2009-06-01~) |
| 26791-79C10-000 | RING,O/D BK RETURN SPRING | at - overdrive (2009-06-01~) |
