| 01221-6A0A1 |
Nut |

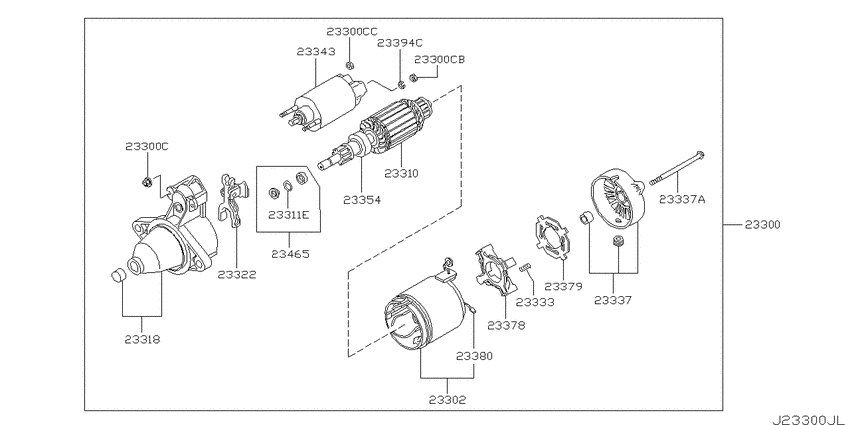

Starter motor (2003-10-01 ~ ; 1.0KW; 3G83) |
| 01221-6A0A2 |
Nut |
Starter motor (2003-10-01 ~ ; 1.0KW; 3G83) |
| 01221-6A0A3 |
Nut |
Starter motor (2003-10-01 ~ ; 1.0KW; 3G83) |
| 01221-6A0A4 |
Nut |
Starter motor (2003-10-01 ~ ; 1.0KW; 3G83) |
| 01221-6A0A5 |
Nut |
Starter motor (2003-10-01 ~ ; 1.0KW; 3G83) |
| 23300-6A00C |
Motor Assy-Starter |
Starter motor (2003-10-01 ~ ; 1.0KW; 3G83) |
| 23300-6A0A2 |
Motor Assy-Starter |
Starter motor (2003-10-01 ~ ; 1.0KW; 3G83) |
| 23302-6A0A2 |
Yoke Assy |
Starter motor (2003-10-01 ~ ; 1.0KW; 3G83) |
| 23310-6A0A1 |
Armature Assy |
Starter motor (2003-10-01 ~ ; 1.0KW; 3G83) |
| 23318-6A0A1 |
Case Assy-Gear |
Starter motor (2003-10-01 ~ ; 1.0KW; 3G83) |
| 23322-6A0A1 |
Lever Set-Shift |
Starter motor (2003-10-01 ~ ; 1.0KW; 3G83) |
| 23337-6A0A2 |
Cover Assy-Rear |
Starter motor (2003-10-01 ~ ; 1.0KW; 3G83) |
| 23340-6A0A1 |
Bolt-Through |
Starter motor (2003-10-01 ~ ; 1.0KW; 3G83) |
| 23343-6A00A |
Switch Assy-Magnetic |
Starter motor (2003-10-01 ~ ; 1.0KW; 3G83) |
| 23343-6A0A0 |
Switch Assy-Magnetic |
Starter motor (2003-10-01 ~ ; 1.0KW; 3G83) |
| 23354-6A0A1 |
Clutch Assy |
Starter motor (2003-10-01 ~ ; 1.0KW; 3G83) |
| 23359-6A0A0 |
Ring-Snap |
Starter motor (2003-10-01 ~ ; 1.0KW; 3G83) |
| 23359-6A0A1 |
Ring-Snap |
Starter motor (2003-10-01 ~ ; 1.0KW; 3G83) |
| 23378-6A0A1 |
Holder Assy-Brush |
Starter motor (2003-10-01 ~ ; 1.0KW; 3G83) |
| 23379-6A0A0 |
Brush-Minus |
Starter motor (2003-10-01 ~ ; 1.0KW; 3G83) |
| 23380-6A0A1 |
Brush-Plus |
Starter motor (2003-10-01 ~ ; 1.0KW; 3G83) |
| 23394-6A0A0 |
Washer |
Starter motor (2003-10-01 ~ ; 1.0KW; 3G83) |
| 23394-6A0A1 |
Washer |
Starter motor (2003-10-01 ~ ; 1.0KW; 3G83) |
| 23394-6A0A2 |
Washer |
Starter motor (2003-10-01 ~ ; 1.0KW; 3G83) |
| 23394-6A0A3 |
Washer |
Starter motor (2003-10-01 ~ ; 1.0KW; 3G83) |
| 23394-6A0A4 |
Washer |
Starter motor (2003-10-01 ~ ; 1.0KW; 3G83) |
| 23465-6A0A0 |
Stopper Set-Pinion |
Starter motor (2003-10-01 ~ ; 1.0KW; 3G83) |
