Search › Model › M710A

M710A

Toyota PASSO · 2016 · 2,607 parts · 165 categories

2,607 items

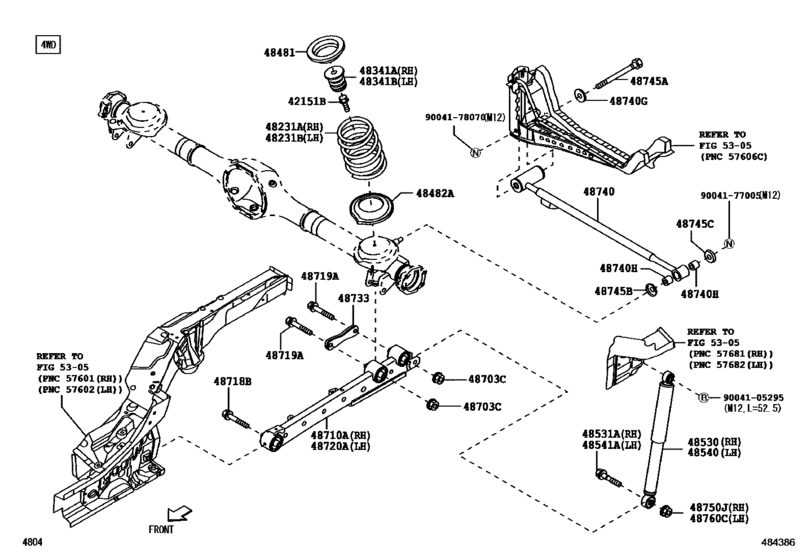

Rear Spring & Shock Absorber ([04.2016 - ] 4WD (1604- )M710) 22

#	OEM	Part name
42151	91551-00820	Bolt, Hexagon (For Rear Spring Seat Bolt)
48231	48231-B1260	Spring, Coil, Rear Rh
48341	48341-B1020	Bumper, Rear Spring, No.1 Rh
48481	48481-B2010	Seat, Rear Spring, Upper
48482	48482-B2020	Seat, Rear Spring, Lower
48530	48531-B1260	Absorber Assy, Shock, Rear Rh
48531	90041-19A05	Bolt, Union(For Rear Shock Absorber)
48703	90041-70260	Nut(For Rear Suspension Arm)
48710	48710-B1130	Arm Assy, Rear Suspension, No.1 Rh
48718	48718-B2020	Shaft, Rear Suspention Lower Arm, No.1
48719	48719-B2010	Bolt(For Rear Lower Control Arm)
48720	48720-B1050	Arm Assy, Rear Suspension, No.1 Lh
48733	48733-B1010	Reinforcement, Rear Suspension Arm
48740	48740-B1020	Rod Assy, Rear Lateral Control
48740	90042-01778	Washer, Plate, No.1(For Rear Lateral Control Rod)
48740	90043-85102	Bush, No.1(For Rear Lateral Control Rod)
48745	90041-01656	Bolt, Hexagon(For Lateral Control Rod)
48745	90042-09105	Washer, Front Shock Absorber Cushion, No.1
48745	90948-03003	Retainer, Cushion, No.1(For Front Shock Absorber)
9004105295	90041-05295	New Genuine Part
9004177005	90041-77005	Nut
9004178070	90041-78070	Nut

OEM	Part name	Category
48231-B1260	Spring, Coil, Rear Rh	Rear Spring & Shock Absorber ([04.2016 - ] 4WD (1604- )M710)
48341-B1020	Bumper, Rear Spring, No.1 Rh	Rear Spring & Shock Absorber ([04.2016 - ] 4WD (1604- )M710)
48481-B2010	Seat, Rear Spring, Upper	Rear Spring & Shock Absorber ([04.2016 - ] 4WD (1604- )M710)
48482-B2020	Seat, Rear Spring, Lower	Rear Spring & Shock Absorber ([04.2016 - ] 4WD (1604- )M710)
48531-B1260	Absorber Assy, Shock, Rear Rh	Rear Spring & Shock Absorber ([04.2016 - ] 4WD (1604- )M710)
48710-B1130	Arm Assy, Rear Suspension, No.1 Rh	Rear Spring & Shock Absorber ([04.2016 - ] 4WD (1604- )M710)
48718-B2020	Shaft, Rear Suspention Lower Arm, No.1	Rear Spring & Shock Absorber ([04.2016 - ] 4WD (1604- )M710)
48719-B2010	Bolt(For Rear Lower Control Arm)	Rear Spring & Shock Absorber ([04.2016 - ] 4WD (1604- )M710)
48720-B1050	Arm Assy, Rear Suspension, No.1 Lh	Rear Spring & Shock Absorber ([04.2016 - ] 4WD (1604- )M710)
48733-B1010	Reinforcement, Rear Suspension Arm	Rear Spring & Shock Absorber ([04.2016 - ] 4WD (1604- )M710)
48740-B1020	Rod Assy, Rear Lateral Control	Rear Spring & Shock Absorber ([04.2016 - ] 4WD (1604- )M710)
90041-01656	Bolt, Hexagon(For Lateral Control Rod)	Rear Spring & Shock Absorber ([04.2016 - ] 4WD (1604- )M710)
90041-05295	New Genuine Part	Rear Spring & Shock Absorber ([04.2016 - ] 4WD (1604- )M710)
90041-19A05	Bolt, Union(For Rear Shock Absorber)	Rear Spring & Shock Absorber ([04.2016 - ] 4WD (1604- )M710)
90041-70260	Nut(For Rear Suspension Arm)	Rear Spring & Shock Absorber ([04.2016 - ] 4WD (1604- )M710)
90041-77005	Nut	Rear Spring & Shock Absorber ([04.2016 - ] 4WD (1604- )M710)
90041-78070	Nut	Rear Spring & Shock Absorber ([04.2016 - ] 4WD (1604- )M710)
90042-01778	Washer, Plate, No.1(For Rear Lateral Control Rod)	Rear Spring & Shock Absorber ([04.2016 - ] 4WD (1604- )M710)
90042-09105	Washer, Front Shock Absorber Cushion, No.1	Rear Spring & Shock Absorber ([04.2016 - ] 4WD (1604- )M710)
90043-85102	Bush, No.1(For Rear Lateral Control Rod)	Rear Spring & Shock Absorber ([04.2016 - ] 4WD (1604- )M710)
90948-03003	Retainer, Cushion, No.1(For Front Shock Absorber)	Rear Spring & Shock Absorber ([04.2016 - ] 4WD (1604- )M710)
91551-00820	Bolt, Hexagon (For Rear Spring Seat Bolt)	Rear Spring & Shock Absorber ([04.2016 - ] 4WD (1604- )M710)
