| 21814-B1010 |
Bolt, Fuel Inlet |

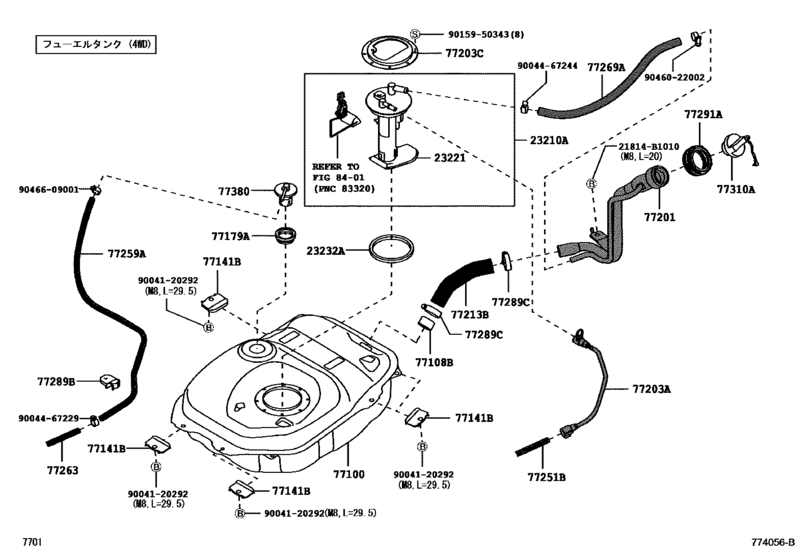

Fuel Tank & Tube ([04.2016 - ] (1604- )M710) |
| 23100-B1080 |
Pump Assy, Fuel |
Fuel Tank & Tube ([04.2016 - ] (1604- )M710) |
| 23210-B1120 |
Pump Assy, Fuel W/motor & Bracket |
Fuel Tank & Tube ([04.2016 - ] (1604- )M710) |
| 23232-87401 |
Gasket, Fuel Pump Bracket |
Fuel Tank & Tube ([04.2016 - ] (1604- )M710) |
| 23265-B2010 |
Bracket, Fuel Pump |
Fuel Tank & Tube ([04.2016 - ] (1604- )M710) |
| 77001-B1051 |
Tank Assy, Fuel |
Fuel Tank & Tube ([04.2016 - ] (1604- )M710) |
| 77108-B2010 |
Valve Sub-Assy, Fuel Tank Filler Check |
Fuel Tank & Tube ([04.2016 - ] (1604- )M710) |
| 77141-B1020 |
Plate, Fuel Tank Side |
Fuel Tank & Tube ([04.2016 - ] (1604- )M710) |
| 77179-33010 |
Gasket, Fuel Tank Evap/vent Tube |
Fuel Tank & Tube ([04.2016 - ] (1604- )M710) |
| 77201-B1110 |
Pipe Sub-Assy, Fuel Tank Inlet |
Fuel Tank & Tube ([04.2016 - ] (1604- )M710) |
| 77203-B1020 |
Tube Sub-Assy, Fuel Suction |
Fuel Tank & Tube ([04.2016 - ] (1604- )M710) |
| 77213-B1020 |
Hose, Fuel Tank To Filler Pipe |
Fuel Tank & Tube ([04.2016 - ] (1604- )M710) |
| 77251-B1110 |
Tube, Fuel Main |
Fuel Tank & Tube ([04.2016 - ] (1604- )M710) |
| 77259-B2010 |
Hose, Fuel(For Breather Tube) |
Fuel Tank & Tube ([04.2016 - ] (1604- )M710) |
| 77263-B1120 |
Tube, Fuel Tank To Canister, No.3 |
Fuel Tank & Tube ([04.2016 - ] (1604- )M710) |
| 77269-B1020 |
Hose, Fuel, No.1 (For Breather Tube) |
Fuel Tank & Tube ([04.2016 - ] (1604- )M710) |
| 77289-B2010 |
Clamp, Fuel Tube, No.3 |
Fuel Tank & Tube ([04.2016 - ] (1604- )M710) |
| 77291-B2060 |
Shield, Fuel Tank Filler Pipe |
Fuel Tank & Tube ([04.2016 - ] (1604- )M710) |
| 77300-52030 |
Cap Assy, Fuel Tank |
Fuel Tank & Tube ([04.2016 - ] (1604- )M710) |
| 77380-B2010 |
Valve Assy, Fuel Cut Off |
Fuel Tank & Tube ([04.2016 - ] (1604- )M710) |
| 90041-20292 |
New Genuine Part |
Fuel Tank & Tube ([04.2016 - ] (1604- )M710) |
| 90044-60129 |
Clamp Sub-Assy, Fuel Hose |
Fuel Tank & Tube ([04.2016 - ] (1604- )M710) |
| 90044-67229 |
New Genuine Part |
Fuel Tank & Tube ([04.2016 - ] (1604- )M710) |
| 90044-67244 |
Clamp Or Clip, Hose(For Water By-Pass Pipe) |
Fuel Tank & Tube ([04.2016 - ] (1604- )M710) |
| 90159-50343 |
SCREW, W-WASHER |
Fuel Tank & Tube ([04.2016 - ] (1604- )M710) |
| 90460-22001 |
CLAMP |
Fuel Tank & Tube ([04.2016 - ] (1604- )M710) |
| 90460-22002 |
CLAMP |
Fuel Tank & Tube ([04.2016 - ] (1604- )M710) |
| 90466-09001 |
Clip(For Fuel Vapor Feed Hose, No.1) |
Fuel Tank & Tube ([04.2016 - ] (1604- )M710) |
