M710A

Toyota PASSO · 2016 · 2,607 parts · 165 categories

2,607 items

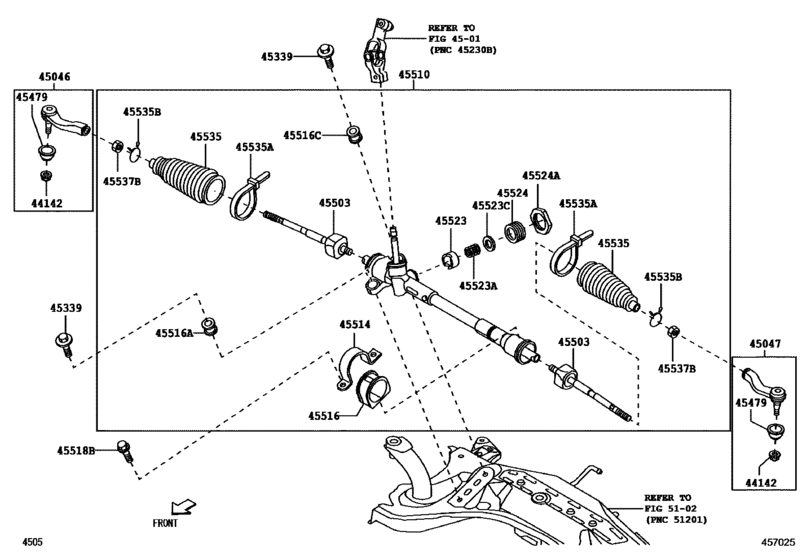

Front Steering Gear & Link ([04.2016 - ] (1604- )) 21

#	OEM	Part name
44142	90041-77011	Nut, Lock
45046	45046-B9210	End Sub-Assy, Tie Rod, Rh
45047	45047-B9150	End Sub-Assy, Tie Rod, Lh
45339	90041-20051	Bolt, Steering Gear Housing
45479	45479-B2010	Seal, Steering Link Joint Dust
45503	45503-B1020	End Sub-Assy, Steering Rack
45510	45502-B1390	Gear Assy, Steering
45514	45514-B2010	Bracket, Steering Rack Housing, No.1
45516	45516-B1030	Grommet, Steering Rack Housing, No.1
45516	45516-B2110	Bush, Steering Rack Housing, No.1
45516	45516-B2120	Bush, Steering Rack Housing, No.2
45518	90041-05303	Bolt, Steering Rack Housing
45523	45523-B1030	Guide, Rack(For Steering Gear)
45523	90045-01818	Spring(For Steering Gear Rack Guide)
45523	90042-08036	Spacer(For Rack Guide)
45524	45524-87705	Cap, Steering Rack Guide Spring
45524	90041-70277	Nut(For Steering Rack Guide Spring Cap)
45535	45535-B2010	Boot, Steering Rack, No.1
45535	45538-B2020	Clamp(For Steering Rack Boot)
45535	45537-97201	Clip(For Steering Rack Boot)
45537	90041-70357	Nut, Rack End Lock

OEM	Part name	Category
45046-B9210	End Sub-Assy, Tie Rod, Rh	Front Steering Gear & Link ([04.2016 - ] (1604- ))
45047-B9150	End Sub-Assy, Tie Rod, Lh	Front Steering Gear & Link ([04.2016 - ] (1604- ))
45479-B2010	Seal, Steering Link Joint Dust	Front Steering Gear & Link ([04.2016 - ] (1604- ))
45502-B1390	Gear Assy, Steering	Front Steering Gear & Link ([04.2016 - ] (1604- ))
45503-B1020	End Sub-Assy, Steering Rack	Front Steering Gear & Link ([04.2016 - ] (1604- ))
45514-B2010	Bracket, Steering Rack Housing, No.1	Front Steering Gear & Link ([04.2016 - ] (1604- ))
45516-B1030	Grommet, Steering Rack Housing, No.1	Front Steering Gear & Link ([04.2016 - ] (1604- ))
45516-B2110	Bush, Steering Rack Housing, No.1	Front Steering Gear & Link ([04.2016 - ] (1604- ))
45516-B2120	Bush, Steering Rack Housing, No.2	Front Steering Gear & Link ([04.2016 - ] (1604- ))
45523-B1030	Guide, Rack(For Steering Gear)	Front Steering Gear & Link ([04.2016 - ] (1604- ))
45524-87705	Cap, Steering Rack Guide Spring	Front Steering Gear & Link ([04.2016 - ] (1604- ))
45535-B2010	Boot, Steering Rack, No.1	Front Steering Gear & Link ([04.2016 - ] (1604- ))
45537-97201	Clip(For Steering Rack Boot)	Front Steering Gear & Link ([04.2016 - ] (1604- ))
45538-B2020	Clamp(For Steering Rack Boot)	Front Steering Gear & Link ([04.2016 - ] (1604- ))
90041-05303	Bolt, Steering Rack Housing	Front Steering Gear & Link ([04.2016 - ] (1604- ))
90041-20051	Bolt, Steering Gear Housing	Front Steering Gear & Link ([04.2016 - ] (1604- ))
90041-70277	Nut(For Steering Rack Guide Spring Cap)	Front Steering Gear & Link ([04.2016 - ] (1604- ))
90041-70357	Nut, Rack End Lock	Front Steering Gear & Link ([04.2016 - ] (1604- ))
90041-77011	Nut, Lock	Front Steering Gear & Link ([04.2016 - ] (1604- ))
90042-08036	Spacer(For Rack Guide)	Front Steering Gear & Link ([04.2016 - ] (1604- ))
90045-01818	Spring(For Steering Gear Rack Guide)	Front Steering Gear & Link ([04.2016 - ] (1604- ))
