M710A

Toyota PASSO · 2016 · 2,607 parts · 165 categories

← Back to categories

2,607 items

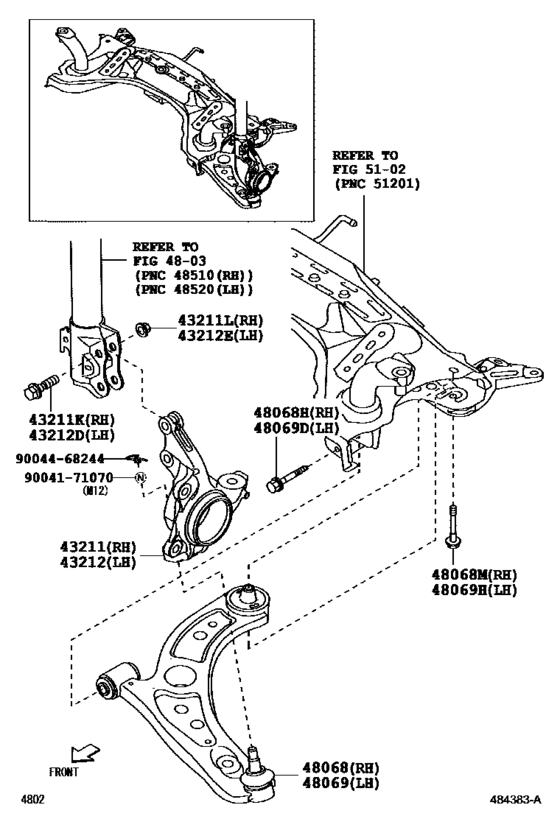

Front Axle Arm & Steering Knuckle ([04.2016 - ] (1604- )) 10

#	OEM	Part name
43211	43211-B1060	Knuckle, Steering, Rh
43211	90041-01701	Bolt (For Steering Knuckle Rh)
43211	90041-70393	Nut (For Steering Knuckle Rh)
43212	43212-B1060	Knuckle, Steering, Lh
48068	48068-B1120	Arm Sub-Assy, Front Suspension, Lower No.1 Rh
48068	90041-05296	Bolt(For Front Suspension Lower Arm No.1 Rh)
48068	90041-05482	Bolt(For Front Suspension Lower Arm No.2 Rh)
48069	48069-B1120	Arm Sub-Assy, Front Suspension, Lower No.1 Lh
9004171070	90041-71070	New Genuine Part
9004468244	90044-68244	New Genuine Part

OEM	Part name	Category
43211-B1060	Knuckle, Steering, Rh	Front Axle Arm & Steering Knuckle ([04.2016 - ] (1604- ))
43212-B1060	Knuckle, Steering, Lh	Front Axle Arm & Steering Knuckle ([04.2016 - ] (1604- ))
48068-B1120	Arm Sub-Assy, Front Suspension, Lower No.1 Rh	Front Axle Arm & Steering Knuckle ([04.2016 - ] (1604- ))
48069-B1120	Arm Sub-Assy, Front Suspension, Lower No.1 Lh	Front Axle Arm & Steering Knuckle ([04.2016 - ] (1604- ))
90041-01701	Bolt (For Steering Knuckle Rh)	Front Axle Arm & Steering Knuckle ([04.2016 - ] (1604- ))
90041-05296	Bolt(For Front Suspension Lower Arm No.1 Rh)	Front Axle Arm & Steering Knuckle ([04.2016 - ] (1604- ))
90041-05482	Bolt(For Front Suspension Lower Arm No.2 Rh)	Front Axle Arm & Steering Knuckle ([04.2016 - ] (1604- ))
90041-70393	Nut (For Steering Knuckle Rh)	Front Axle Arm & Steering Knuckle ([04.2016 - ] (1604- ))
90041-71070	New Genuine Part	Front Axle Arm & Steering Knuckle ([04.2016 - ] (1604- ))
90044-68244	New Genuine Part	Front Axle Arm & Steering Knuckle ([04.2016 - ] (1604- ))
