Search › Model › M710A

M710A

Toyota PASSO · 2016 · 2,607 parts · 165 categories

2,607 items

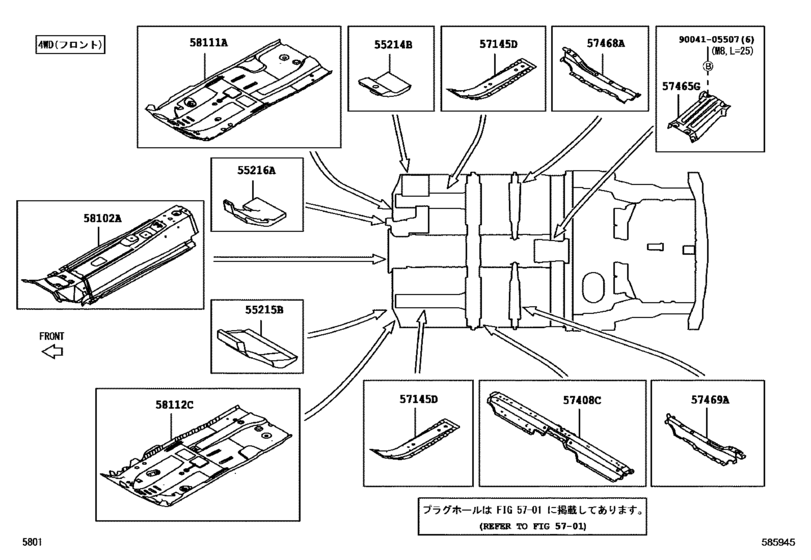

Floor Pan & Lower Back Panel ([04.2016 - ] (1604- )M710) 26

#	OEM	Part name
55214	55214-B1050	Pad, Dash Panel Insulator, No.2
55215	55215-B1050	Pad, Dash Panel Insulator, No.3
55216	55216-B1060	Pad, Dash Panel Insulator, No.4
57145	57145-B1010	Reinforcement, Front Side Member To Floor Pan
57408	57051-B1050	Member Sub-Assy, Front Floor Cross
57465	57465-B1020	Gusset, Center Floor Crossmember
57468	57468-B1030	Bracket, Front Seat, Outside, Rear Rh
57469	57469-B1030	Bracket, Front Seat, Outside, Rear Lh
57661	57661-B1040	Member, Rear Floor Cross, Front
57663	57663-B1030	Panel, Rear Floor Side, Rear Rh
57664	57664-B1030	Panel, Rear Floor Side, Rear Lh
58102	58102-B1550	Reinforcement Sub-Assy, Front Floor
58111	58111-B1010	Pan, Front Floor, Rh
58112	58112-B1020	Panel, Front Floor, Lh
58214	58214-B1010	Bracket, Jack Support
58305	58351-B1030	Bracket Sub-Assy, Spare Wheel Clamp
58307	58307-B1060	Panel Sub-Assy, Body Lower Back
58308	90048-71198	Plug, Hole(For Lower Back)
58311	58311-B1040	Pan, Rear Floor
58315	58315-B1030	Extension Rear Floor Side Panel, Front Rh
58317	58317-B1030	Extension, Rear Floor Side Panel, Rear Lh
58325	58325-B1010	Cover, Rear Floor Service Hole
58335	58335-B1010	Seal, Rear Floor Side Service Hole Cover
64759	64759-B1010	Cover, Shock Absorber Head
9004105507	90041-05507	New Genuine Part
9004874004	90048-74004	Cover, Hole(For Lower Back)

OEM	Part name	Category
55214-B1050	Pad, Dash Panel Insulator, No.2	Floor Pan & Lower Back Panel ([04.2016 - ] (1604- )M710)
55215-B1050	Pad, Dash Panel Insulator, No.3	Floor Pan & Lower Back Panel ([04.2016 - ] (1604- )M710)
55216-B1060	Pad, Dash Panel Insulator, No.4	Floor Pan & Lower Back Panel ([04.2016 - ] (1604- )M710)
57051-B1050	Member Sub-Assy, Front Floor Cross	Floor Pan & Lower Back Panel ([04.2016 - ] (1604- )M710)
57145-B1010	Reinforcement, Front Side Member To Floor Pan	Floor Pan & Lower Back Panel ([04.2016 - ] (1604- )M710)
57465-B1020	Gusset, Center Floor Crossmember	Floor Pan & Lower Back Panel ([04.2016 - ] (1604- )M710)
57468-B1030	Bracket, Front Seat, Outside, Rear Rh	Floor Pan & Lower Back Panel ([04.2016 - ] (1604- )M710)
57469-B1030	Bracket, Front Seat, Outside, Rear Lh	Floor Pan & Lower Back Panel ([04.2016 - ] (1604- )M710)
57661-B1040	Member, Rear Floor Cross, Front	Floor Pan & Lower Back Panel ([04.2016 - ] (1604- )M710)
57663-B1030	Panel, Rear Floor Side, Rear Rh	Floor Pan & Lower Back Panel ([04.2016 - ] (1604- )M710)
57664-B1030	Panel, Rear Floor Side, Rear Lh	Floor Pan & Lower Back Panel ([04.2016 - ] (1604- )M710)
58102-B1550	Reinforcement Sub-Assy, Front Floor	Floor Pan & Lower Back Panel ([04.2016 - ] (1604- )M710)
58111-B1010	Pan, Front Floor, Rh	Floor Pan & Lower Back Panel ([04.2016 - ] (1604- )M710)
58112-B1020	Panel, Front Floor, Lh	Floor Pan & Lower Back Panel ([04.2016 - ] (1604- )M710)
58214-B1010	Bracket, Jack Support	Floor Pan & Lower Back Panel ([04.2016 - ] (1604- )M710)
58307-B1060	Panel Sub-Assy, Body Lower Back	Floor Pan & Lower Back Panel ([04.2016 - ] (1604- )M710)
58311-B1040	Pan, Rear Floor	Floor Pan & Lower Back Panel ([04.2016 - ] (1604- )M710)
58315-B1030	Extension Rear Floor Side Panel, Front Rh	Floor Pan & Lower Back Panel ([04.2016 - ] (1604- )M710)
58317-B1030	Extension, Rear Floor Side Panel, Rear Lh	Floor Pan & Lower Back Panel ([04.2016 - ] (1604- )M710)
58325-B1010	Cover, Rear Floor Service Hole	Floor Pan & Lower Back Panel ([04.2016 - ] (1604- )M710)
58335-B1010	Seal, Rear Floor Side Service Hole Cover	Floor Pan & Lower Back Panel ([04.2016 - ] (1604- )M710)
58351-B1030	Bracket Sub-Assy, Spare Wheel Clamp	Floor Pan & Lower Back Panel ([04.2016 - ] (1604- )M710)
64759-B1010	Cover, Shock Absorber Head	Floor Pan & Lower Back Panel ([04.2016 - ] (1604- )M710)
90041-05507	New Genuine Part	Floor Pan & Lower Back Panel ([04.2016 - ] (1604- )M710)
90048-71198	Plug, Hole(For Lower Back)	Floor Pan & Lower Back Panel ([04.2016 - ] (1604- )M710)
90048-74004	Cover, Hole(For Lower Back)	Floor Pan & Lower Back Panel ([04.2016 - ] (1604- )M710)
