Search › Model › M700A
M700A

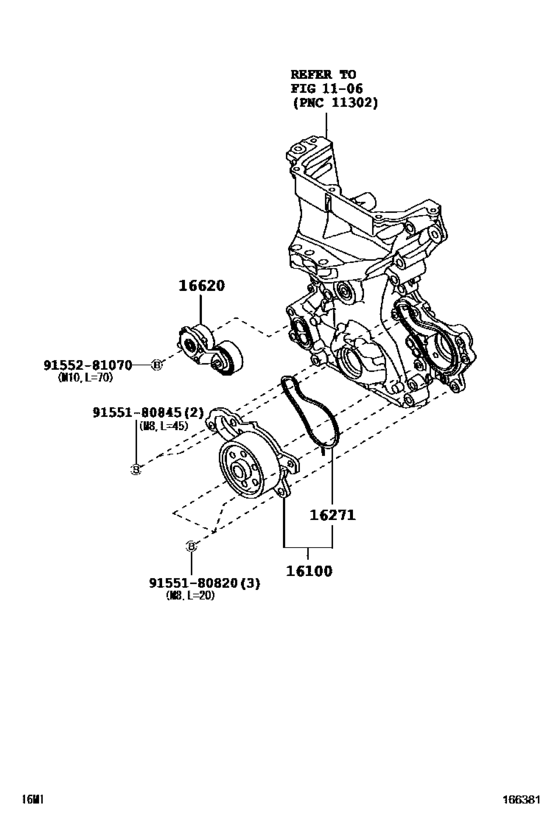

Water Pump ([04.2016 - ] (1604- )) 8
| # | OEM | Part name |
|---|---|---|
| 16100 | 16100-80012 | Pump Assy, Engine Water |
| 16100 | 16100-80017 | Pump Assy, Engine Water |
| 16271 | 16271-40030 | Gasket, Water Pump |
| 16620 | 16620-40020 | Tensioner Assy, V-Ribbed Belt |
| 16620 | 16620-40021 | Tensioner Assy, V-Ribbed Belt |
| 9155180820 | 91551-80820 | Bolt, W/washer (For Transmission Oil Pump Cover) |
| 9155180845 | 91551-80845 | BOLT FLANGE |
| 9155281070 | 91552-81070 | Bolt(For Alternator) |
| OEM | Part name | Category |
|---|---|---|
| 16100-80012 | Pump Assy, Engine Water | Water Pump ([04.2016 - ] (1604- )) |
| 16100-80017 | Pump Assy, Engine Water | Water Pump ([04.2016 - ] (1604- )) |
| 16271-40030 | Gasket, Water Pump | Water Pump ([04.2016 - ] (1604- )) |
| 16620-40020 | Tensioner Assy, V-Ribbed Belt | Water Pump ([04.2016 - ] (1604- )) |
| 16620-40021 | Tensioner Assy, V-Ribbed Belt | Water Pump ([04.2016 - ] (1604- )) |
| 91551-80820 | Bolt, W/washer (For Transmission Oil Pump Cover) | Water Pump ([04.2016 - ] (1604- )) |
| 91551-80845 | BOLT FLANGE | Water Pump ([04.2016 - ] (1604- )) |
| 91552-81070 | Bolt(For Alternator) | Water Pump ([04.2016 - ] (1604- )) |
