M700A

Toyota PASSO · 2016 · 2,472 parts · 162 categories

2,472 items

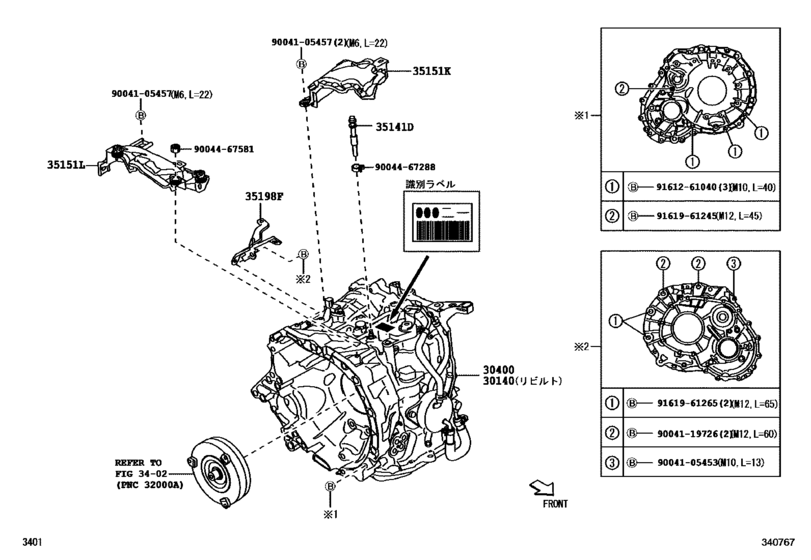

Transaxle Assy(Cvt) ([04.2016 - ] (1604- )) 80

#	OEM	Part name
12282	12282-B2030	Hanger, Transaxle
30140	30140-B0090	Transaxle Assy, Cvt, Rebuilt(W/o Torque Converter)
30400	30400-B1090	Transaxle Assy, Continuously Variable
30400	90043-11421	Seal, Type T Oil, No.1(For Cvt)
30400	90043-11422	Seal, Type T Oil, No.2(For Cvt)
30400	90044-30325	Gasket, Transaxle Hole Plug
30400	90043-74061	Bearing, Thrust Needle Roller
30400	90043-74053	Bearing, Thrust Needle Roller
35013	35013-B1020	Tube Sub-Assy, Transmission Oil Filler
35013	90043-01160	Ring, O(For Transmission Oil Filler Tube)
35075	35743-B2020	Gear Sub-Assy, Front Planetary Ring
35103	35103-B1080	Gage Sub-Assy, Transmission Oil Level
35106	35160-B2030	Pan Sub-Assy, Transaxle Oil(Cvt)
35106	90043-41041	Plug, Water Drain Cock(For Cylinder Block)
35106	90044-30281	Gasket(For Oil Pan Drain Plug)
35106	90041-20203	Bolt (For Automatic Transmission Oil Pan)
35112	35111-B1012	Case, Torque Converter & Diffrential
35141	35121-B1040	Hose(For Breather Plug)
35141	90049-15054	Plug, Breather - BREATHER, NO.1(CVT)
35145	35145-B2011	Gasket, Transaxle Case
35151	35151-B1010	Cover, Automatic Transmission Case
35151	35151-B1030	Cover, Automatic Transmission Case
35168	35168-B2020	Gasket, Transaxle Oil Pan(Cvt)
35198	82715-B1440	Bracket, Wire Harness Clamp
35240	35240-B2020	Solenoid Assy, Transmission 3Way, No.1
35260	35260-B2010	Solenoid Assy, Transmission 3Way, No.4
35303	35303-B2012	Strainer Sub-Assy, Oil
35303	35303-B2050	Strainer Sub-Assy, Oil
35330	35398-B2010	Strainer Assy, Oil
35330	90043-01347	Ring, O (For Oil Strainer)
35394	33449-B2010	Magnet, Transaxle - OIL CLEANER (FOR TRANSMISSION)
35410	35410-B2130	Body Assy, Transmission Valve
35572	35572-B2010	Lever, Transmission Control Shaft
35603	35608-B2010	Spring Sub-Assy, Forward Clutch Return
35610	90043-01336	Ring, O (For Forward Multiple Disc Clutch)
35612	35602-B2010	Piston, Forward Clutch
35633	35633-B2051	Disc, Clutch (For Forward Multiple Disc Clutch)
35634	35634-B2010	Plate, Clutch, No.1(For Forward Multiple Disc Clutch)
35671	35671-B2010	Plate, Brake Cushion
35672	35672-B2010	Plate, Clutch Cushion
35676	35676-B2010	Flange, Brake
35676	35676-B2020	Flange, Brake
35676	35676-B2030	Flange, Brake
35676	35676-B2040	Flange, Brake
35676	35676-B2050	Flange, Brake
35676	35676-B2060	Flange, Brake
35676	35676-B2070	Flange, Brake
35681	35681-B2040	Disc, Brake, No.1
35691	35632-B2010	Plate, Brake, No.1
35701	90043-74054	Bearing, Thrust Needle Roller (For Input Shaft)
35701	90043-74055	Bearing, Thrust Needle Roller (For Input Shaft)
35701	90043-74056	Bearing, Thrust Needle Roller (For Input Shaft)
35701	90043-74057	Bearing, Thrust Needle Roller (For Input Shaft)
35701	90043-74063	Bearing, Thrust Needle Roller (For Input Shaft)
35701	90043-74064	Bearing, Thrust Needle Roller (For Input Shaft)
35701	90043-74065	Bearing, Thrust Needle Roller (For Input Shaft)
35701	35701-B2021	Shaft Sub-Assy, Input
35720	35720-B2070	Gear Assy, Planetary
82125	82125-B2060	Wire, Transmission
9004105269	90041-05269	New Genuine Part
9004105410	90041-05410	New Genuine Part
9004105449	90041-05449	New Genuine Part
9004105453	90041-05453	Plug, Transaxle Hole
9004105454	90041-05454	New Genuine Part
9004105455	90041-05455	New Genuine Part
9004105457	90041-05457	New Genuine Part
9004109257	90041-09257	New Genuine Part
9004109260	90041-09260	New Genuine Part
9004119726	90041-19726	New Genuine Part
9004120248	90041-20248	New Genuine Part
9004179109	90041-79109	New Genuine Part
9004250157	90042-50157	Pin, Straight(For Manual Transmission Case)
9004301281	90043-01281	Ring, O(For Trans Solenoid Connector)
9004301335	90043-01335	New Genuine Part
9004430321	90044-30321	New Genuine Part
9004467288	90044-67288	CLIP
9004467581	90044-67581	New Genuine Part
9161261040	91612-61040	Bolt(For Transmission Case & Engine Setting)
9161961245	91619-61245	Bolt(For Transaxle & Engine Setting)
9161961265	91619-61265	Bolt(For Transaxle & Engine Setting)

OEM	Part name	Category
12282-B2030	Hanger, Transaxle	Transaxle Assy(Cvt) ([04.2016 - ] (1604- ))
30140-B0090	Transaxle Assy, Cvt, Rebuilt(W/o Torque Converter)	Transaxle Assy(Cvt) ([04.2016 - ] (1604- ))
30400-B1090	Transaxle Assy, Continuously Variable	Transaxle Assy(Cvt) ([04.2016 - ] (1604- ))
33449-B2010	Magnet, Transaxle - OIL CLEANER (FOR TRANSMISSION)	Transaxle Assy(Cvt) ([04.2016 - ] (1604- ))
35013-B1020	Tube Sub-Assy, Transmission Oil Filler	Transaxle Assy(Cvt) ([04.2016 - ] (1604- ))
35103-B1080	Gage Sub-Assy, Transmission Oil Level	Transaxle Assy(Cvt) ([04.2016 - ] (1604- ))
35111-B1012	Case, Torque Converter & Diffrential	Transaxle Assy(Cvt) ([04.2016 - ] (1604- ))
35121-B1040	Hose(For Breather Plug)	Transaxle Assy(Cvt) ([04.2016 - ] (1604- ))
35145-B2011	Gasket, Transaxle Case	Transaxle Assy(Cvt) ([04.2016 - ] (1604- ))
35151-B1010	Cover, Automatic Transmission Case	Transaxle Assy(Cvt) ([04.2016 - ] (1604- ))
35151-B1030	Cover, Automatic Transmission Case	Transaxle Assy(Cvt) ([04.2016 - ] (1604- ))
35160-B2030	Pan Sub-Assy, Transaxle Oil(Cvt)	Transaxle Assy(Cvt) ([04.2016 - ] (1604- ))
35168-B2020	Gasket, Transaxle Oil Pan(Cvt)	Transaxle Assy(Cvt) ([04.2016 - ] (1604- ))
35240-B2020	Solenoid Assy, Transmission 3Way, No.1	Transaxle Assy(Cvt) ([04.2016 - ] (1604- ))
35260-B2010	Solenoid Assy, Transmission 3Way, No.4	Transaxle Assy(Cvt) ([04.2016 - ] (1604- ))
35303-B2012	Strainer Sub-Assy, Oil	Transaxle Assy(Cvt) ([04.2016 - ] (1604- ))
35303-B2050	Strainer Sub-Assy, Oil	Transaxle Assy(Cvt) ([04.2016 - ] (1604- ))
35398-B2010	Strainer Assy, Oil	Transaxle Assy(Cvt) ([04.2016 - ] (1604- ))
35410-B2130	Body Assy, Transmission Valve	Transaxle Assy(Cvt) ([04.2016 - ] (1604- ))
35572-B2010	Lever, Transmission Control Shaft	Transaxle Assy(Cvt) ([04.2016 - ] (1604- ))
35602-B2010	Piston, Forward Clutch	Transaxle Assy(Cvt) ([04.2016 - ] (1604- ))
35608-B2010	Spring Sub-Assy, Forward Clutch Return	Transaxle Assy(Cvt) ([04.2016 - ] (1604- ))
35632-B2010	Plate, Brake, No.1	Transaxle Assy(Cvt) ([04.2016 - ] (1604- ))
35633-B2051	Disc, Clutch (For Forward Multiple Disc Clutch)	Transaxle Assy(Cvt) ([04.2016 - ] (1604- ))
35634-B2010	Plate, Clutch, No.1(For Forward Multiple Disc Clutch)	Transaxle Assy(Cvt) ([04.2016 - ] (1604- ))
35671-B2010	Plate, Brake Cushion	Transaxle Assy(Cvt) ([04.2016 - ] (1604- ))
35672-B2010	Plate, Clutch Cushion	Transaxle Assy(Cvt) ([04.2016 - ] (1604- ))
35676-B2010	Flange, Brake	Transaxle Assy(Cvt) ([04.2016 - ] (1604- ))
35676-B2020	Flange, Brake	Transaxle Assy(Cvt) ([04.2016 - ] (1604- ))
35676-B2030	Flange, Brake	Transaxle Assy(Cvt) ([04.2016 - ] (1604- ))
35676-B2040	Flange, Brake	Transaxle Assy(Cvt) ([04.2016 - ] (1604- ))
35676-B2050	Flange, Brake	Transaxle Assy(Cvt) ([04.2016 - ] (1604- ))
35676-B2060	Flange, Brake	Transaxle Assy(Cvt) ([04.2016 - ] (1604- ))
35676-B2070	Flange, Brake	Transaxle Assy(Cvt) ([04.2016 - ] (1604- ))
35681-B2040	Disc, Brake, No.1	Transaxle Assy(Cvt) ([04.2016 - ] (1604- ))
35701-B2021	Shaft Sub-Assy, Input	Transaxle Assy(Cvt) ([04.2016 - ] (1604- ))
35720-B2070	Gear Assy, Planetary	Transaxle Assy(Cvt) ([04.2016 - ] (1604- ))
35743-B2020	Gear Sub-Assy, Front Planetary Ring	Transaxle Assy(Cvt) ([04.2016 - ] (1604- ))
82125-B2060	Wire, Transmission	Transaxle Assy(Cvt) ([04.2016 - ] (1604- ))
82715-B1440	Bracket, Wire Harness Clamp	Transaxle Assy(Cvt) ([04.2016 - ] (1604- ))
90041-05269	New Genuine Part	Transaxle Assy(Cvt) ([04.2016 - ] (1604- ))
90041-05410	New Genuine Part	Transaxle Assy(Cvt) ([04.2016 - ] (1604- ))
90041-05449	New Genuine Part	Transaxle Assy(Cvt) ([04.2016 - ] (1604- ))
90041-05453	Plug, Transaxle Hole	Transaxle Assy(Cvt) ([04.2016 - ] (1604- ))
90041-05454	New Genuine Part	Transaxle Assy(Cvt) ([04.2016 - ] (1604- ))
90041-05455	New Genuine Part	Transaxle Assy(Cvt) ([04.2016 - ] (1604- ))
90041-05457	New Genuine Part	Transaxle Assy(Cvt) ([04.2016 - ] (1604- ))
90041-09257	New Genuine Part	Transaxle Assy(Cvt) ([04.2016 - ] (1604- ))
90041-09260	New Genuine Part	Transaxle Assy(Cvt) ([04.2016 - ] (1604- ))
90041-19726	New Genuine Part	Transaxle Assy(Cvt) ([04.2016 - ] (1604- ))
90041-20203	Bolt (For Automatic Transmission Oil Pan)	Transaxle Assy(Cvt) ([04.2016 - ] (1604- ))
90041-20248	New Genuine Part	Transaxle Assy(Cvt) ([04.2016 - ] (1604- ))
90041-79109	New Genuine Part	Transaxle Assy(Cvt) ([04.2016 - ] (1604- ))
90042-50157	Pin, Straight(For Manual Transmission Case)	Transaxle Assy(Cvt) ([04.2016 - ] (1604- ))
90043-01160	Ring, O(For Transmission Oil Filler Tube)	Transaxle Assy(Cvt) ([04.2016 - ] (1604- ))
90043-01281	Ring, O(For Trans Solenoid Connector)	Transaxle Assy(Cvt) ([04.2016 - ] (1604- ))
90043-01335	New Genuine Part	Transaxle Assy(Cvt) ([04.2016 - ] (1604- ))
90043-01336	Ring, O (For Forward Multiple Disc Clutch)	Transaxle Assy(Cvt) ([04.2016 - ] (1604- ))
90043-01347	Ring, O (For Oil Strainer)	Transaxle Assy(Cvt) ([04.2016 - ] (1604- ))
90043-11421	Seal, Type T Oil, No.1(For Cvt)	Transaxle Assy(Cvt) ([04.2016 - ] (1604- ))
90043-11422	Seal, Type T Oil, No.2(For Cvt)	Transaxle Assy(Cvt) ([04.2016 - ] (1604- ))
90043-41041	Plug, Water Drain Cock(For Cylinder Block)	Transaxle Assy(Cvt) ([04.2016 - ] (1604- ))
90043-74053	Bearing, Thrust Needle Roller	Transaxle Assy(Cvt) ([04.2016 - ] (1604- ))
90043-74054	Bearing, Thrust Needle Roller (For Input Shaft)	Transaxle Assy(Cvt) ([04.2016 - ] (1604- ))
90043-74055	Bearing, Thrust Needle Roller (For Input Shaft)	Transaxle Assy(Cvt) ([04.2016 - ] (1604- ))
90043-74056	Bearing, Thrust Needle Roller (For Input Shaft)	Transaxle Assy(Cvt) ([04.2016 - ] (1604- ))
90043-74057	Bearing, Thrust Needle Roller (For Input Shaft)	Transaxle Assy(Cvt) ([04.2016 - ] (1604- ))
90043-74061	Bearing, Thrust Needle Roller	Transaxle Assy(Cvt) ([04.2016 - ] (1604- ))
90043-74063	Bearing, Thrust Needle Roller (For Input Shaft)	Transaxle Assy(Cvt) ([04.2016 - ] (1604- ))
90043-74064	Bearing, Thrust Needle Roller (For Input Shaft)	Transaxle Assy(Cvt) ([04.2016 - ] (1604- ))
90043-74065	Bearing, Thrust Needle Roller (For Input Shaft)	Transaxle Assy(Cvt) ([04.2016 - ] (1604- ))
90044-30281	Gasket(For Oil Pan Drain Plug)	Transaxle Assy(Cvt) ([04.2016 - ] (1604- ))
90044-30321	New Genuine Part	Transaxle Assy(Cvt) ([04.2016 - ] (1604- ))
90044-30325	Gasket, Transaxle Hole Plug	Transaxle Assy(Cvt) ([04.2016 - ] (1604- ))
90044-67288	CLIP	Transaxle Assy(Cvt) ([04.2016 - ] (1604- ))
90044-67581	New Genuine Part	Transaxle Assy(Cvt) ([04.2016 - ] (1604- ))
90049-15054	Plug, Breather - BREATHER, NO.1(CVT)	Transaxle Assy(Cvt) ([04.2016 - ] (1604- ))
91612-61040	Bolt(For Transmission Case & Engine Setting)	Transaxle Assy(Cvt) ([04.2016 - ] (1604- ))
91619-61245	Bolt(For Transaxle & Engine Setting)	Transaxle Assy(Cvt) ([04.2016 - ] (1604- ))
91619-61265	Bolt(For Transaxle & Engine Setting)	Transaxle Assy(Cvt) ([04.2016 - ] (1604- ))
