Search › Model › M700A

M700A

Toyota PASSO · 2016 · 2,472 parts · 162 categories

← Back to categories

2,472 items

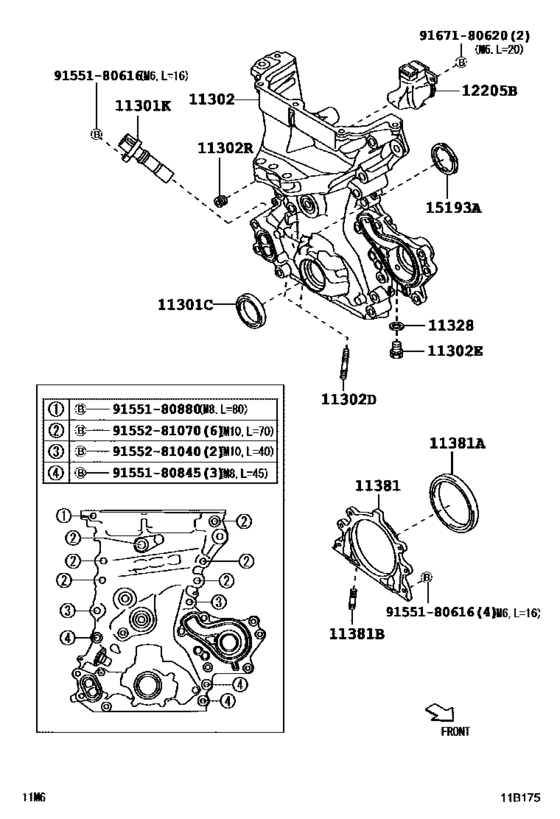

Timing Gear Cover & Rear End Plate ([04.2016 - ] (1604- )) 19

#	OEM	Part name
11301	90311-38092	Seal, Oil(For Timing Gear Case Or Timing Chain Case) - OIL(FOR TIMING CHAIN OR BELT COVER)
11301	90919-05062	Sensor, Crank Position
11302	11310-B1030	Cover Sub-Assy, Timing Chain Or Belt
11302	90116-06134	Bolt, Stud(For Timing Gear Cover)
11302	90341-08008	Plug, Straight(For Timing Gear Cover)
11302	90344-53006	Plug, Tight, No.1(For Timing Gear Cover)
11328	90430-08020	Gasket, Timing Gear Or Chain Cover
11381	11381-40030	Retainer, Engine Rear Oil Seal
11381	90311-73005	Seal, Engine Rear Oil
11381	90126-06029	Bolt, Stud(For Vacuum Transmitting Pipe)
11381	90126-A0014	Bolt, Stud(For Oil Strainer)
12205	12205-40020	Case Sub-Assy, Ventilation
15193	15193-40010	Gasket, Oil Pump
9155180616	91551-80616	BOLT FLANGE
9155180845	91551-80845	BOLT FLANGE
9155180880	91551-80880	Bolt, Compressor, No.3
9155281040	91552-81040	Bolt(For Alternator)
9155281070	91552-81070	Bolt(For Alternator)
9167180620	91671-80620	New Genuine Part

OEM	Part name	Category
11310-B1030	Cover Sub-Assy, Timing Chain Or Belt	Timing Gear Cover & Rear End Plate ([04.2016 - ] (1604- ))
11381-40030	Retainer, Engine Rear Oil Seal	Timing Gear Cover & Rear End Plate ([04.2016 - ] (1604- ))
12205-40020	Case Sub-Assy, Ventilation	Timing Gear Cover & Rear End Plate ([04.2016 - ] (1604- ))
15193-40010	Gasket, Oil Pump	Timing Gear Cover & Rear End Plate ([04.2016 - ] (1604- ))
90116-06134	Bolt, Stud(For Timing Gear Cover)	Timing Gear Cover & Rear End Plate ([04.2016 - ] (1604- ))
90126-06029	Bolt, Stud(For Vacuum Transmitting Pipe)	Timing Gear Cover & Rear End Plate ([04.2016 - ] (1604- ))
90126-A0014	Bolt, Stud(For Oil Strainer)	Timing Gear Cover & Rear End Plate ([04.2016 - ] (1604- ))
90311-38092	Seal, Oil(For Timing Gear Case Or Timing Chain Case) - OIL(FOR TIMING CHAIN OR BELT COVER)	Timing Gear Cover & Rear End Plate ([04.2016 - ] (1604- ))
90311-73005	Seal, Engine Rear Oil	Timing Gear Cover & Rear End Plate ([04.2016 - ] (1604- ))
90341-08008	Plug, Straight(For Timing Gear Cover)	Timing Gear Cover & Rear End Plate ([04.2016 - ] (1604- ))
90344-53006	Plug, Tight, No.1(For Timing Gear Cover)	Timing Gear Cover & Rear End Plate ([04.2016 - ] (1604- ))
90430-08020	Gasket, Timing Gear Or Chain Cover	Timing Gear Cover & Rear End Plate ([04.2016 - ] (1604- ))
90919-05062	Sensor, Crank Position	Timing Gear Cover & Rear End Plate ([04.2016 - ] (1604- ))
91551-80616	BOLT FLANGE	Timing Gear Cover & Rear End Plate ([04.2016 - ] (1604- ))
91551-80845	BOLT FLANGE	Timing Gear Cover & Rear End Plate ([04.2016 - ] (1604- ))
91551-80880	Bolt, Compressor, No.3	Timing Gear Cover & Rear End Plate ([04.2016 - ] (1604- ))
91552-81040	Bolt(For Alternator)	Timing Gear Cover & Rear End Plate ([04.2016 - ] (1604- ))
91552-81070	Bolt(For Alternator)	Timing Gear Cover & Rear End Plate ([04.2016 - ] (1604- ))
91671-80620	New Genuine Part	Timing Gear Cover & Rear End Plate ([04.2016 - ] (1604- ))

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 162
Collected: 2026-08-04
