| 31324-B2020 |
Shaft, Brake Pedal |

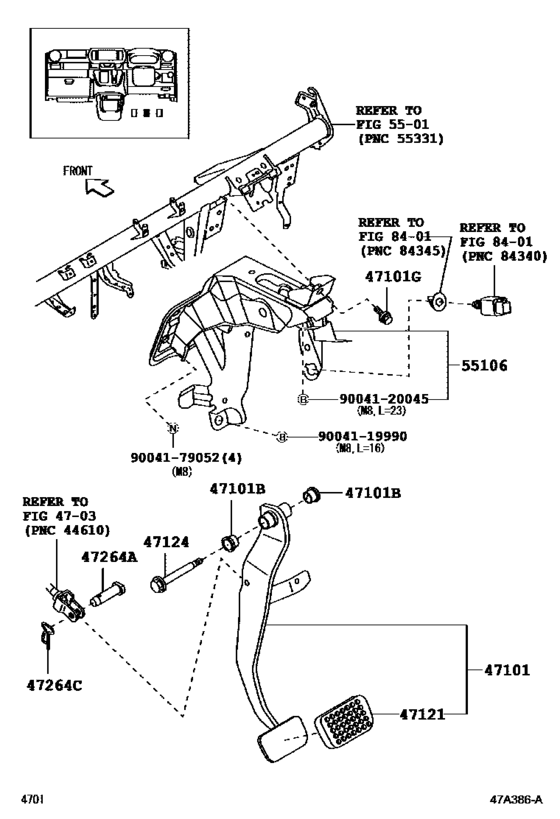

Brake Pedal & Bracket ([04.2016 - ] (1604- )) |
| 45898-B2010 |
Bolt, Brake Pedal Stop, No.1 |
Brake Pedal & Bracket ([04.2016 - ] (1604- )) |
| 47110-B1100 |
Pedal Sub-Assy, Brake |
Brake Pedal & Bracket ([04.2016 - ] (1604- )) |
| 47121-87202 |
Pad, Brake Pedal |
Brake Pedal & Bracket ([04.2016 - ] (1604- )) |
| 55106-B1121 |
Support Sub-Assy, Brake Pedal |
Brake Pedal & Bracket ([04.2016 - ] (1604- )) |
| 90041-19990 |
New Genuine Part |
Brake Pedal & Bracket ([04.2016 - ] (1604- )) |
| 90041-20045 |
New Genuine Part |
Brake Pedal & Bracket ([04.2016 - ] (1604- )) |
| 90041-79052 |
NUT |
Brake Pedal & Bracket ([04.2016 - ] (1604- )) |
| 90042-40151 |
Pin(For Push Rod) |
Brake Pedal & Bracket ([04.2016 - ] (1604- )) |
| 90043-86121 |
Bush(For Clutch Pedal) |
Brake Pedal & Bracket ([04.2016 - ] (1604- )) |
| 90044-68076 |
Clip(For Push Rod Clevis Pin) |
Brake Pedal & Bracket ([04.2016 - ] (1604- )) |
| 90044-68337 |
Clip(For Push Rod Clevis Pin) |
Brake Pedal & Bracket ([04.2016 - ] (1604- )) |
