M35

Nissan STAGEA · 2001 · 3,143 parts · 287 categories

3,143 items

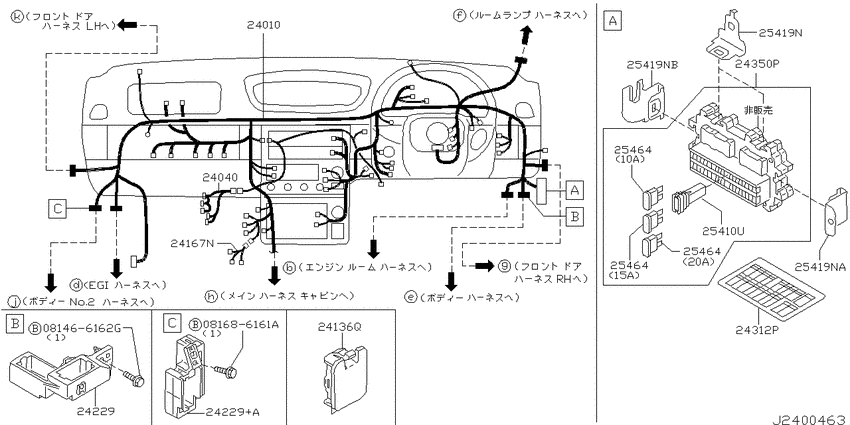

Wiring (2004-08-01 ~ 2005-12-01; ﾒｲﾝﾊｰﾈｽ; W.VQ35DE) 26

#	OEM	Part name
24010	24010-7W101	Harness Assy-Main
24010	24010-7W102	Harness Assy-Main
24010	24010-7W103	Harness Assy-Main
24010	24010-7W104	Harness Assy-Main
24010	24010-AZ51B	Harness Assy-Main
24010	24010-AZ51C	Harness Assy-Main
24010	24010-AZ51D	Harness Assy-Main
24010	24010-AZ51E	Harness Assy-Main
24010	24010-7W100	Harness Assy-Main
24010	24010-AZ51A	Harness Assy-Main
24040	24040-AC500	Harness Assy-Air Conditioner
24040	24040-CM35B	Harness Assy-Air Conditioner
24040	28984-AL500	Plug
24136	24346-AG100	Bracket Assy-Connector
24167	24167-7W100	Harness-Sub
24167	24167-7W101	Harness-Sub
24167	24167-CM35A	Harness-Sub
24229	24356-AL500	Bracket-Junction
24229	24356-AG003	Bracket-Junction
24312	24313-7W100	Label-Fuse Block
24350	24350-7W100	Block-Junction
24350	24350-7W10A	Block-Junction
25410	24321-79902	Puller-Fuse
25419	24317-AL500	Bracket-Fuse Block
25419	24317-AL501	Bracket-Fuse Block
25419	24317-AL502	Bracket-Fuse Block

OEM	Part name	Category
24010-7W100	Harness Assy-Main	Wiring (2004-08-01 ~ 2005-12-01; ﾒｲﾝﾊｰﾈｽ; W.VQ35DE)
24010-7W101	Harness Assy-Main	Wiring (2004-08-01 ~ 2005-12-01; ﾒｲﾝﾊｰﾈｽ; W.VQ35DE)
24010-7W102	Harness Assy-Main	Wiring (2004-08-01 ~ 2005-12-01; ﾒｲﾝﾊｰﾈｽ; W.VQ35DE)
24010-7W103	Harness Assy-Main	Wiring (2004-08-01 ~ 2005-12-01; ﾒｲﾝﾊｰﾈｽ; W.VQ35DE)
24010-7W104	Harness Assy-Main	Wiring (2004-08-01 ~ 2005-12-01; ﾒｲﾝﾊｰﾈｽ; W.VQ35DE)
24010-AZ51A	Harness Assy-Main	Wiring (2004-08-01 ~ 2005-12-01; ﾒｲﾝﾊｰﾈｽ; W.VQ35DE)
24010-AZ51B	Harness Assy-Main	Wiring (2004-08-01 ~ 2005-12-01; ﾒｲﾝﾊｰﾈｽ; W.VQ35DE)
24010-AZ51C	Harness Assy-Main	Wiring (2004-08-01 ~ 2005-12-01; ﾒｲﾝﾊｰﾈｽ; W.VQ35DE)
24010-AZ51D	Harness Assy-Main	Wiring (2004-08-01 ~ 2005-12-01; ﾒｲﾝﾊｰﾈｽ; W.VQ35DE)
24010-AZ51E	Harness Assy-Main	Wiring (2004-08-01 ~ 2005-12-01; ﾒｲﾝﾊｰﾈｽ; W.VQ35DE)
24040-AC500	Harness Assy-Air Conditioner	Wiring (2004-08-01 ~ 2005-12-01; ﾒｲﾝﾊｰﾈｽ; W.VQ35DE)
24040-CM35B	Harness Assy-Air Conditioner	Wiring (2004-08-01 ~ 2005-12-01; ﾒｲﾝﾊｰﾈｽ; W.VQ35DE)
24167-7W100	Harness-Sub	Wiring (2004-08-01 ~ 2005-12-01; ﾒｲﾝﾊｰﾈｽ; W.VQ35DE)
24167-7W101	Harness-Sub	Wiring (2004-08-01 ~ 2005-12-01; ﾒｲﾝﾊｰﾈｽ; W.VQ35DE)
24167-CM35A	Harness-Sub	Wiring (2004-08-01 ~ 2005-12-01; ﾒｲﾝﾊｰﾈｽ; W.VQ35DE)
24313-7W100	Label-Fuse Block	Wiring (2004-08-01 ~ 2005-12-01; ﾒｲﾝﾊｰﾈｽ; W.VQ35DE)
24317-AL500	Bracket-Fuse Block	Wiring (2004-08-01 ~ 2005-12-01; ﾒｲﾝﾊｰﾈｽ; W.VQ35DE)
24317-AL501	Bracket-Fuse Block	Wiring (2004-08-01 ~ 2005-12-01; ﾒｲﾝﾊｰﾈｽ; W.VQ35DE)
24317-AL502	Bracket-Fuse Block	Wiring (2004-08-01 ~ 2005-12-01; ﾒｲﾝﾊｰﾈｽ; W.VQ35DE)
24321-79902	Puller-Fuse	Wiring (2004-08-01 ~ 2005-12-01; ﾒｲﾝﾊｰﾈｽ; W.VQ35DE)
24346-AG100	Bracket Assy-Connector	Wiring (2004-08-01 ~ 2005-12-01; ﾒｲﾝﾊｰﾈｽ; W.VQ35DE)
24350-7W100	Block-Junction	Wiring (2004-08-01 ~ 2005-12-01; ﾒｲﾝﾊｰﾈｽ; W.VQ35DE)
24350-7W10A	Block-Junction	Wiring (2004-08-01 ~ 2005-12-01; ﾒｲﾝﾊｰﾈｽ; W.VQ35DE)
24356-AG003	Bracket-Junction	Wiring (2004-08-01 ~ 2005-12-01; ﾒｲﾝﾊｰﾈｽ; W.VQ35DE)
24356-AL500	Bracket-Junction	Wiring (2004-08-01 ~ 2005-12-01; ﾒｲﾝﾊｰﾈｽ; W.VQ35DE)
28984-AL500	Plug	Wiring (2004-08-01 ~ 2005-12-01; ﾒｲﾝﾊｰﾈｽ; W.VQ35DE)
