Search › Model › M35
M35

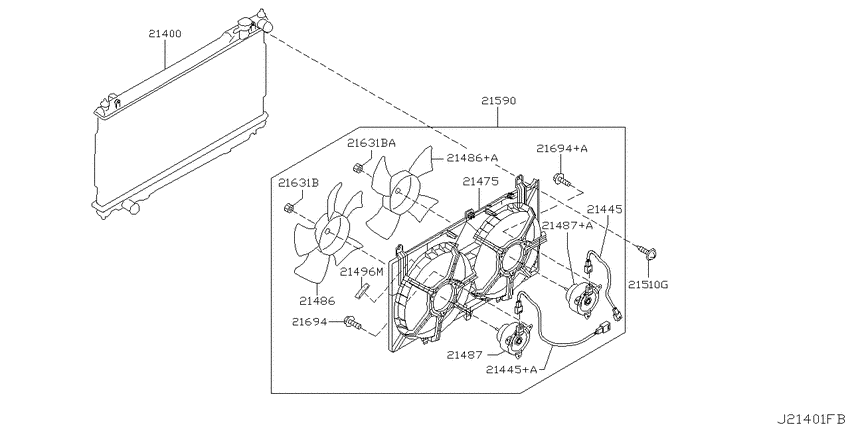

Radiator, shroud & fitting (2004-08-01 ~ ; シュラウド; VQ35DE) 7
| # | OEM | Part name |
|---|---|---|
| 21445 | 92695-CD010 | Harness-Sub |
| 21486 | 21486-CD000 | Fan Assy |
| 21487 | 21487-CD000 | Motor Assy-Fan |
| 21510 | 01456-00421 | SCREW |
| 21590 | 21481-CD000 | Motor & Fan Assy-With Shroud |
| 21590 | 21481-CD00A | Motor & Fan Assy-With Shroud |
| 21694 | 21694-0M300 | Bolt-Special |
| OEM | Part name | Category |
|---|---|---|
| 01456-00421 | SCREW | Radiator, shroud & fitting (2004-08-01 ~ ; シュラウド; VQ35DE) |
| 21481-CD000 | Motor & Fan Assy-With Shroud | Radiator, shroud & fitting (2004-08-01 ~ ; シュラウド; VQ35DE) |
| 21481-CD00A | Motor & Fan Assy-With Shroud | Radiator, shroud & fitting (2004-08-01 ~ ; シュラウド; VQ35DE) |
| 21486-CD000 | Fan Assy | Radiator, shroud & fitting (2004-08-01 ~ ; シュラウド; VQ35DE) |
| 21487-CD000 | Motor Assy-Fan | Radiator, shroud & fitting (2004-08-01 ~ ; シュラウド; VQ35DE) |
| 21694-0M300 | Bolt-Special | Radiator, shroud & fitting (2004-08-01 ~ ; シュラウド; VQ35DE) |
| 92695-CD010 | Harness-Sub | Radiator, shroud & fitting (2004-08-01 ~ ; シュラウド; VQ35DE) |
