Search › Model › M35
M35

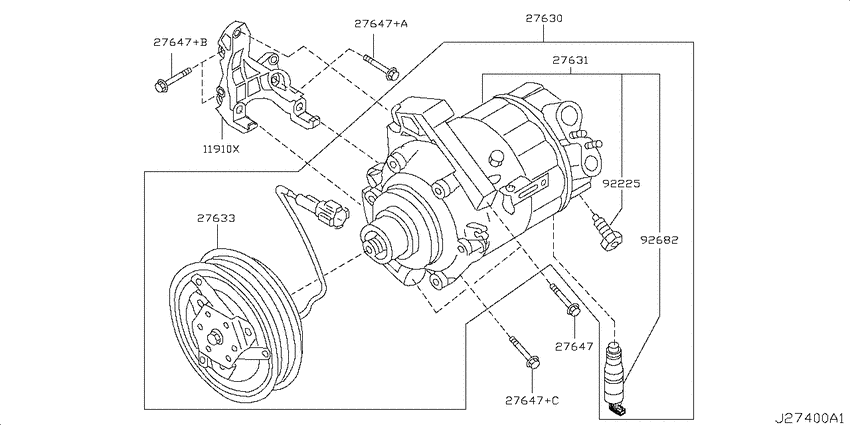

Compressor (2004-08-01 ~ ; W) 14
| # | OEM | Part name |
|---|---|---|
| 11910 | 11910-AM600 | Bracket-Compressor |
| 27630 | 92600-AM800 | Compressor-Cooler |
| 27630 | 92600-AM80A | Compressor-Cooler |
| 27631 | 92610-AM800 | Compressor Unit |
| 27631 | 92610-AM80A | Compressor Unit |
| 27633 | 92660-AG000 | Clutch Assy-Compressor |
| 27647 | 11916-4W011 | Bolt |
| 27647 | 11916-4W01C | Bolt |
| 27647 | 11916-AL500 | Bolt |
| 27647 | 11916-AL50A | Bolt |
| 27647 | 11916-4W013 | Bolt |
| 92225 | 92270-10Y01 | バルブ アツセンブリ-,バイパス |
| 92682 | 92682-AM800 | Valve Assy-Control |
| 92682 | 92682-AM80A | Valve Assy-Control |
| OEM | Part name | Category |
|---|---|---|
| 11910-AM600 | Bracket-Compressor | Compressor (2004-08-01 ~ ; W) |
| 11916-4W011 | Bolt | Compressor (2004-08-01 ~ ; W) |
| 11916-4W013 | Bolt | Compressor (2004-08-01 ~ ; W) |
| 11916-4W01C | Bolt | Compressor (2004-08-01 ~ ; W) |
| 11916-AL500 | Bolt | Compressor (2004-08-01 ~ ; W) |
| 11916-AL50A | Bolt | Compressor (2004-08-01 ~ ; W) |
| 92270-10Y01 | バルブ アツセンブリ-,バイパス | Compressor (2004-08-01 ~ ; W) |
| 92600-AM800 | Compressor-Cooler | Compressor (2004-08-01 ~ ; W) |
| 92600-AM80A | Compressor-Cooler | Compressor (2004-08-01 ~ ; W) |
| 92610-AM800 | Compressor Unit | Compressor (2004-08-01 ~ ; W) |
| 92610-AM80A | Compressor Unit | Compressor (2004-08-01 ~ ; W) |
| 92660-AG000 | Clutch Assy-Compressor | Compressor (2004-08-01 ~ ; W) |
| 92682-AM800 | Valve Assy-Control | Compressor (2004-08-01 ~ ; W) |
| 92682-AM80A | Valve Assy-Control | Compressor (2004-08-01 ~ ; W) |
